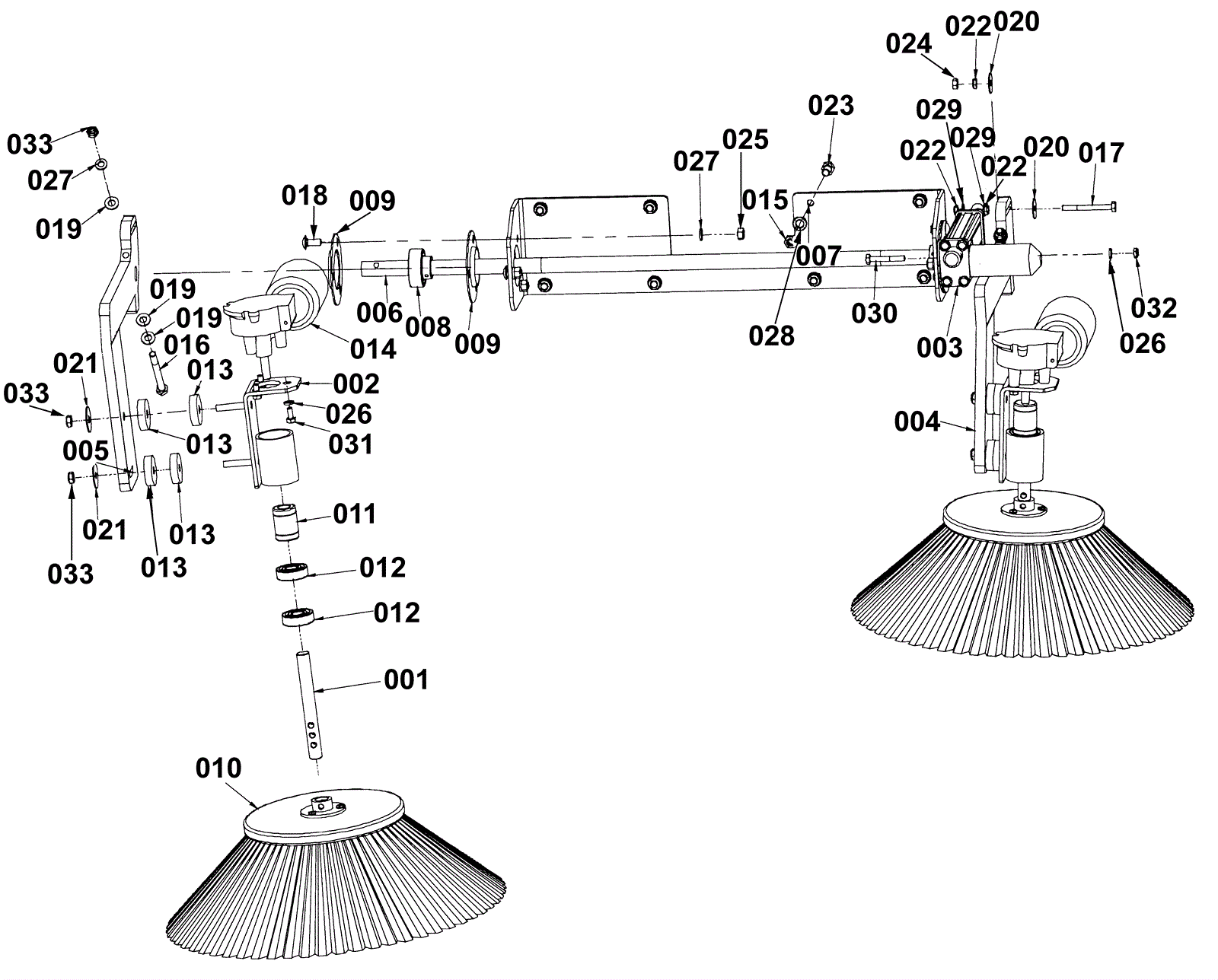

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-2137
|
Side broom drive shaft |
2 |
|
|
002 |
202-5215
|
Motor mount assembly |
2 |
|
|
003 |
202-2464
|
Actuator |
1 |
|
|
004 |
202-2465
|
Left side broom lifting arm |
1 |
|
|
005 |
202-2466
|
Right side broom lifting arm |
1 |
|
|
006 |
202-2467
|
Suspension axle shaft |
1 |
|
|
007 |
202-2468
|
Axle support bracket |
1 |
|
|
008 |
202-0142
|
Upper steering bearing |
2 |
|
|
009 |
202-0143
|
Bearing mount |
4 |
|
|
010 |
202-0440
|
Polypropylene fiber side brush |
2 |
|
|
011 |
202-2142
|
Drive coupling |
2 |
|
|
012 |
202-2143
|
Drive tube bearing |
4 |
|
|
013 |
202-0151
|
Grommet |
8 |
|
|
014 |
202-2469
|
Side broom motor (OBSOLETE) |
2 |
|
|
015 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
8 |
|
|
016 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
|
017 |
999-0258
|
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
1 |
|
|
018 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
6 |
|
|
019 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
020 |
999-0892
|
Washer 1/4 x 1 zinc plated fender |
2 |
|
|
021 |
999-1364
|
Washer 5/16 x 1 fender zinc finish |
4 |
|
|
022 |
999-0441
|
Nut 1/4-20 nylon lock jam zinc plated |
3 |
|
|
023 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
024 |
999-0609
|
Nut 1/4-20 hex stainless steel |
1 |
|
|
025 |
999-0593
|
Nut 5/16-18 hex stainless steel |
6 |
|
|
026 |
999-0632
|
Washer 1/4 split lock stainless steel |
7 |
|
|
027 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
8 |
|
|
028 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
8 |
|
|
029 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
2 |
|
|
030 |
999-0976
|
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
1 |
|
|
031 |
999-0978
|
Bolt M6-1 x 14mm hex head stainless steel |
6 |
|
|
032 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
|
033 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
