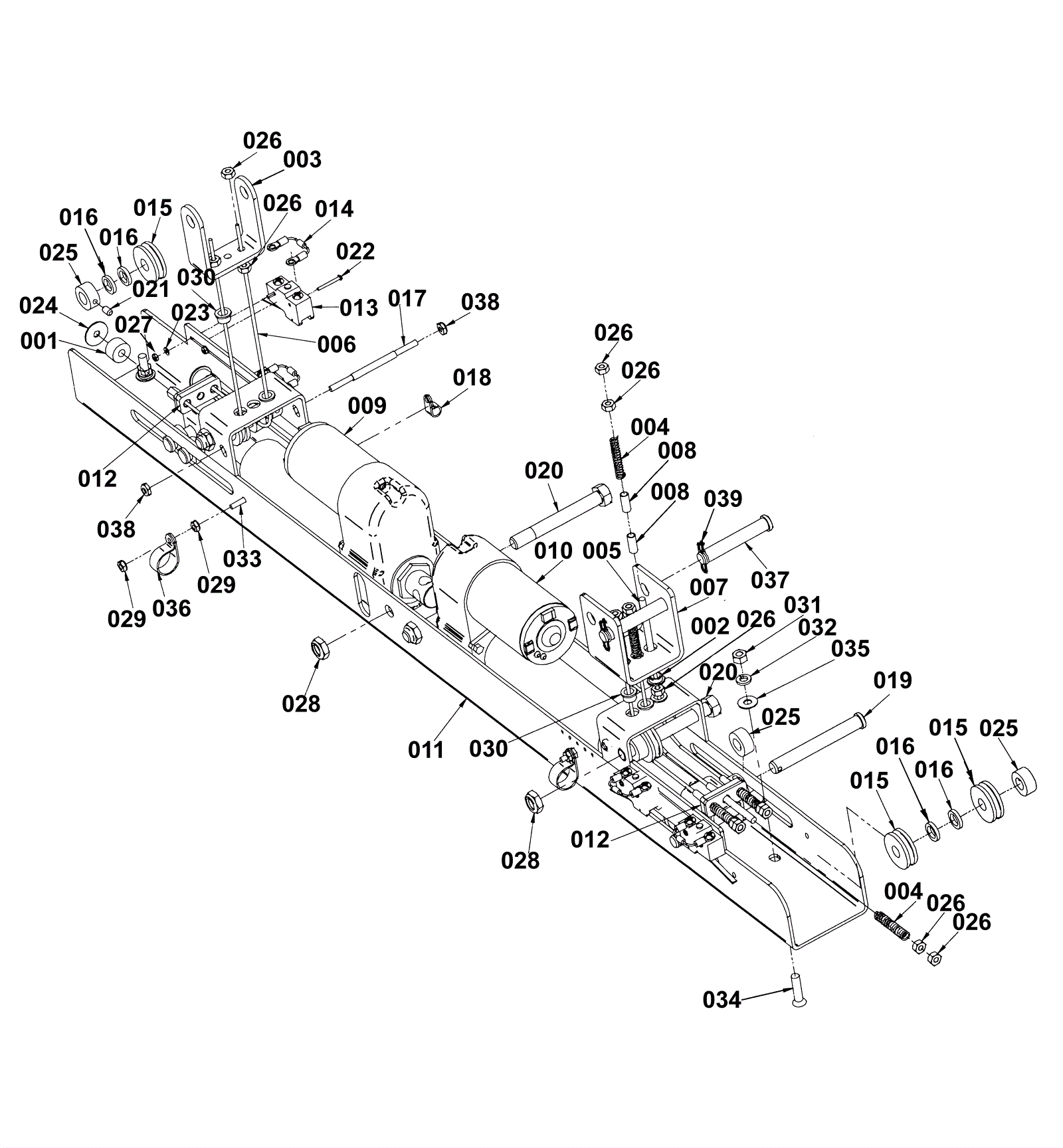

Actuator Slide Assembly - Before SN 390703

#PartDescription ReqNotesAvailability
001 202-0787 Polyurethane spring 2
002 202-1239 Flanged bearing 2
003 202-0783 Lifting bracket 1
004 202-0790 Compression spring 8
005a 202-0784 Scrub deck lifting cable 3
005b 202-2296 Sleeve bearing 3
006 202-0785 Squeegee lifting cable 2
007 202-2425 Lift bracket 1
008 202-2426 Spacer 4
009 202-2320 Actuator long barrel (OBSOLETE) 1
010 202-2428 Long barrel actuator 1
011 202-3037 Actuator pin update kit 1
012 202-2430 Cable trolley (OBSOLETE) 2
013 202-0192 Lift limit switch 4
014 202-0351 EMF suppression diode 4
015 202-0186 Nylon pulley 5
016 999-0988 Washer 1/2 x 1/8 thick nylon flat 8
017 999-0987 Stud 1/4-20 x 4 double ended stainless steel 2
018 202-2431 P clamp 1
019 202-2432 Clevis pin 4
020 999-0982 Bolt 1/2-13 x 4 hex head cap zinc plated 4
021 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish 13
022 999-0983 Screw 4-40 x 1 pan head phillips zinc plated 8
023 999-0985 Washer #4 SAE flat 8
024 999-0892 Washer 1/4 x 1 zinc plated fender 2
025 202-3222 Shaft collar with set screw 13
026 999-0651 Nut 1/4-28 hex stainless steel 19
027 999-0295 Nut 4-40 nylon insert lock stainless steel 8
028 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 4
029 999-0239 Nut 10-32 k-lock zinc plated 8
030 202-0789 Flanged bushing 5
031 999-0593 Nut 5/16-18 hex stainless steel 7
032 999-0553 Washer 5/16 medium split lock stainless steel 7
033 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel 4
034 999-1385 Screw 5/16-18 x 1 1/4 flat head phillips stainless steel 8
035 999-0964 Washer 5/16 x 3/4 flat stainless steel 7
036 202-0788 P clamp 3
037 202-5182 Clevis pin 2
038 999-0304 Nut 1/4-20 nylon lock jam stainless steel 4
039 202-2059 Cotter ring 2
