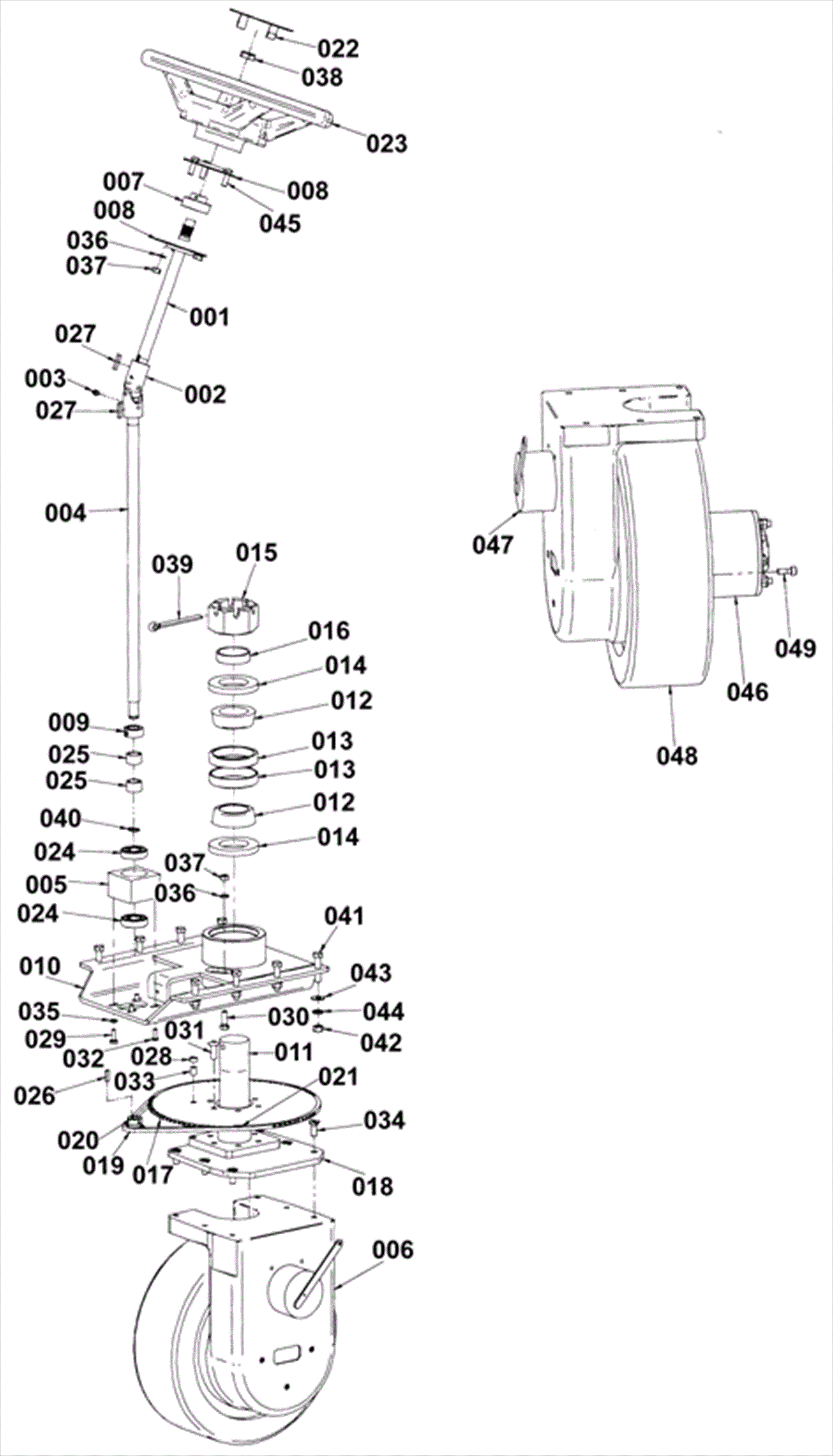

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0761
|
Upper steering shaft |
1 |
|
|
002 |
202-0760
|
U-joint |
1 |
|
|
003 |
202-2404
|
Fitting |
1 |
|
|
004 |
202-0762
|
Lower steering shaft (OBSOLETE) |
1 |
|
|
005 |
202-2405
|
Bearing block |
1 |
|
|
006 |
202-2406
|
Drive wheel assembly (OBSOLETE) |
1 |
|
|
007 |
202-0142
|
Upper steering bearing |
1 |
|
|
008 |
202-0143
|
Bearing mount |
2 |
|
|
009 |
202-2216
|
Shaft collar with set screw |
1 |
|
|
010 |
202-2314
|
Drop plate assembly (OBSOLETE) |
1 |
|
|
011 |
202-2317
|
Pivot shaft |
1 |
|
|
012 |
202-2318
|
Tapered roller bearing |
2 |
|
|
013 |
202-2319
|
Bearing cup |
2 |
|
|
014 |
202-2316
|
Bearing seal |
2 |
|
|
015 |
202-2409
|
Slotted nut |
1 |
|
|
016 |
202-2315
|
Sleeve |
1 |
|
|
017 |
202-2410
|
90 toothed steering sprocket |
1 |
|
|
018 |
202-2411
|
Pivot plate (OBSOLETE) |
1 |
|
|
019 |
202-2312
|
Steering chain (OBSOLETE) |
1 |
|
|
020 |
202-0280
|
10 toothed sprocket |
1 |
|
|
021 |
202-0283
|
Master link |
1 |
|
|
022 |
202-0773
|
Steering cover |
1 |
|
|
023 |
202-0772
|
Steering wheel |
1 |
|
|
024 |
202-0160
|
Bearing |
2 |
|
|
025 |
202-4079
|
Bearing |
2 |
|
|
026 |
164-1029
|
Square keyway |
1 |
|
|
027 |
202-0847
|
Square keyway |
2 |
|
|
028 |
202-0775
|
PVC tube |
1 |
|
|
029 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
030 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
|
031 |
999-1011
|
Screw 3/8-24 x 1 button head socket plain finish |
6 |
|
|
032 |
999-0435
|
Screw 1/4-20 x 5/8 socket head alloy plain finish |
2 |
|
|
033 |
202-1169
|
Clevis pin |
1 |
|
|
034 |
999-0992
|
Screw 3/8-16 x 1 flat head slotted zinc plated |
6 |
|
|
035 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
036 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
5 |
|
|
037 |
999-0069
|
Nut 5/16-18 hex |
5 |
|
|
038 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
039 |
997-2520
|
Cotter pin |
1 |
|
|
040 |
202-0281
|
Snap ring |
1 |
|
|
041 |
999-0857
|
Screw 3/8-24 x 1 3/4 hex head stainless steel |
8 |
|
|
042 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
8 |
|
|
043 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
8 |
|
|
044 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
8 |
|
|
045 |
999-1523
|
Bolt 5/16-18 x 1 button head socket zinc plated |
3 |
|
|
046 |
202-2413
|
36V 4HP motor |
1 |
|
|
047 |
202-2414
|
36V brake |
1 |
|
|
048 |
202-2415
|
Tire and wheel with hardware |
1 |
|
|
049 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
19 |
|
|
