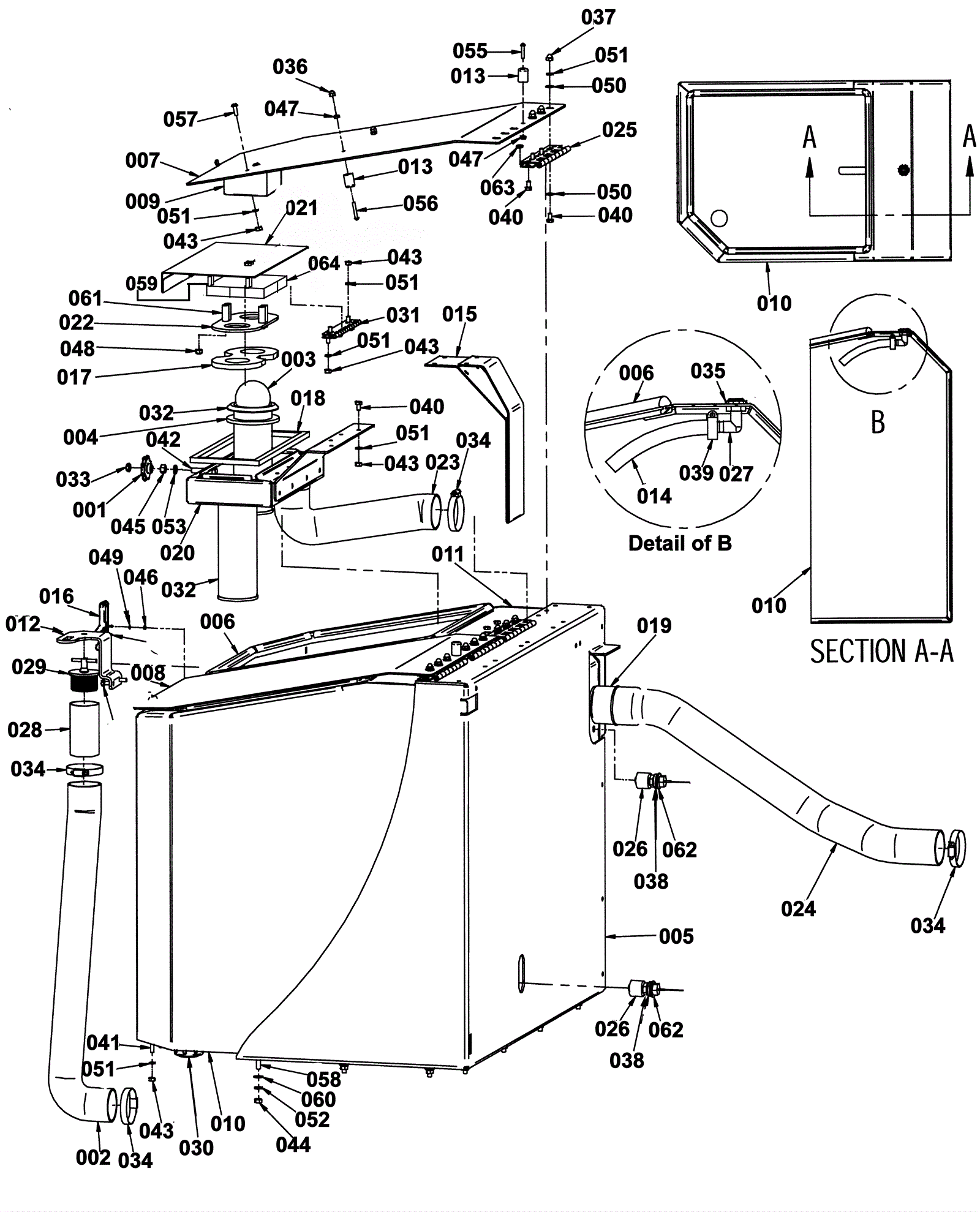

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
202-0809
|
Brass star knob |
1 |
|
|
002a |
202-0708
|
Drain hose |
1 |
|
|
002b |
991-2415
|
Drain hose |
1 |
(NON-OEM) |
|
003 |
202-0232
|
Float shut-off ball |
1 |
|
|
004 |
202-0230
|
Strainer gasket |
2 |
|
|
005 |
202-2384
|
Rear upright |
1 |
|
|
006 |
202-2385
|
67 inch push-on rubber gasket |
2 |
|
|
007 |
202-2386
|
Recovery tank lid (OBSOLETE) |
1 |
|
|
008 |
202-2387
|
Solution tank lid |
1 |
|
|
009 |
202-2388
|
Recovery tank lid |
1 |
|
|
010 |
202-2389
|
Solution tank |
1 |
|
|
011 |
202-2390
|
Recovery tank |
1 |
|
|
012 |
202-2391
|
Drain hose bracket |
1 |
|
|
013 |
202-2243
|
Bumper |
4 |
|
|
014 |
202-2358
|
Vinyl tubing 1/8 x 45 inch (clear) (OBSOLETE) |
1 |
|
|
015 |
202-2393
|
Tank strap |
1 |
|
|
016 |
202-1487
|
Latch |
2 |
|
|
017 |
202-2394
|
Vacuum screen lid gasket |
1 |
|
|
018 |
202-2395
|
Vacuum screen box gasket |
1 |
|
|
019 |
202-2396
|
2 1/2 inch hose cuff |
1 |
|
|
020 |
202-2397
|
Vacuum screen box |
1 |
|
|
021 |
202-2398
|
Vacuum screen box lid |
1 |
|
|
022 |
202-2399
|
Vacuum screen lid |
1 |
|
|
023 |
202-2400
|
17 inch flexible hose (black) |
1 |
|
|
024 |
202-2367
|
38 inch flexible hose (black) |
1 |
|
|
025 |
202-0403
|
Hinge |
4 |
|
|
026 |
202-1312
|
Float switch (includes nut and washer) |
2 |
|
|
027 |
202-0333
|
Elbow barb |
1 |
|
|
028 |
202-0238
|
Drain hose end tube (metal) |
1 |
|
|
029 |
202-0240
|
Drain hose plug |
1 |
|
|
030 |
202-0591
|
Solution tank bulkhead fitting |
1 |
|
|
031 |
202-0704
|
Hinge |
1 |
|
|
032 |
202-0231
|
Filter screen |
2 |
|
|
033 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
1 |
|
|
034 |
997-2003
|
Hose clamp |
5 |
|
|
035 |
999-0330
|
Nut 1/2-13 acorn brass |
1 |
|
|
036 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
2 |
|
|
037 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
12 |
|
|
038 |
202-2145
|
Washer 3/4 rubber |
2 |
|
|
039 |
202-2066
|
Hose clamp |
1 |
|
|
040 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
23 |
|
|
041 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
14 |
|
|
042 |
999-0857
|
Screw 3/8-24 x 1 3/4 hex head stainless steel |
1 |
|
|
043 |
999-0609
|
Nut 1/4-20 hex stainless steel |
23 |
|
|
044 |
999-0593
|
Nut 5/16-18 hex stainless steel |
10 |
|
|
045 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
1 |
|
|
046 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
047 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
048 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
049 |
999-1483
|
Washer #4 large stainless steel |
4 |
|
|
050 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
25 |
|
|
051 |
999-0632
|
Washer 1/4 split lock stainless steel |
35 |
|
|
052 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
10 |
|
|
053 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
055 |
999-0986
|
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
|
056 |
999-1005
|
Screw 10-32 x 1 1/4 button head socket stainless steel |
1 |
|
|
057 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
2 |
|
|
058 |
999-0918
|
Screw 5/16-18 x 1 flat head slotted brass |
10 |
|
|
059 |
999-0976
|
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
4 |
|
|
060 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
10 |
|
|
061 |
202-2402
|
Spacer |
4 |
|
|
062 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
063 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
|
064 |
202-1644
|
Vac box filter |
1 |
|
|
