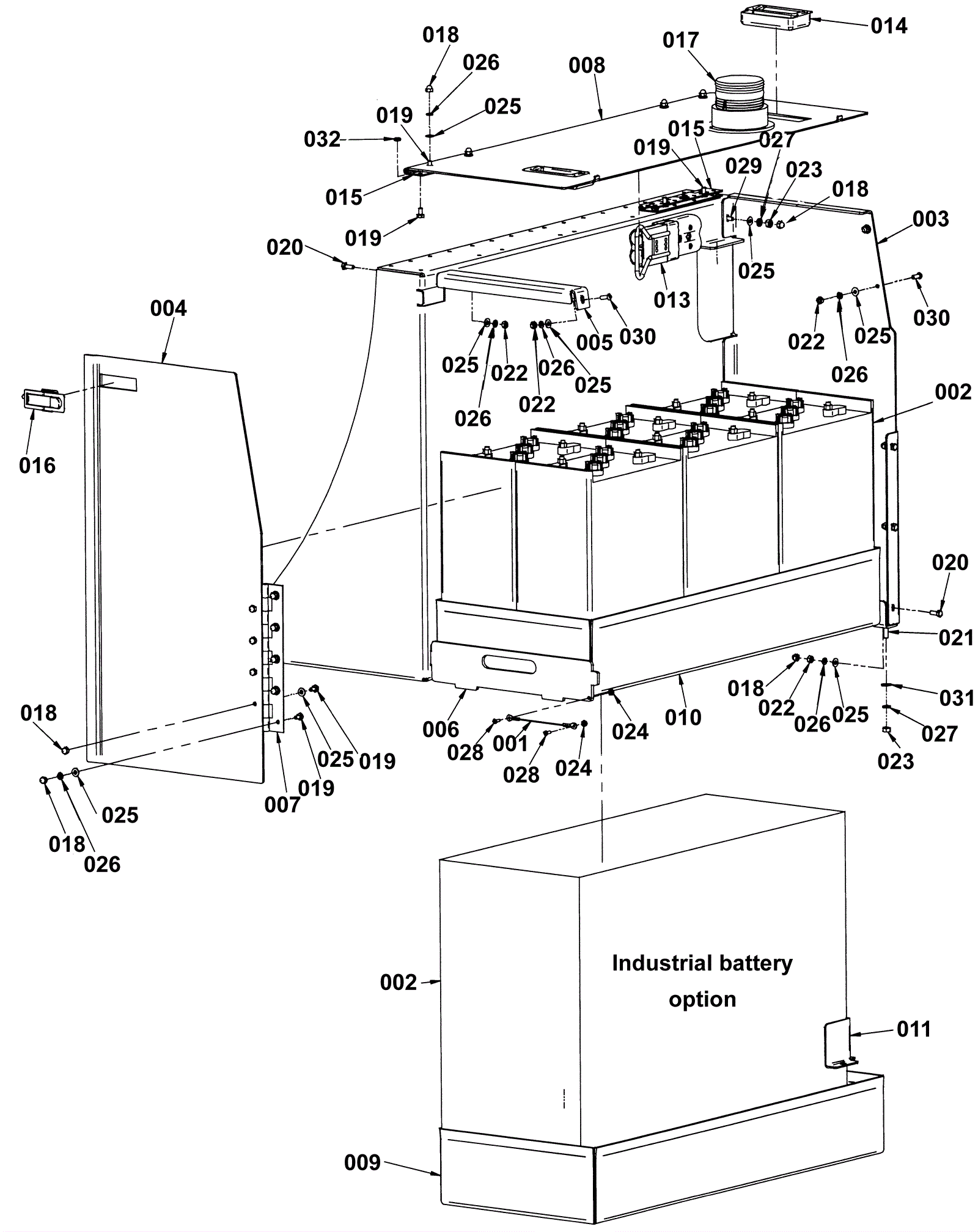

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0902
|
Lanyard |
1 |
|
|
002 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
6 |
|
|
003 |
202-2373
|
Left side panel |
1 |
|
|
004 |
202-2374
|
Lower right side panel |
1 |
|
|
005 |
202-2375
|
Upper right side panel |
1 |
|
|
006 |
202-2376
|
Battery holding bar |
1 |
|
|
007 |
202-2377
|
11 inch hinge |
1 |
|
|
008 |
202-2378
|
Battery lid |
1 |
|
|
009 |
202-2379
|
Mounted battery tray |
1 |
(industrial option) |
|
010 |
202-2380
|
Removable battery tray |
1 |
|
|
011 |
202-2381
|
Battery bracket |
1 |
(industrial option) |
|
013 |
202-2383
|
Battery quick disconnect |
1 |
|
|
014 |
202-0308
|
Handle |
2 |
|
|
015 |
202-0403
|
Hinge |
2 |
|
|
016 |
202-0404
|
Latch |
1 |
|
|
017a |
202-0383
|
Strobe light |
1 |
(includes 017b) |
|
017b |
202-2872
|
Light bulb |
1 |
|
|
018 |
999-0429
|
Nut 1/4-20 acorn nickel plated |
20 |
|
|
019 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
17 |
|
|
020 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
021 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
3 |
|
|
022 |
999-0609
|
Nut 1/4-20 hex stainless steel |
7 |
|
|
023 |
999-0593
|
Nut 5/16-18 hex stainless steel |
7 |
|
|
024 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
025 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
22 |
|
|
026 |
999-0632
|
Washer 1/4 split lock stainless steel |
16 |
|
|
027 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
7 |
|
|
028 |
999-0074
|
Screw 10-32 x 1/2 round head slotted zinc plated |
2 |
|
|
029 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
4 |
|
|
030 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
3 |
|
|
031 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
5 |
|
|
032 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
