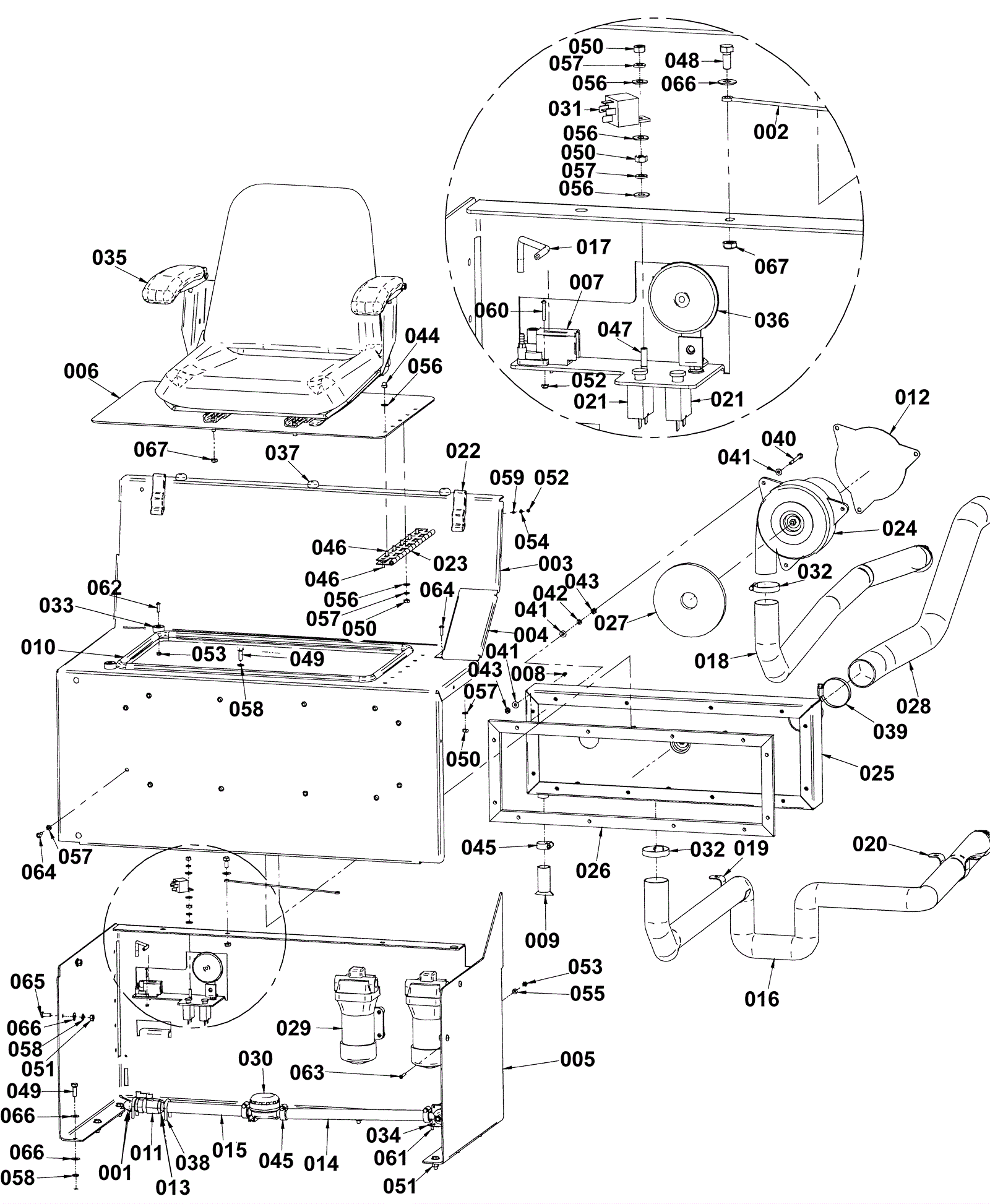

390 Seat Assembly

#PartDescriptionPriceReqNotesAvailability
001 202-0884 Barbed elbow $4.95 1 usually ships 3-11 days
002 202-0875 Tank cable $29.81 1 usually ships 1-5 days
003 202-2347 Seat pedestal $183.37 1 usually ships 1-5 days
004 202-2348 Cover $187.22 1 usually ships 1-5 days
005 202-2349 Front upright $267.19 1 usually ships 1-5 days
006 202-2350 Seat lid $91.41 1 usually ships 1-5 days
007 202-1908 Vacuum shut-off switch $80.52 1 usually ships 3-11 days
008 202-1919 Barbed fitting $5.50 1 usually ships 3-11 days
009 202-1916 Unloader valve $52.80 1 usually ships 3-11 days
010 202-2385 67 inch push-on rubber gasket $32.56 1 usually ships 3-11 days
011 202-2352 Ball valve (OBSOLETE) Call for price 1 usually ships 1-5 days
012 202-2353 Vacuum cover box $23.65 1 usually ships 1-5 days
013 202-2354 Barb 3/4 x 3/4 inch $7.04 1 usually ships 1-5 days
014 202-2355 Vinyl tubing 5/8 x 15 inch (clear) (OBSOLETE) $4.62 1 usually ships 1-5 days
015 202-2356 Vinyl tubing 5/8 x 8 inch (clear) $12.87 1 usually ships 1-5 days
016 202-2357 98 inch flexible hose (gray) $84.59 1 usually ships 1-5 days
017 202-2358 Vinyl tubing 1/8 x 45 inch (clear) (OBSOLETE) $4.62 1 usually ships 1-5 days
018 202-2359 72 inch flexible hose (gray) $175.56 1 usually ships 1-5 days
019 202-2360 1 1/2 inch pipe strap $4.40 3 usually ships 1-5 days
020 202-2361 2 1/2 inch pipe strap $4.40 3 usually ships 1-5 days
021 202-2242 30amp fuse $39.71 2 usually ships 3-11 days
022 202-1487 Latch $25.19 2 usually ships 3-11 days
023 202-2363 Hinge $66.77 1 usually ships 1-5 days
024a 202-2281 36V vacuum motor $822.58 2 (Tomcat) usually ships 3-11 days
024b 991-1202 36V 3 stage vacuum motor tangential $109.34 1 (NON-OEM) ships same day
025 202-2364 Vacuum box (OBSOLETE) $490.88 1 usually ships 1-5 days
026 202-2365 Vacuum box gasket $65.23 1 usually ships 1-5 days
027 202-2366 Vacuum motor gasket $27.06 2 usually ships 1-5 days
028 202-2367 38 inch flexible hose (black) $114.84 1 usually ships 3-11 days
029 202-2368 36V water jet pump $933.46 2 usually ships 3-11 days
030 202-1882 Inline filter $72.60 1 usually ships 3-11 days
031 202-0348 15amp relay $12.76 1 ships same day
032 997-2011 Hose clamp $2.67 4 ships same day
033 202-3275 Rubber bumper $5.50 2 usually ships 3-11 days
034 202-0208 Adjustable solution flow valve $276.98 1 usually ships 3-11 days
035 202-0081 Seat with switch, cover, locking track and mounting $740.52 1 usually ships 3-11 days
036 202-0380 Horn $126.06 1 usually ships 3-11 days
037 202-3543 10-24 x 1 threaded stud $6.71 3 ships same day
038 202-1120 U bolt 1/4-20 x 1 3/4 $9.90 2 usually ships 1-5 days
039 997-2003 Hose clamp $2.66 1 ships same day
040 999-0683 Bolt 1/4-20 x 3 hex head grade 5 zinc plated $1.05 6 ships same day
041 999-0123 Washer 1/4 SAE flat zinc plated $0.99 18 ships same day
042 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
043 999-0190 Nut 1/4-20 hex plain finish $0.99 12 ships same day
044 999-0429 Nut 1/4-20 acorn nickel plated $0.99 5 ships same day
045 202-2066 Hose clamp $9.68 4 usually ships 3-11 days
046 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 11 ships same day
047 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
048 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 13 ships same day
049 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 16 ships same day
050 999-0609 Nut 1/4-20 hex stainless steel $0.99 12 ships same day
051 999-0429 Nut 1/4-20 acorn nickel plated $0.99 14 ships same day
052 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 6 ships same day
053 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 13 ships same day
054 999-1483 Washer #4 large stainless steel $0.99 4 usually ships 1-5 days
055 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
056 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 16 ships same day
057 999-0632 Washer 1/4 split lock stainless steel $0.99 24 ships same day
058 999-0553 Washer 5/16 medium split lock stainless steel $0.99 32 ships same day
059 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
060 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
061 999-0074 Screw 10-32 x 1/2 round head slotted zinc plated $0.99 2 ships same day
062 999-1085 Screw M5-.8 x 30mm pan head phillips zinc plated $0.99 2 ships same day
063 999-1005 Screw 10-32 x 1 1/4 button head socket stainless steel $0.99 8 usually ships 1-5 days
064 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 14 ships same day
065 202-2312 Steering chain $70.29 4 usually ships 1-5 days
066 999-0964 Washer 5/16 x 3/4 flat stainless steel $0.99 31 ships same day
067 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
