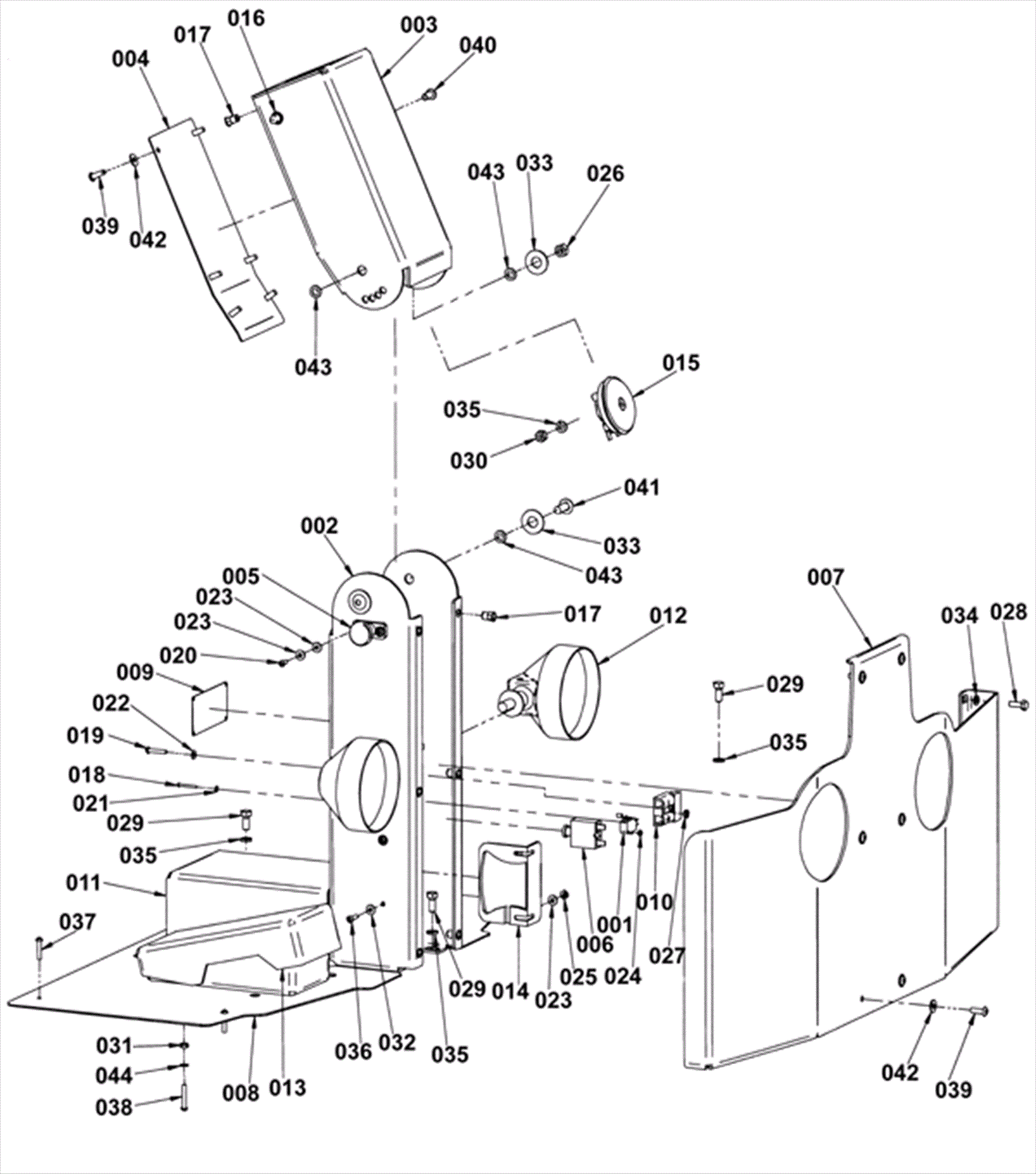

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
202-0721
|
Microswitch |
$15.73
|
1 |
|
usually ships 3-11 days |
002 |
202-0714
|
Lower steering column (red) |
$205.37
|
1 |
|
usually ships 1-5 days |
003 |
202-0715
|
Upper steering column (red) |
$152.99
|
1 |
|
usually ships 3-11 days |
004 |
202-0716
|
Pedestal cover (red) |
$30.47
|
1 |
|
usually ships 1-5 days |
005 |
202-0719
|
Index plunger |
$70.07
|
1 |
|
usually ships 3-11 days |
006 |
202-1338
|
50amp resettable circuit breaker |
$84.92
|
1 |
|
usually ships 3-11 days |
007 |
202-2342
|
Front apron |
$128.26
|
1 |
|
usually ships 1-5 days |
008 |
202-2344
|
Non-skid floor plate |
$190.52
|
1 |
|
usually ships 1-5 days |
009 |
202-0720
|
Serial number plate |
$4.68
|
1 |
|
usually ships 1-5 days |
010 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
$16.09
|
1 |
|
ships same day |
011 |
202-2345
|
Drive cover |
$52.80
|
1 |
|
usually ships 1-5 days |
012 |
202-2010
|
48V headlight |
$194.92
|
2 |
|
usually ships 3-11 days |
013 |
202-0362
|
Foot pedal assembly (includes potentiometer) |
$657.18
|
1 |
|
usually ships 3-11 days |
014 |
202-0385
|
Backup alarm |
$96.03
|
1 |
|
usually ships 1-5 days |
015 |
202-0380
|
Horn |
$126.06
|
1 |
|
usually ships 3-11 days |
016 |
202-0381
|
Horn button |
$34.65
|
1 |
|
usually ships 3-11 days |
017 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
7 |
|
ships same day |
018 |
999-1002
|
Screw 4-40 x 1 round head phillips zinc plated |
$0.99
|
1 |
|
ships same day |
019 |
999-0995
|
Screw 8-32 x 1 round head phillips zinc plated |
$0.99
|
1 |
|
ships same day |
020 |
999-0997
|
Screw 10-32 x 1/2 round head phillips zinc plated |
$0.99
|
1 |
|
ships same day |
021 |
999-0985
|
Washer #4 SAE flat |
$0.99
|
1 |
|
ships same day |
022 |
999-0266
|
Washer #8 SAE flat stainless steel |
$0.99
|
1 |
|
ships same day |
023 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
6 |
|
ships same day |
024 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
025 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
026 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
027 |
999-0077
|
Nut 8-32 k-lock zinc plated |
$0.99
|
2 |
|
ships same day |
028 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
1 |
|
ships same day |
029 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
3 |
|
ships same day |
030 |
999-0593
|
Nut 5/16-18 hex stainless steel |
$0.99
|
1 |
|
ships same day |
031 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
032 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
2 |
|
ships same day |
033 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
$0.99
|
3 |
|
ships same day |
034 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
1 |
|
ships same day |
035 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
4 |
|
ships same day |
036 |
999-1008
|
Screw 10-32 x 3/4 round head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
037 |
999-0986
|
Screw 10-32 x 1 round pan head stainless steel |
$5.50
|
3 |
|
ships same day |
038 |
999-0986
|
Screw 10-32 x 1 round pan head stainless steel |
$5.50
|
1 |
|
ships same day |
039 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
$0.99
|
12 |
|
ships same day |
040 |
999-1524
|
Screw 5/16-18 x 3/4 button head socket stainless steel |
$1.67
|
1 |
|
ships same day |
041 |
999-1003
|
Bolt 3/8-16 x 1 button head socket cap stainless steel |
$2.06
|
2 |
|
ships same day |
042 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
$0.99
|
8 |
|
ships same day |
043 |
999-1007
|
Washer 3/8 x 1/16 flat nylon |
$0.99
|
3 |
|
ships same day |
044 |
999-1004
|
Washer #10 .218 x .437 flat stainless steel |
$0.99
|
1 |
|
usually ships 1-5 days |
