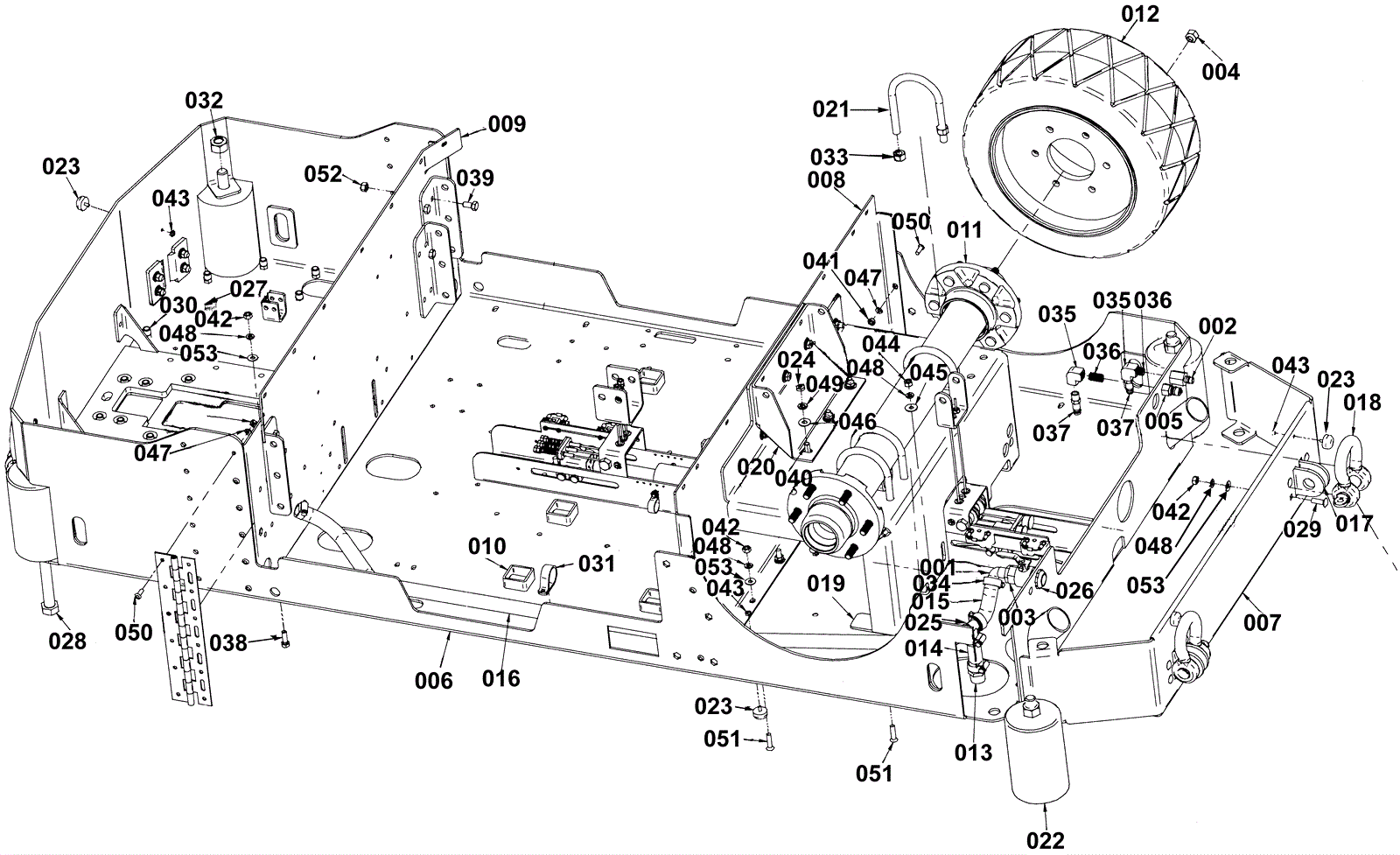

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
202-0884
|
Barbed elbow |
1 |
|
|
002 |
202-1231
|
Male coupling |
1 |
|
|
003 |
202-0684
|
Ball valve |
1 |
|
|
004 |
202-1153
|
Nut 1/2-20 lug |
12 |
|
|
005 |
202-1377
|
Quick disconnect |
1 |
|
|
006 |
202-2321
|
Chassis |
1 |
|
|
007 |
202-2322
|
Rear bumper |
1 |
|
|
008 |
202-2323
|
Rear splash guard |
1 |
|
|
009 |
202-2324
|
Front splash guard |
1 |
|
|
010 |
202-2325
|
Battery roller (OBSOLETE) |
8 |
|
|
011 |
202-2326
|
Rear axle |
1 |
|
|
012a |
202-2327
|
Rear wheel (black) |
2 |
|
|
012b |
202-2327
|
Rear wheel (black) |
2 |
|
|
013 |
202-2354
|
Barb 3/4 x 3/4 inch |
1 |
|
|
014 |
202-2330
|
Vinyl tubing 3/4 x 3 inch (clear) |
1 |
|
|
015 |
202-2331
|
Vinyl tubing 3/4 x 3 1/2 inch (clear) |
1 |
|
|
016 |
202-2332
|
Vinyl tubing 3/4 x 46 inch (clear) (OBSOLETE) |
1 |
|
|
017 |
202-2333
|
Shackle bracket |
8 |
|
|
018 |
202-2334
|
Anchor shackle |
4 |
|
|
019 |
202-2335
|
Axle mount |
1 |
|
|
020 |
202-2336
|
Squeegee drag brace |
1 |
|
|
021 |
202-2337
|
U bolt 1/2-20 x 60 (OBSOLETE) |
4 |
|
|
022 |
202-0416
|
Guide roller |
4 |
|
|
023 |
202-3543
|
10-24 x 1 threaded stud |
8 |
|
|
024 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
10 |
|
|
025 |
202-1936
|
Barbed tee |
1 |
|
|
026 |
999-1522
|
Nut 3/4-14 lock stainless steel |
1 |
|
|
027 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
028 |
999-1510
|
Bolt 3/4-10 x 8 1/2 hex head zinc plated |
4 |
|
|
029 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
16 |
|
|
030 |
999-0069
|
Nut 5/16-18 hex |
23 |
|
|
031 |
202-0846
|
Rubber loop clamp |
2 |
|
|
032 |
999-1001
|
Nut 3/4-10 nylon insert lock zinc plated |
4 |
|
|
033 |
999-0842
|
Nut 1/2-20 nylon insert lock zinc plated |
8 |
|
|
034 |
202-2066
|
Hose clamp |
4 |
|
|
035 |
202-2339
|
90 degree brass elbow |
2 |
|
|
036 |
202-2340
|
Hosebarb 1/4 x 1/2 inch |
2 |
|
|
037 |
202-2341
|
Hosebarb 1/4 x 1/2 inch |
2 |
|
|
038 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
6 |
|
|
039 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
040 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
12 |
|
|
041 |
999-0609
|
Nut 1/4-20 hex stainless steel |
20 |
|
|
042 |
999-0593
|
Nut 5/16-18 hex stainless steel |
26 |
|
|
043 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
8 |
|
|
044 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
045 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
046 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
10 |
|
|
047 |
999-0632
|
Washer 1/4 split lock stainless steel |
20 |
|
|
048 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
32 |
|
|
049 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
12 |
|
|
050 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
16 |
|
|
051 |
999-1385
|
Screw 5/16-18 x 1 1/4 flat head phillips stainless steel |
10 |
|
|
052 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
10 |
|
|
053 |
999-0964
|
Washer 5/16 x 3/4 flat stainless steel |
28 |
|
|
