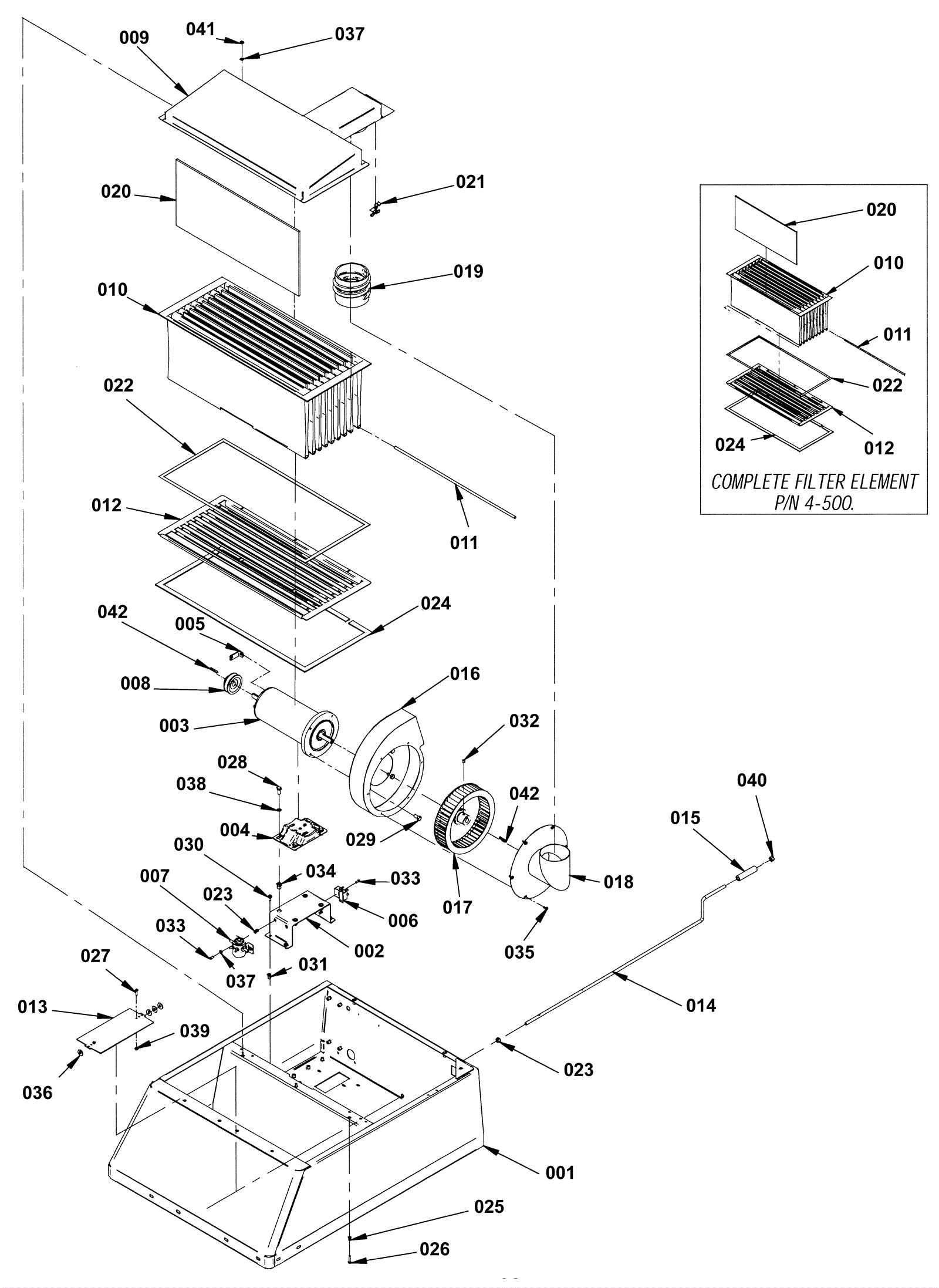

3300 Air System Assembly

#PartDescriptionPriceReqNotesAvailability
001 202-2673 Main body $1,890.35 1 usually ships 1-5 days
002 202-2689 Motor support bracket $69.85 1 usually ships 1-5 days
003 202-2690 12V twin shaft motor $795.19 1 usually ships 8-13 days
004 202-2691 Motor cradle $57.97 1 usually ships 8-13 days
005 202-2692 Terminal clip $19.80 1 usually ships 8-13 days
007 202-2694 12V solenoid $113.74 1 usually ships 8-13 days
008 202-2695 Main drive pulley $54.78 1 usually ships 8-13 days
009 202-2696 Filter hood $303.12 1 usually ships 8-13 days
010 202-5042 Filter with tape seal kit $280.50 1 usually ships 8-13 days
011 202-2619 Filter weight rod $115.72 9 ships same day
012 202-2697 Filter grill $204.05 1 ships same day
013 202-2698 Filter beater bar $66.66 1 usually ships 8-13 days
014 202-2699 Beater bar $135.08 1 usually ships 1-5 days
015 202-2700 Beater bar handle $13.42 1 usually ships 8-13 days
016 202-2661 Blower housing $242.77 1 usually ships 8-13 days
017 202-2662 Blower wheel $288.42 1 usually ships 8-13 days
018 202-2701 Blower door $146.96 1 usually ships 1-5 days
019 202-2702 Blower hose $44.11 1 usually ships 8-13 days
020 202-2703 Filter seperator (pkg of 9) $86.57 9 usually ships 8-13 days
021 202-2606 Door latch $18.81 1 usually ships 8-13 days
022 202-2624 1/2 double sided tape $44.55 1 usually ships 8-13 days
023 202-0789 Flanged bushing $7.04 1 usually ships 8-13 days
024 202-2706 3/16 inch PVC foam (OBSOLETE) $4.49 1 usually ships 1-5 days
025 999-0460 Nut 10-32 hex $0.99 15 ships same day
026 202-2707 Screw 10-32 x 1 inch hex machine (OBSOLETE) Call for price 1 usually ships 1-5 days
027 202-1085 10-32 x 3/4 Round Pan Head $5.50 1 usually ships 8-13 days
028 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
029 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish $0.99 1 ships same day
030 202-2687 Bolt 1/4-20 x 1/2 case hardened zinc flange $7.04 1 usually ships 1-5 days
031 999-0190 Nut 1/4-20 hex plain finish $0.99 50 ships same day
032 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish $0.99 1 ships same day
033 999-0997 Screw 10-32 x 1/2 round head phillips zinc plated $0.99 2 ships same day
034 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
035 202-1985 Screw 10 x 1/2 hex washer head $4.40 1 usually ships 1-5 days
036 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
037 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
038 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
039 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
040 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
041 202-2067 Nut 10-32 keps $5.50 1 usually ships 8-13 days
042 202-0140 Steering shaft key $5.50 2 usually ships 8-13 days
