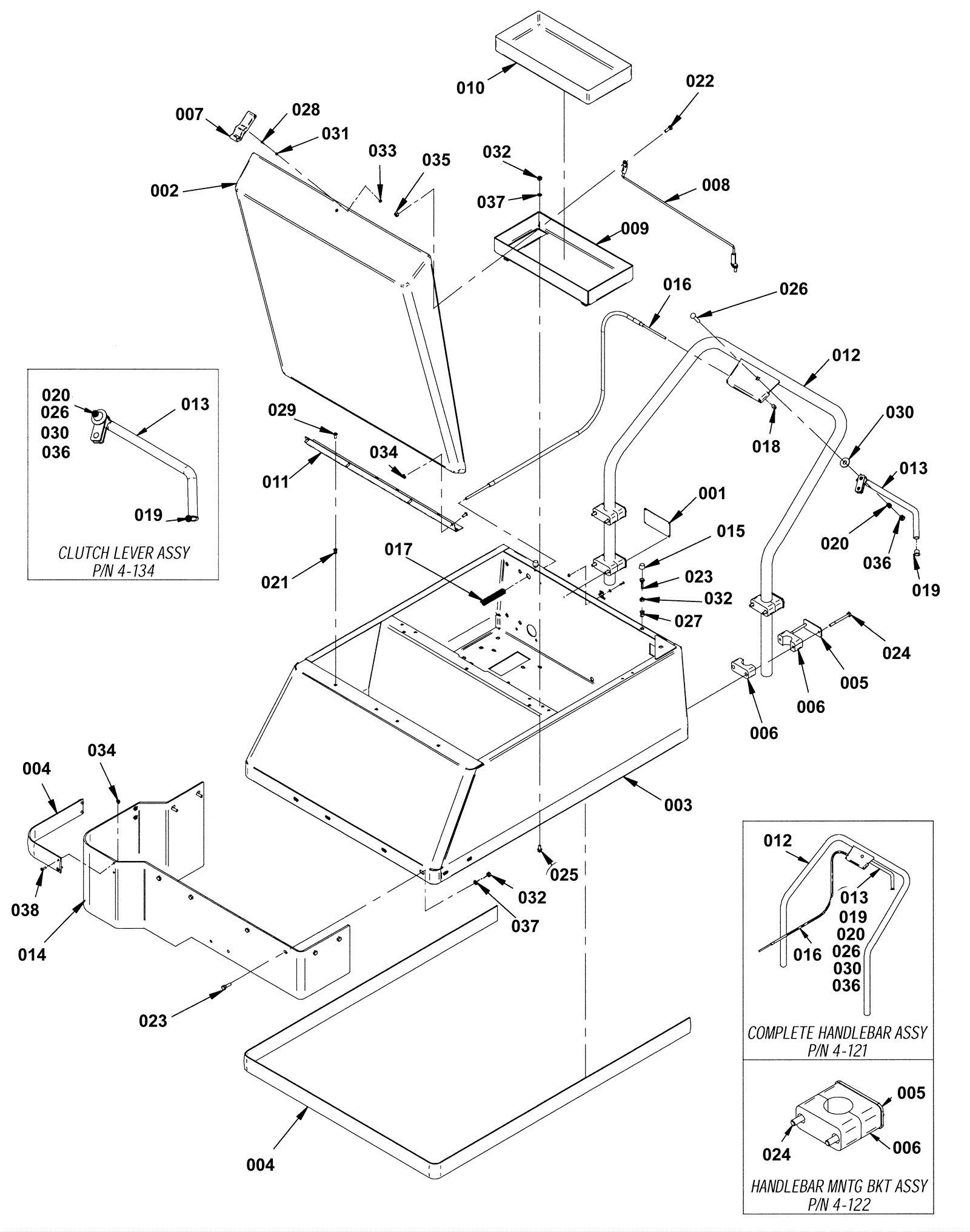

3300 Upper Body Assembly

#PartDescriptionPriceReqNotesAvailability
001 202-0720 Serial number plate $4.68 1 usually ships 1-5 days
001 202-0873 Serial number plate $5.50 1 usually ships 1-5 days
002 202-2672 Hood $885.28 1 usually ships 1-5 days
003 202-2673 Main body $1,817.64 1 usually ships 1-5 days
004 202-2152 2 in bumper strip with adhesive backing $65.67 4 usually ships 8-12 days
005 202-2674 Handlebar mounting bracket w/ bolts $6.71 8 usually ships 1-5 days
006 202-5307 Handlebar mounting bracket $28.82 1 usually ships 8-12 days
007 202-1487 Latch $25.19 1 usually ships 8-12 days
008 202-2022 Hood cable $27.39 1 usually ships 8-12 days
009 202-5315 Battery tray $241.45 1 ships same day
010 202-5315 Battery tray $241.45 1 ships same day
011 202-0448 Hood hinge $45.21 1 usually ships 1-5 days
012 202-2678 Handle bar weldment $491.15 1 usually ships 8-12 days
013 202-5305 Clutch lever $130.35 1 usually ships 1-5 days
014 202-2680 Bumper $299.75 2 usually ships 8-12 days
015 202-2681 Rubber hood stop $21.56 1 usually ships 8-12 days
016 202-2682 Clutch/brake cable $225.39 1 usually ships 1-5 days
017 202-2683 Clutch cable return spring $6.71 1 usually ships 8-12 days
018 202-2684 Clutch cable nut $20.79 1 usually ships 1-5 days
019 202-2685 Tube plug $6.71 1 usually ships 1-5 days
020 202-2686 Clutch tension spring $13.20 1 usually ships 1-5 days
021 999-0460 Nut 10-32 hex $0.99 7 ships same day
022 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
023 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 10 ships same day
024 999-0683 Bolt 1/4-20 x 3 hex head grade 5 zinc plated $1.05 8 ships same day
025 202-2687 Bolt 1/4-20 x 1/2 case hardened zinc flange $6.71 4 usually ships 1-5 days
026 202-2688 Bolt 5/16 inch - 18 x 1/ 1/2 (OBSOLETE) $4.62 1 usually ships 1-5 days
027 999-0190 Nut 1/4-20 hex plain finish $0.99 50 ships same day
028 999-0983 Screw 4-40 x 1 pan head phillips zinc plated $0.99 4 ships same day
029 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 8 ships same day
030 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
031 999-0985 Washer #4 SAE flat $0.99 4 ships same day
032 999-0190 Nut 1/4-20 hex plain finish $0.99 14 ships same day
033 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 4 ships same day
034 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
035 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
036 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
037 999-0632 Washer 1/4 split lock stainless steel $0.99 12 ships same day
038 202-1205 Screw 10-32 x 5/8 flat head phillips machine stainless steel $5.50 4 usually ships 1-5 days
