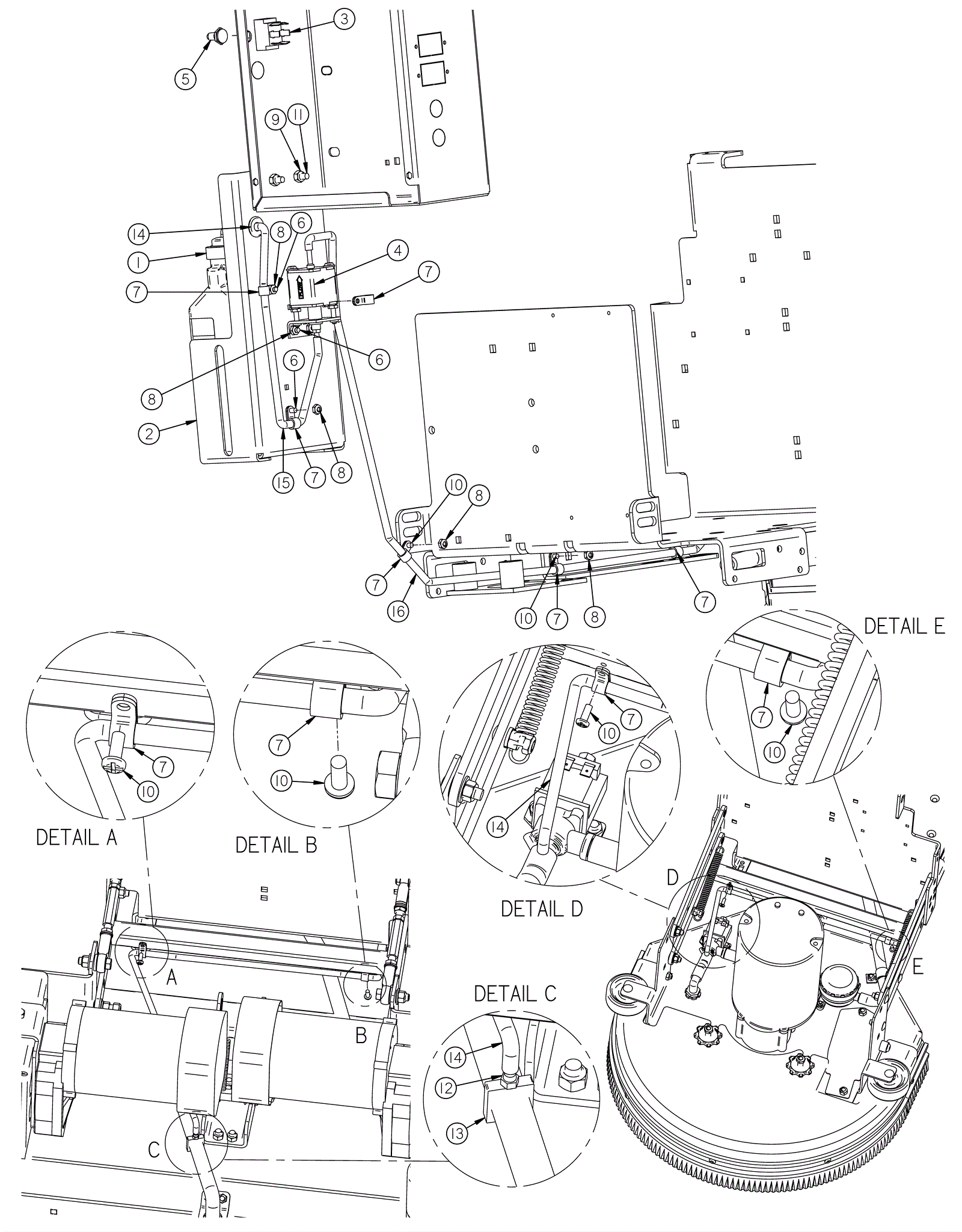

MINI MAG SUDS Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-3347 Soap jug cap $26.50 1 usually ships 3-10 days
2 202-3502 Soap tray $107.30 1 usually ships 1-5 days
3 202-3340 Toggle switch $27.90 1 usually ships 3-10 days
4 202-3503 24V soap pump $874.00 1 usually ships 1-5 days
5 202-1866 Toggle switch protective boot (green) $12.00 1 usually ships 3-10 days
6 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel $5.00 5 usually ships 3-10 days
7 202-2431 P clamp $5.00 8 usually ships 1-5 days
8 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 8 ships same day
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
10 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.90 5 ships same day
11 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.36 2 ships same day
12 202-3343 Barbed fitting $21.40 1 usually ships 1-5 days
13 202-3343 Barbed fitting $21.40 1 usually ships 1-5 days
14 202-3348 Rubber grommet $4.00 1 usually ships 3-10 days
15 202-3504 Hose 3/16 x 20 inch $10.76 1 usually ships 3-10 days
16 202-3505 Hose 3/16 x 72 inch $56.50 1 usually ships 1-5 days
