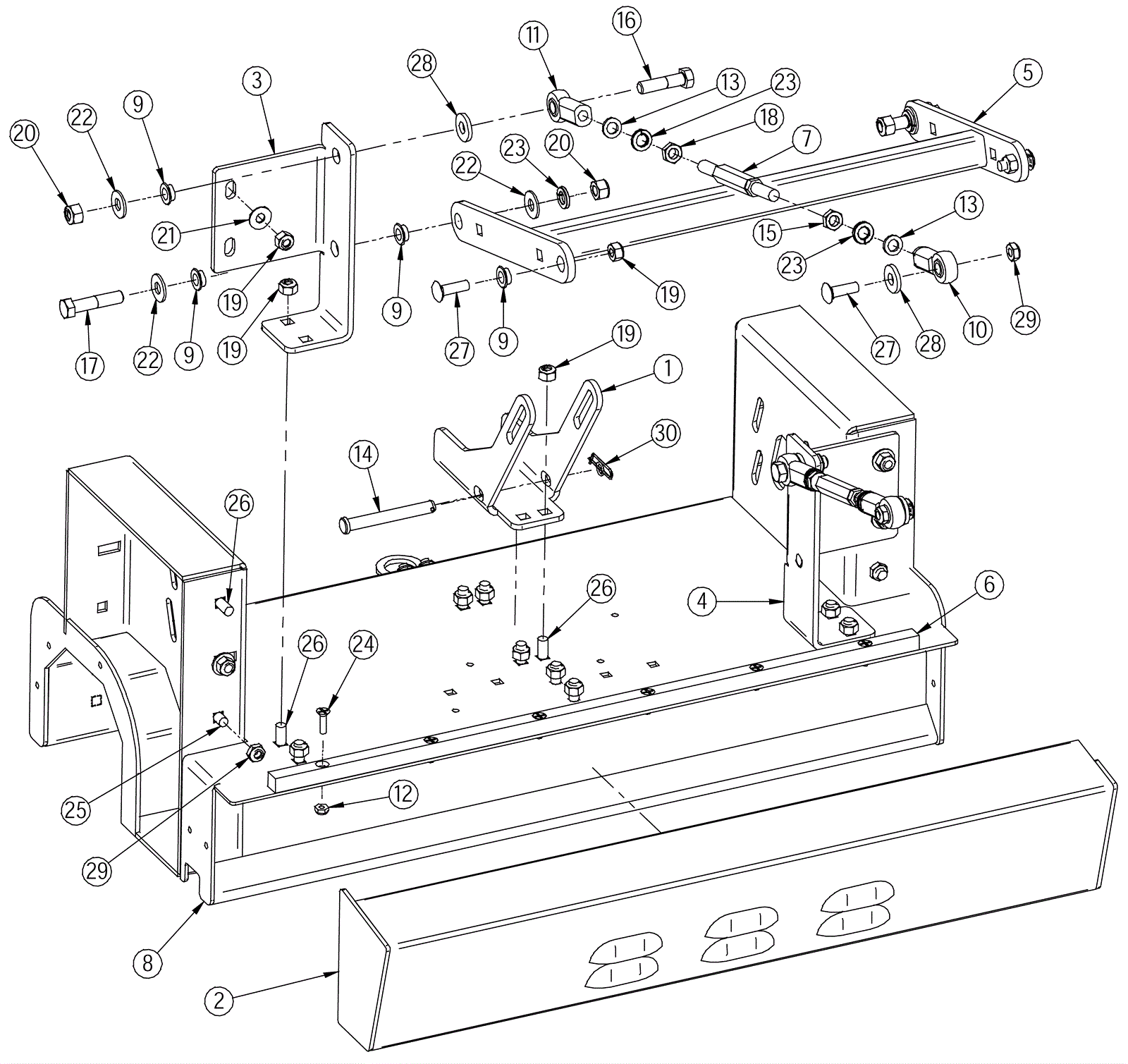

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5029
|
Lifting bracket |
1 |
|
|
2 |
202-5030
|
24 inch hopper |
1 |
|
|
3 |
202-5031
|
24 inch left lifting bracket |
1 |
|
|
4 |
202-5032
|
24 inch right lifting bracket |
1 |
|
|
5 |
202-5033
|
Lateral arm |
1 |
|
|
6 |
202-1275
|
24 inch hopper rail |
1 |
|
|
7 |
202-4017
|
Rod connector |
2 |
|
|
8 |
202-5027
|
24 inch cylindrical scrub deck |
1 |
|
|
9 |
202-1239
|
Flanged bearing |
8 |
|
|
10 |
202-3085
|
Left thread rod end |
2 |
|
|
11 |
202-3086
|
Right thread rod end |
2 |
|
|
12 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
8 |
|
|
13 |
202-3096
|
Shim |
4 |
|
|
14 |
202-4142
|
Clevis pin 3/8 x 3 inch |
1 |
|
|
15 |
202-3098
|
Nut hex jam left hand thread |
2 |
|
|
16 |
999-1489
|
Screw 3/8-16 x 1 1/2 hex head stainless steel |
2 |
|
|
17 |
999-1006
|
Screw 3/8-16 x 1 3/4 hex head stainless steel |
2 |
|
|
18 |
202-3099
|
Nut |
2 |
|
|
19 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
11 |
|
|
20 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
4 |
|
|
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
22 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
6 |
|
|
23 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
24 |
999-1189
|
Screw 10-32 x 3/4 flat head phillips stainless steel |
6 |
|
|
25 |
999-1575
|
Bolt 5/16-18 x 1/2 carriage head zinc plated |
2 |
|
|
26 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
10 |
|
|
27 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
28 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
29 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
30 |
202-2036
|
Cotter pin |
1 |
|
|
