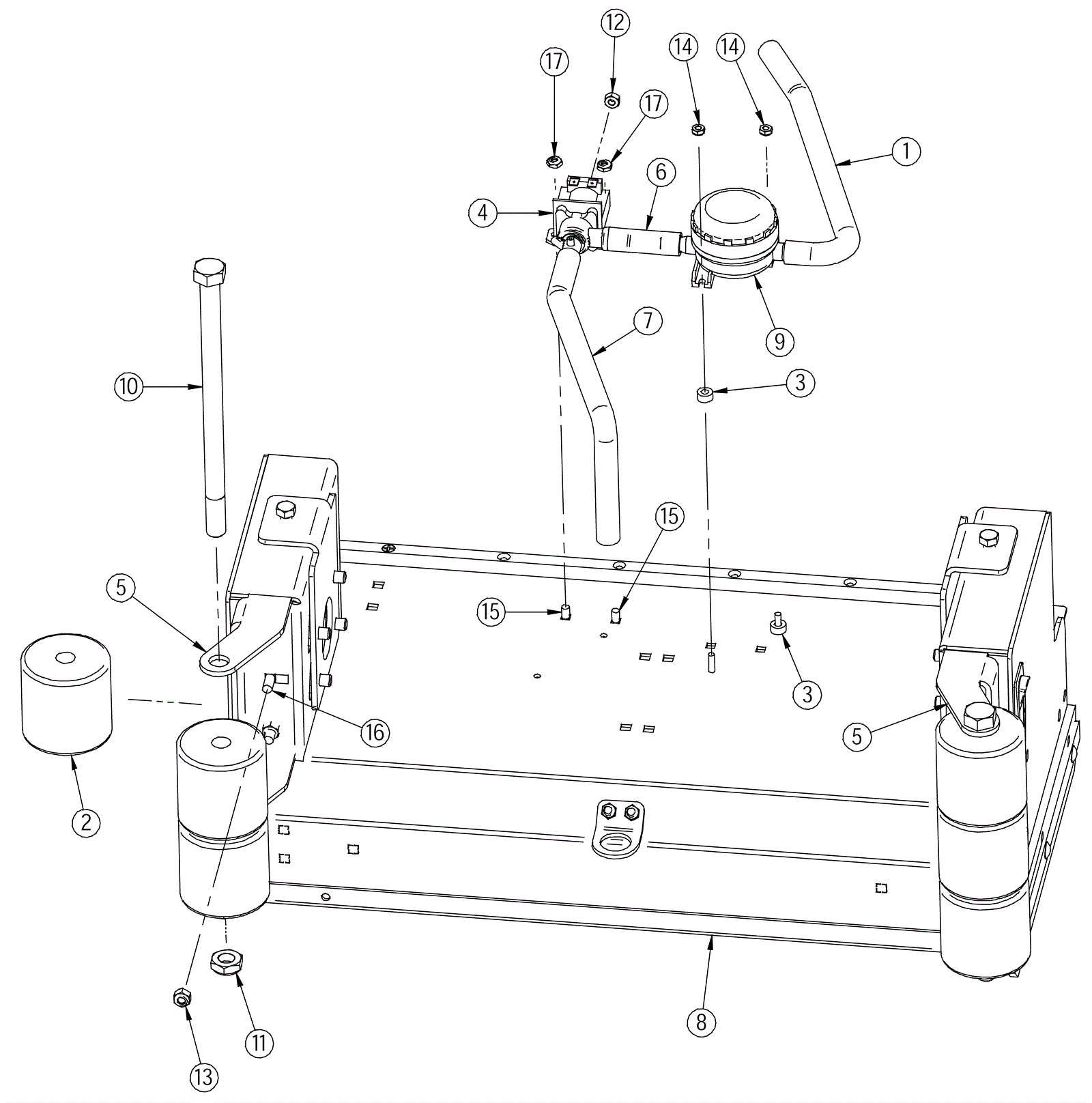

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5028
|
Hose 1/2 x 16 inch (clear) |
1 |
|
|
2 |
202-0756
|
Guide roller |
6 |
|
|
3 |
202-0702
|
Spacer |
2 |
|
|
4a |
202-0674
|
Adjustable solution flow valve |
1 |
|
|
4b |
202-2291
|
Orange rubber stopper (OBSOLETE) |
|
|
|
4c |
202-2295
|
Diaphram |
|
|
|
5 |
202-4011
|
Roller bracket |
2 |
|
|
6 |
202-4012
|
Wire reinforced hose 1/2 x 2 3/4 inch |
1 |
|
|
7 |
202-4013
|
Wire reinforced hose 1/2 x 12 1/4 inch |
1 |
|
|
8 |
202-5027
|
24 inch cylindrical scrub deck |
1 |
|
|
9 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
10 |
202-4038
|
Screw 5/8-11 x 10 hex head |
2 |
|
|
11 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
|
12 |
999-0651
|
Nut 1/4-28 hex stainless steel |
1 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
14 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
15 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
2 |
|
|
16 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
|
17 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
