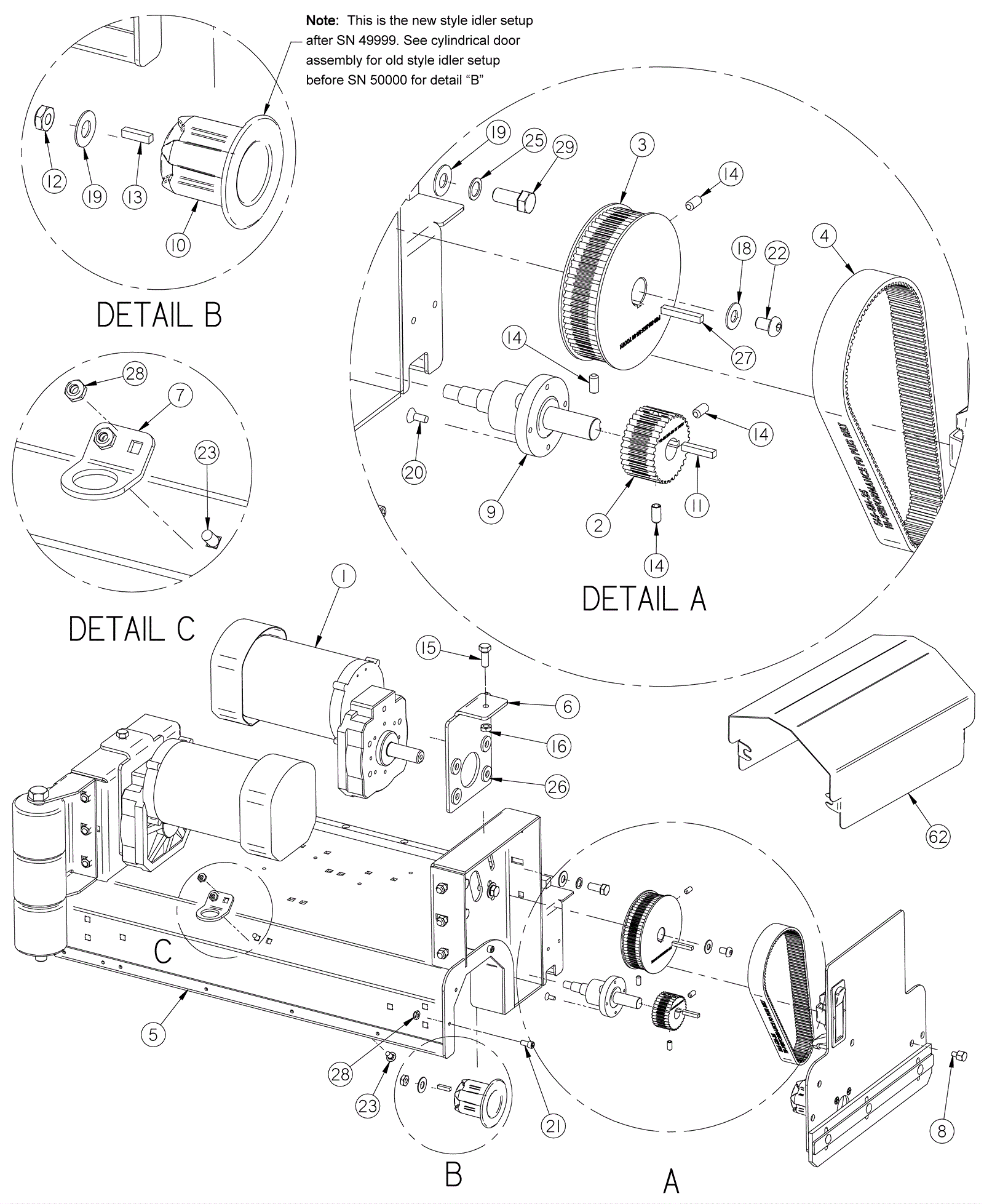

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-4014
|
24V 3/4HP brush motor (OBSOLETE) |
2 |
|
|
2 |
202-3140
|
32 toothed sprocket |
2 |
|
|
3 |
202-3141
|
68 toothed sprocket |
2 |
|
|
4 |
202-2877
|
Belt |
2 |
|
|
5 |
202-5027
|
24 inch cylindrical scrub deck |
1 |
|
|
6 |
202-3142
|
Motor adjustment bracket |
2 |
|
|
7 |
202-4022
|
Quick disconnect bracket |
1 |
|
|
8 |
202-4023
|
Thumb screw |
2 |
|
|
9 |
202-3146
|
Bearing housing |
2 |
|
|
10 |
202-3147
|
Brush driver |
2 |
|
|
11 |
202-0847
|
Square keyway |
2 |
|
|
12 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
2 |
|
|
13 |
202-3153
|
Square keyway |
2 |
|
|
14 |
999-1468
|
Screw 1/4-20 x 1/2 knurled point set alloy steel |
8 |
|
|
15 |
202-3155
|
Bolt 3/8 x 1 inch hex head stainless steel |
2 |
|
|
16 |
202-3099
|
Nut |
2 |
|
|
18 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
19 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
10 |
|
|
20 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
|
21 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
4 |
|
|
22 |
999-1459
|
Screw 5/16-18 x 1/2 button socket head stainless steel |
2 |
|
|
23 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
2 |
|
|
25 |
202-3158
|
Washer 3/8 inch serrated stainless steel |
8 |
|
|
26 |
999-0120
|
Washer 3/8 SAE flat |
10 |
|
|
27 |
202-0140
|
Steering shaft key |
2 |
|
|
28 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
29 |
999-1469
|
Screw 3/8-24 x 7/8 hex head zinc plated |
6 |
|
|
N/S |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
N/S |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
|
