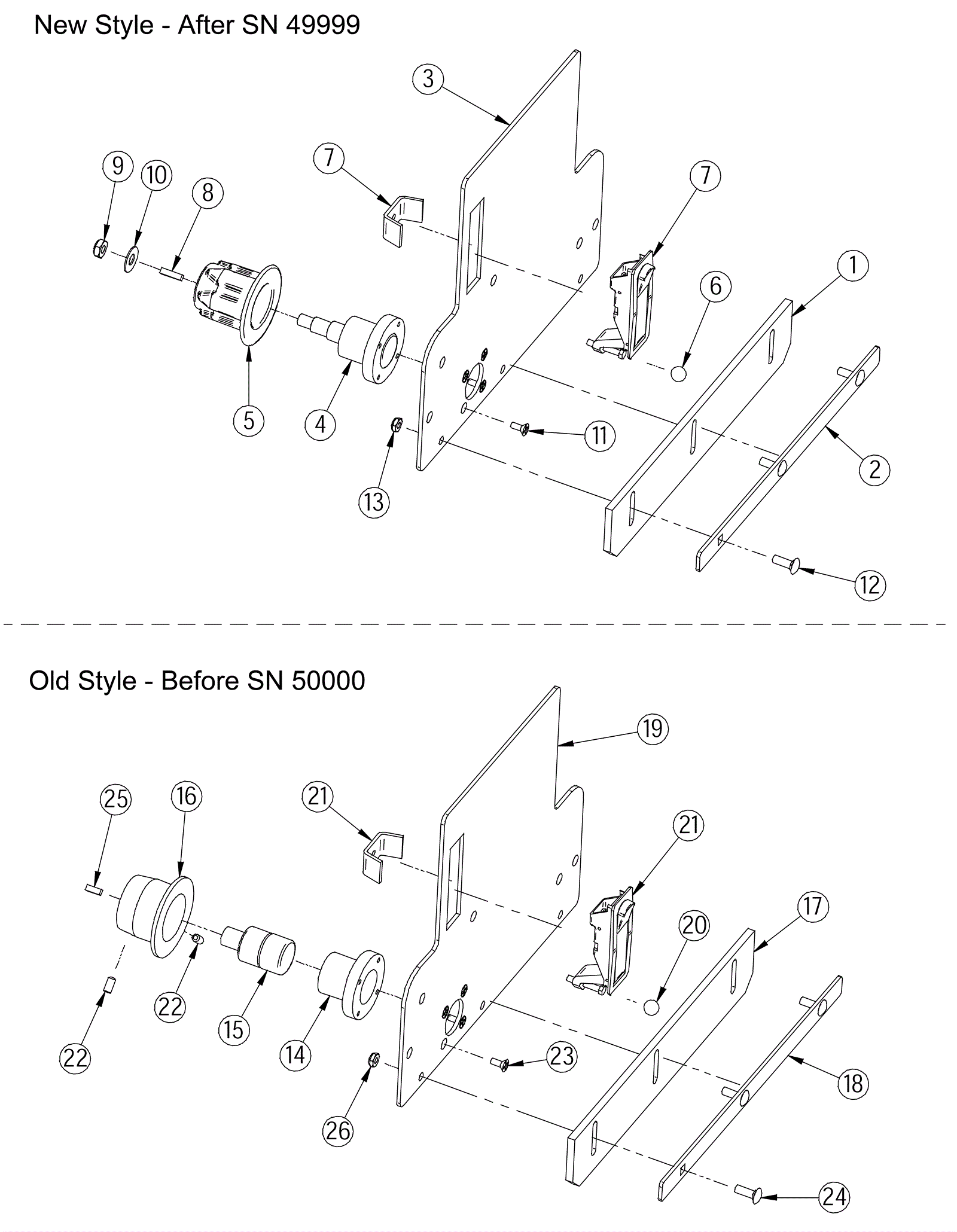

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3047
|
Wiper |
1 |
(after SN 49999) |
|
2 |
202-4075
|
Wiper band |
1 |
(after SN 49999) |
|
3 |
202-4076
|
Driver cover |
1 |
(after SN 49999) |
|
4 |
202-3168
|
Idler drive bearing |
1 |
(after SN 49999) |
|
5 |
202-3147
|
Brush driver |
1 |
(after SN 49999) |
|
6 |
202-3170
|
Grommet |
1 |
(after SN 49999) |
|
7 |
202-0404
|
Latch |
1 |
(after SN 49999) |
|
8 |
164-1029
|
Square keyway |
1 |
(after SN 49999) |
|
9 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
(after SN 49999) |
|
10 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
(after SN 49999) |
|
11 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
4 |
(after SN 49999) |
|
12 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
3 |
(after SN 49999) |
|
13 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
3 |
(after SN 49999) |
|
14 |
202-0265
|
Idler bearing housing |
1 |
(before SN 50000) |
|
15 |
202-4077
|
Idler bearing |
1 |
(before SN 50000) |
|
16 |
202-4078
|
Brush idler |
1 |
(before SN 50000) |
|
17 |
202-3047
|
Wiper |
1 |
(before SN 50000) |
|
18 |
202-4075
|
Wiper band |
1 |
(before SN 50000) |
|
19 |
202-4076
|
Driver cover |
1 |
(before SN 50000) |
|
20 |
202-3170
|
Grommet |
1 |
(before SN 50000) |
|
21 |
202-0404
|
Latch |
1 |
(before SN 50000) |
|
22 |
999-1468
|
Screw 1/4-20 x 1/2 knurled point set alloy steel |
2 |
(before SN 50000) |
|
23 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
4 |
(before SN 50000) |
|
24 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
3 |
(before SN 50000) |
|
25 |
202-0278
|
Square keyway |
1 |
(before SN 50000) |
|
26 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
3 |
(before SN 50000) |
|
