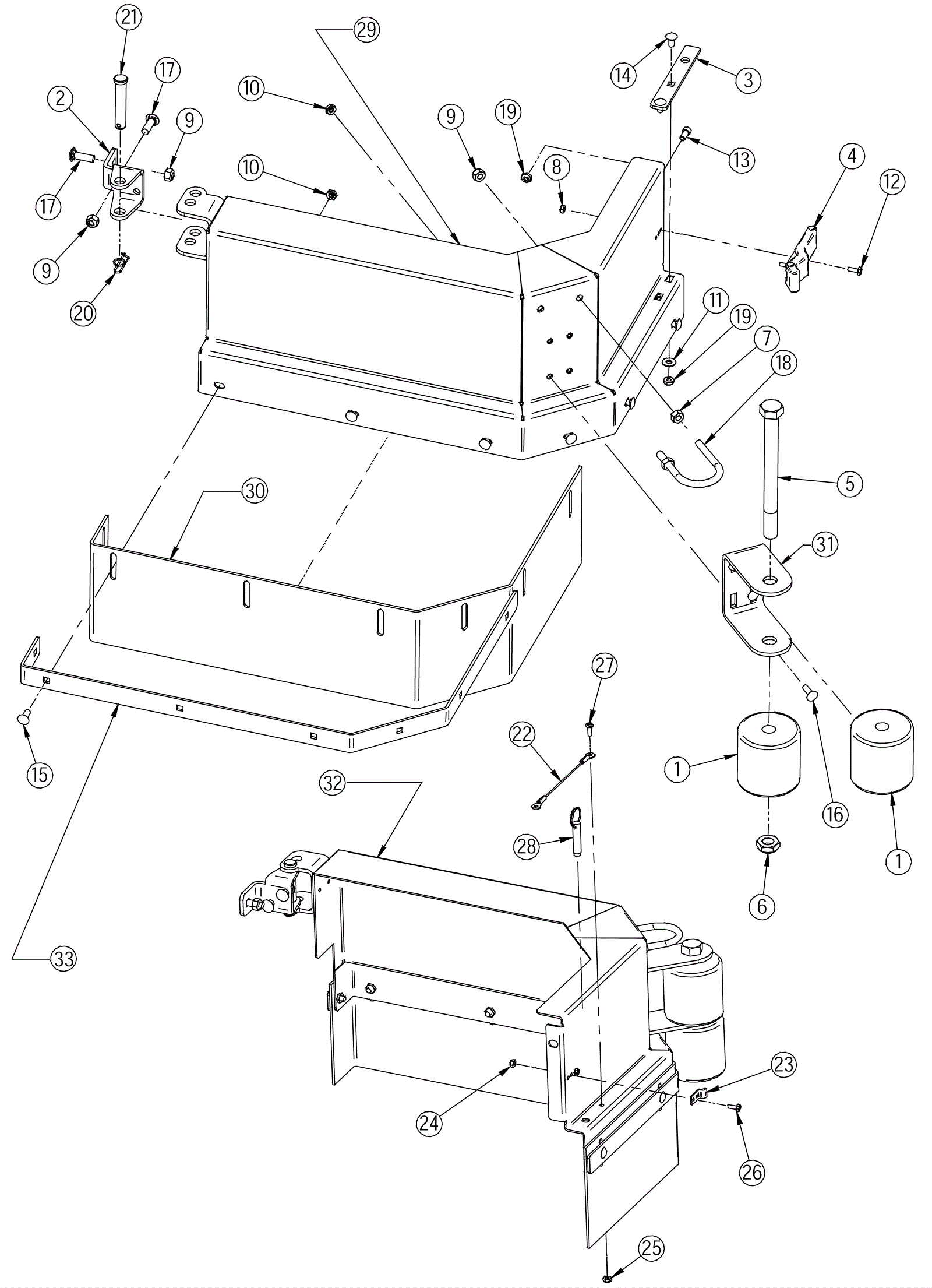

Jaws Assembly

#PartDescription ReqNotesAvailability
1 202-0756 Guide roller 2
2 202-3489 Inner jaw hinge 1
3 202-3490 Jaw lock 1
4 202-1487 Latch 1
5 999-6723 Bolt 5/8-11 x 7 hex head grade 5 zinc plated 1
6 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
7 999-0593 Nut 5/16-18 hex stainless steel 2
8 999-0357 Nut 8-32 nylon insert lock stainless steel 2
9 999-0423 Nut 5/16-18 nylon insert lock stainless steel 5
10 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 11
11 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
12 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2
13 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel 1
14 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 2
15 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 7
16 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 4
17 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 3
18 999-6724 U bolt 5/16-18 x 1 1/4 stainless steel 1
19 999-0304 Nut 1/4-20 nylon lock jam stainless steel 3
20 202-2059 Cotter ring 1
21 202-5182 Clevis pin 1
22 202-0902 Lanyard 1
23 202-1487 Latch 1
24 999-0357 Nut 8-32 nylon insert lock stainless steel 2
25 999-0086 Nut 10-32 nylon insert lock zinc plated 1
26 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2
27 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 1
28 202-3501 Ring pin 1
29a 202-5018 20 inch ride side jaw 1
29b 202-5019 26 inch ride side jaw 1
30a 202-5013 20 inch jaw curtain 1
30b 202-5014 26 inch jaw curtain 1
31a 202-0976 20 inch roller bracket 1
31b 202-1267 26 inch roller bracket 1
32a 202-5015 20 inch left side jaw 1
32b 202-5016 26 inch left side jaw 1
33a 202-5017 20 inch jaw band 1
33b 202-5020 26 inch jaw band 1
