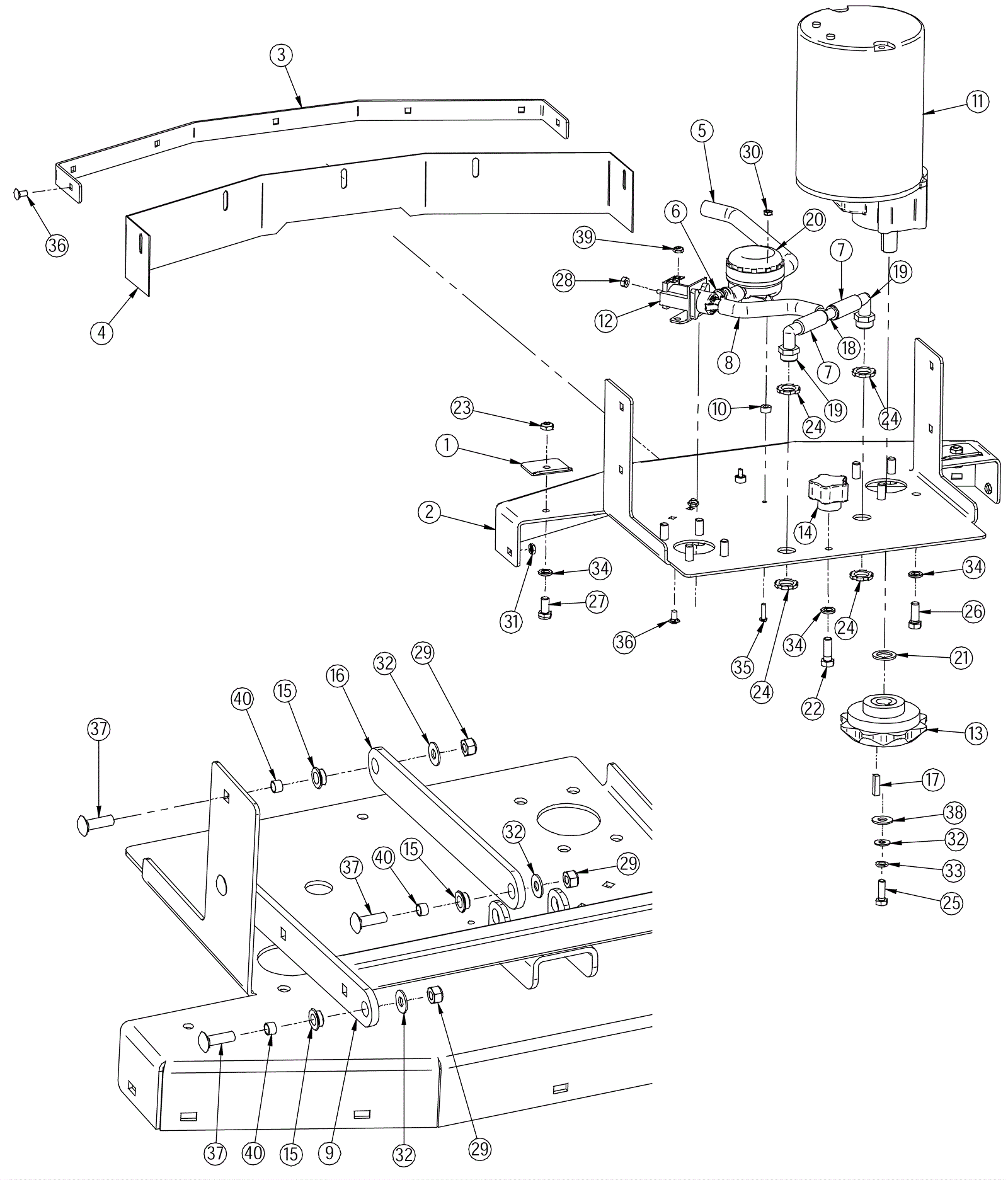

MINI MAG Scrub Deck Assembly - Traction Drive - Disk - 26 inch

#PartDescriptionPriceReqNotesAvailability
1 202-5001 Shroud plate (OBSOLETE) Call for price 2 usually ships 1-5 days
2 202-5002 26 inch scrub deck $684.70 1 usually ships 1-5 days
3 202-5003 26 inch curtain band $26.20 1 usually ships 1-5 days
4 202-5004 26 inch curtain $15.00 1 usually ships 3-10 days
5 202-4117 Hose 1/2 x 14 inch (clear) $10.80 1 usually ships 3-10 days
6 202-5005 Hose 1/2 x 2 inch (clear) $4.20 1 usually ships 3-10 days
7 202-5006 Hose 1/2 x 2 1/2 inch (clear) $5.00 2 usually ships 1-5 days
8 202-5365 5 1/2 inch hose $4.25 1 usually ships 1-5 days
9 202-4119 Lateral arm $138.60 1 usually ships 3-10 days
10 202-0702 Spacer $5.00 2 usually ships 3-10 days
12a 202-0674 Adjustable solution flow valve $112.86 1 usually ships 3-10 days
12b 202-2291 Orange rubber stopper $4.00 usually ships 3-10 days
12c 202-2295 Diaphram $42.60 usually ships 3-10 days
13 202-0330 Metal brush driver $147.95 2 ships same day
14 202-0809 Brass star knob $37.40 1 usually ships 3-10 days
15 202-1239 Flanged bearing $5.00 8 ships same day
16 202-0324 Scrub head lateral arm $24.30 2 usually ships 1-5 days
17 202-0331 Brush driver key (pkg of 2) $9.90 2 ships same day
18 202-0332 1/2 inch barbed tee $5.00 1 ships same day
19 202-0333 Elbow barb $5.00 2 ships same day
20 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel $3.28 1 ships same day
21 202-1204 Washer 3/4 x 1 1/8 flat stainless steel $5.00 2 usually ships 3-10 days
22 202-1186 Bolt 3/8-24 x 1 1/8 hex cap stainless steel $8.77 1 ships same day
23 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 2 ships same day
24 999-0330 Nut 1/2-13 acorn brass $5.20 4 ships same day
25 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
26 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
27 999-1192 Screw 3/8-24 x 3/4 hex head stainless steel $2.08 2 ships same day
28 999-0651 Nut 1/4-28 hex stainless steel $0.90 1 ships same day
29 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 8 ships same day
30 202-2067 Nut 10-32 keps $5.00 2 usually ships 3-10 days
31 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.90 5 ships same day
32 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
33 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
34 999-0659 Washer 3/8 medium split lock stainless steel $0.35 11 ships same day
35 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.90 2 ships same day
36 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel $0.90 7 usually ships 1-5 days
37 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 8 ships same day
38 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
39 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
40 202-3128 Sleeved bearing $5.00 8 usually ships 3-10 days
