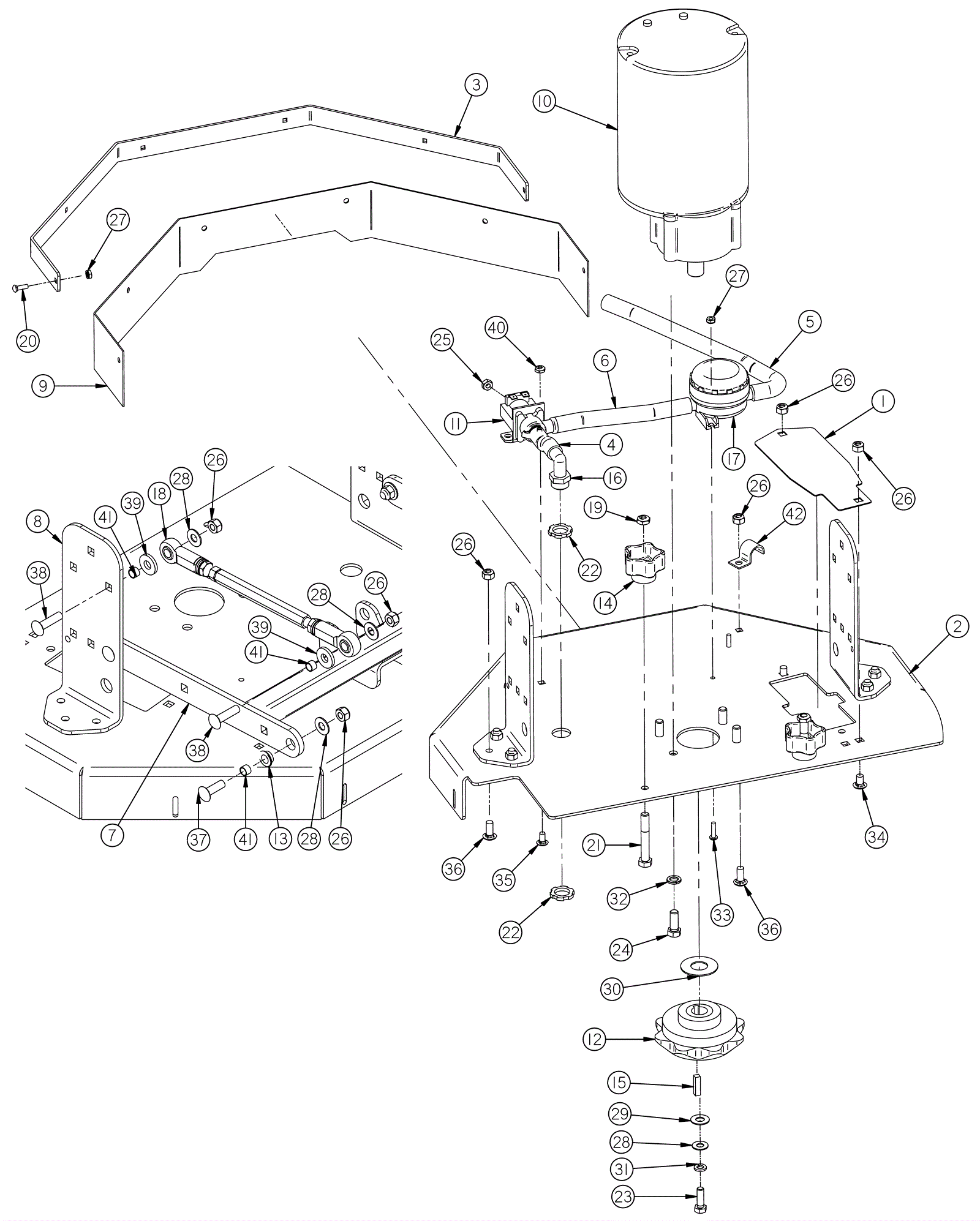

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-4130
|
Cover plate |
$19.36
|
1 |
|
usually ships 3-11 days |
2 |
202-4120
|
23 inch scrub deck |
$261.58
|
1 |
|
usually ships 1-5 days |
3 |
202-4121
|
23 inch curtain band |
$58.08
|
1 |
|
usually ships 1-5 days |
4 |
202-4116
|
Hose 1/2 x 2 3/4 inch (clear) |
$4.68
|
1 |
|
usually ships 3-11 days |
5 |
202-4117
|
Hose 1/2 x 14 inch (clear) |
$11.88
|
1 |
|
usually ships 3-11 days |
6 |
202-5000
|
Hose 1/2 x 6 3/4 inch |
$4.62
|
1 |
|
usually ships 3-11 days |
7 |
202-4119
|
Lateral arm |
$152.46
|
1 |
|
usually ships 3-11 days |
8 |
202-2081
|
20 inch Lift Bracket |
$125.06
|
2 |
|
usually ships 1-5 days |
9 |
202-2234
|
23 Inch rear deck curtain |
$23.32
|
1 |
|
usually ships 3-11 days |
11a |
202-0674
|
Adjustable solution flow valve |
$112.86
|
1 |
|
usually ships 3-11 days |
11b |
202-2291
|
Orange rubber stopper |
$4.40
|
|
|
usually ships 3-11 days |
11c |
202-2295
|
Diaphram |
$46.86
|
|
|
usually ships 3-11 days |
12 |
202-0330
|
Metal brush driver |
$147.95
|
1 |
|
usually ships 3-11 days |
13 |
202-1239
|
Flanged bearing |
$5.50
|
4 |
|
usually ships 3-11 days |
14 |
202-0809
|
Brass star knob |
$41.14
|
2 |
|
usually ships 3-11 days |
15 |
202-0331
|
Brush driver key (pkg of 2) |
$9.90
|
1 |
|
ships same day |
16 |
202-0333
|
Elbow barb |
$5.50
|
1 |
|
ships same day |
17 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
$3.61
|
1 |
|
ships same day |
18 |
202-0629
|
Adjustable lateral arm |
$73.92
|
2 |
|
usually ships 3-11 days |
19 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
$2.02
|
2 |
|
ships same day |
20 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
$0.99
|
6 |
|
usually ships 1-5 days |
21 |
202-2963
|
Bolt hex head stainless steel |
$10.34
|
2 |
|
usually ships 1-5 days |
22 |
999-0330
|
Nut 1/2-13 acorn brass |
$5.72
|
2 |
|
ships same day |
23 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
1 |
|
ships same day |
24 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
4 |
|
ships same day |
25 |
999-0651
|
Nut 1/4-28 hex stainless steel |
$0.99
|
1 |
|
ships same day |
26 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
17 |
|
ships same day |
27 |
202-2067
|
Nut 10-32 keps |
$5.50
|
8 |
|
usually ships 3-11 days |
28 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
9 |
|
ships same day |
29 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
1 |
|
ships same day |
30 |
999-1569
|
Washer 3/4 flat stainless steel |
$2.11
|
1 |
|
ships same day |
31 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
1 |
|
ships same day |
32 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.39
|
6 |
|
ships same day |
33 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
$0.99
|
2 |
|
ships same day |
34 |
999-1575
|
Bolt 5/16-18 x 1/2 carriage head zinc plated |
$0.99
|
2 |
|
usually ships 1-5 days |
35 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
$0.99
|
2 |
|
usually ships 1-5 days |
36 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
7 |
|
ships same day |
37 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
$1.34
|
4 |
|
ships same day |
38 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
$1.39
|
4 |
|
ships same day |
39 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
4 |
|
ships same day |
40 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
2 |
|
ships same day |
41 |
202-3128
|
Sleeved bearing |
$5.50
|
8 |
|
usually ships 3-11 days |
42 |
202-3415
|
Strap |
$5.50
|
1 |
|
usually ships 3-11 days |
