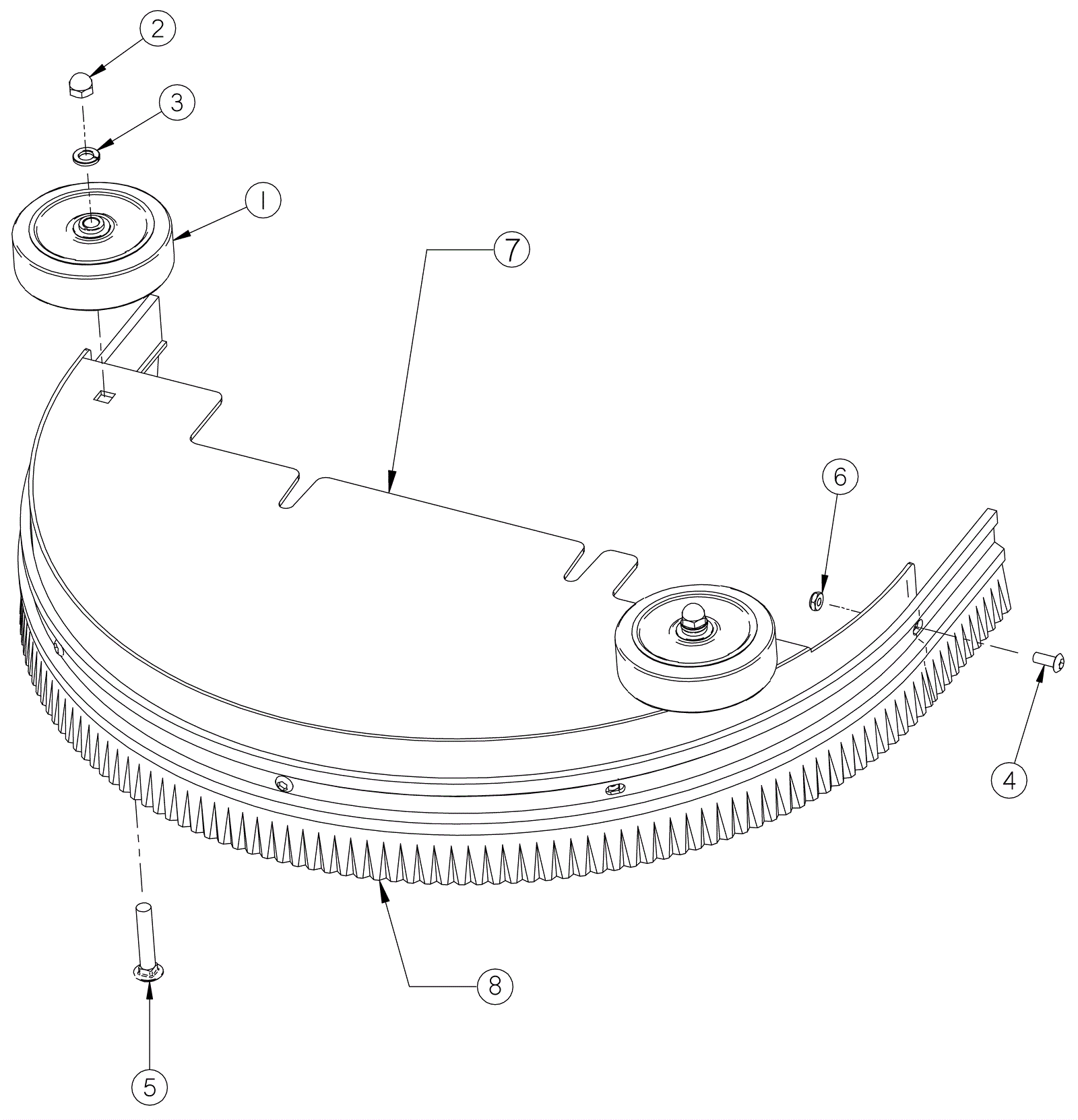

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-2098
|
4 inch wheel (gray) |
$37.70
|
2 |
(23 inch deck only) |
usually ships 3-10 days |
2 |
202-4047
|
Acorn nut |
$5.00
|
2 |
|
usually ships 1-5 days |
3 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.35
|
2 |
|
ships same day |
4 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
$0.90
|
5 |
|
ships same day |
5 |
999-1149
|
Bolt 3/8-16 x 2 carriage head stainless steel |
$5.97
|
2 |
|
ships same day |
6 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
5 |
|
ships same day |
7a |
202-4108
|
17 inch front shroud |
$66.30
|
1 |
|
usually ships 3-10 days |
7b |
202-4109
|
20 inch front shroud |
$76.40
|
1 |
|
ships same day |
7c |
202-2228
|
23 inch front shroud |
$243.60
|
1 |
|
usually ships 3-10 days |
8a |
202-4110
|
17 inch shroud curtain |
$65.00
|
1 |
|
usually ships 1-5 days |
8b |
202-3364
|
20 and 23 inch shroud curtain |
$81.70
|
1 |
|
usually ships 3-10 days |
