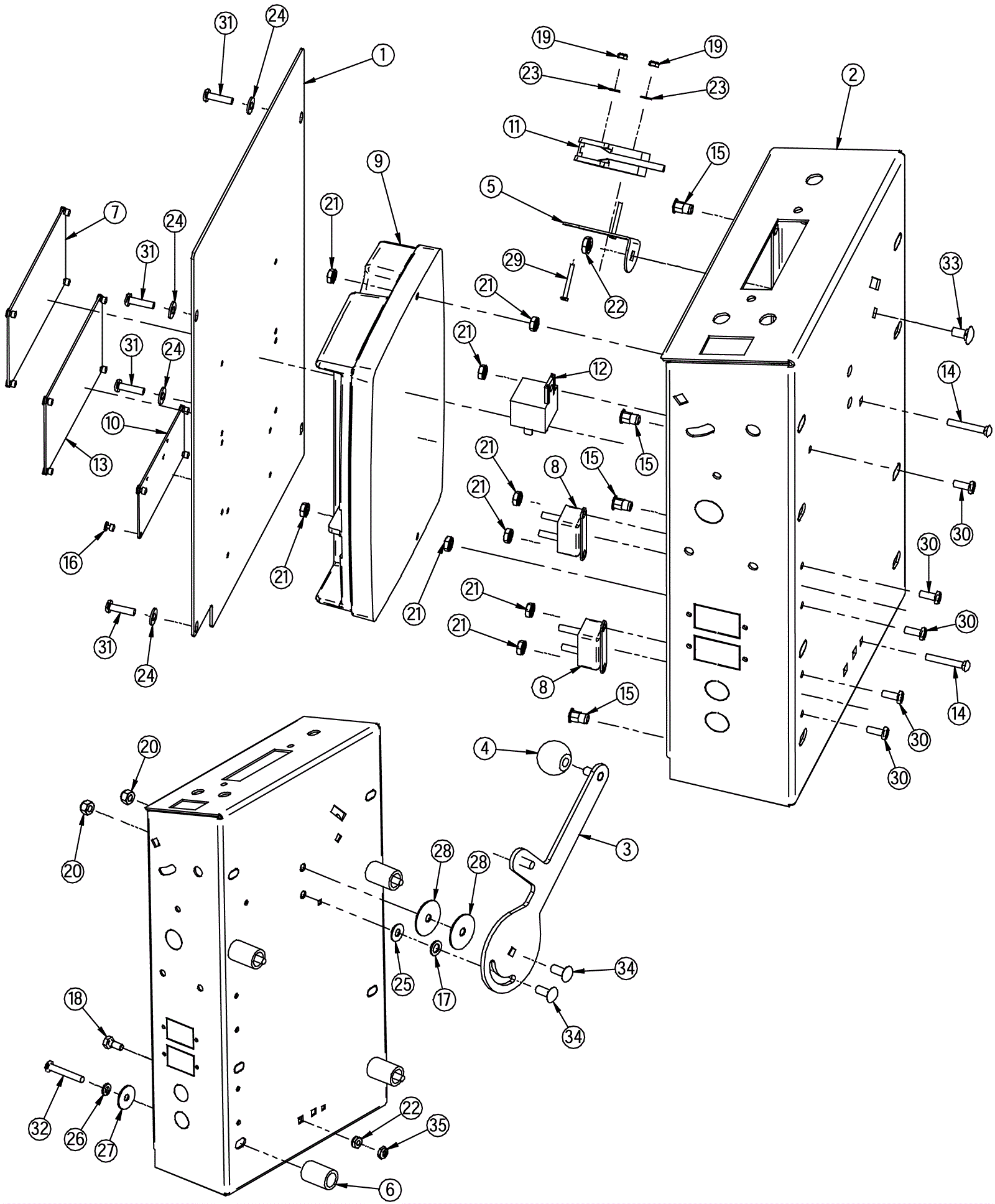

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-4156
|
Control panel cover |
1 |
|
|
2 |
202-4167
|
Control panel box |
1 |
|
|
3 |
202-4164
|
Squeegee lifting lever |
1 |
|
|
5 |
202-3469
|
Limit switch bracket |
1 |
|
|
6 |
202-4166
|
Spacer |
4 |
|
|
7 |
202-5397
|
24V battery warning plate |
1 |
|
|
8 |
202-2052
|
15amp circuit breaker |
2 |
|
|
9 |
202-1369
|
Main controller |
1 |
|
|
10 |
202-0720
|
Serial number plate |
1 |
|
|
11 |
202-0192
|
Lift limit switch |
1 |
|
|
12 |
202-0348
|
15amp relay |
1 |
|
|
13 |
202-0675
|
Detergent warning plate |
1 |
|
|
14 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
2 |
|
|
15 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
16 |
202-3315
|
Blind rivet |
12 |
|
|
17 |
999-1530
|
Washer 3/8 flat nylon |
1 |
|
|
18 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
1 |
|
|
19 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
20 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
21 |
202-2067
|
Nut 10-32 keps |
9 |
|
|
22 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
2 |
|
|
23 |
202-2461
|
Washer 4 x 5/16 flat stainless steel |
2 |
|
|
24 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
25 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
26 |
999-0632
|
Washer 1/4 split lock stainless steel |
1 |
|
|
27 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
1 |
|
|
28 |
999-1213
|
Washer 5/16 x 1 1/2 fender stainless steel |
2 |
|
|
29 |
999-1463
|
Screw 4-40 x 1 pan head phillips stainless steel |
2 |
|
|
30 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
5 |
|
|
31 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
32 |
999-1247
|
Screw 1/4-20 x 1 3/4 button head socket cap zinc plated |
4 |
|
|
33 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
1 |
|
|
34 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
35 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
|
