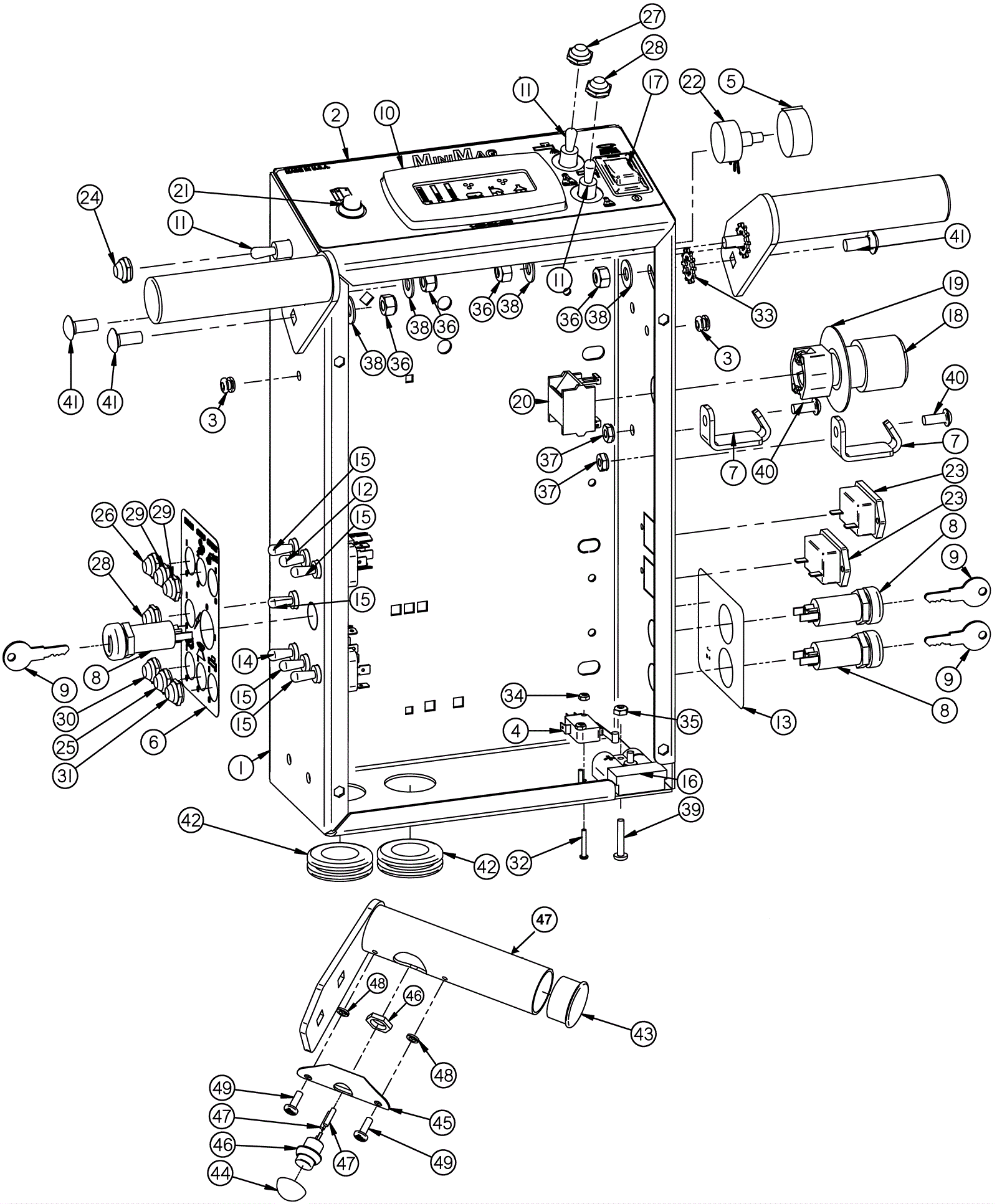

MINI MAG Control Panel Assembly - Internal - Traction Drive

#PartDescriptionPriceReqNotesAvailability
1 202-4167 Control panel box $649.88 1 usually ships 3-11 days
2 202-4168 Control panel decal $13.42 1 usually ships 1-5 days
3 202-1587 LED GROMMET $5.50 2 usually ships 3-11 days
4 202-0721 Microswitch $15.73 1 (optional) usually ships 3-11 days
5 202-0989 Control knob with washer (red) $11.66 1 usually ships 3-11 days
6 202-3463 SUDS decal $8.91 1 usually ships 1-5 days
7 202-3436 Hook $13.75 2 usually ships 3-11 days
8a 202-2300 Key switch with key entry (red) and ring (black) $33.55 3 (OEM) ships same day
8b 991-5161 Key switch with key and ring $16.04 3 (NON-OEM) ships same day
9 991-1634 Key (pkg of 2) $10.67 3 ships same day
10 202-1317 LCD window display $390.50 1 usually ships 3-11 days
11a 202-0521 Toggle switch $34.76 3 (after SN 50504) usually ships 3-11 days
11b 202-0535 Speed control potentiometer $89.76 3 (before SN 50504) usually ships 3-11 days
11c 202-0990 Control knob (blue) $13.20 3 (before SN 50504) usually ships 3-11 days
12 202-3340 Toggle switch $30.69 1 usually ships 3-11 days
13 202-3313 Hour meter decal $12.65 1 usually ships 1-5 days
14 202-1992 Toggle switch $52.47 1 usually ships 3-11 days
15 202-0097 Toggle switch $15.73 5 (optional) usually ships 3-11 days
16 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
17 202-0369 2 position rocker switch $26.18 1 usually ships 3-11 days
18 202-0826 Emergency shut-off switch $173.47 1 usually ships 3-11 days
19 202-0827 Emergency legend plate $43.34 1 usually ships 1-5 days
20 202-0825 Emergency contact $44.77 1 usually ships 3-11 days
21 202-0879 Push button switch $51.15 1 ships same day
22 202-0535 Speed control potentiometer $89.76 1 usually ships 3-11 days
23 202-0376 Hour meter $86.68 2 usually ships 3-11 days
24 202-1864 Toggle switch protective boot (red) $13.20 1 usually ships 3-11 days
25 202-1977 Toggle switch protective boot (yellow) $13.20 1 usually ships 3-11 days
26 202-1866 Toggle switch protective boot (green) $13.20 1 usually ships 3-11 days
27 202-1865 Toggle switch protective boot (blue) $13.20 2 (optional) usually ships 3-11 days
28 202-1355 Toggle switch protective boot (black) $13.20 2 ships same day
29 202-2221 Toggle switch protective boot (gray) $13.20 1 ships same day
30 202-3465 Toggle switch protective boot (orange) $13.20 1 usually ships 3-11 days
31 202-3466 Toggle switch protective boot (light blue) $13.20 1 (optional) usually ships 3-11 days
32 202-2371 Screw 4-40 x 3/4 round pan head $5.50 2 usually ships 1-5 days
33 202-1133 Washer 5/16 internal/external star $5.50 2 usually ships 1-5 days
34 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
35 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
36 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
37 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
38 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
39 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
40 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 2 ships same day
41 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
42 202-2592 Grommet $5.50 2 usually ships 3-11 days
43 202-2252 End cap $5.50 2 usually ships 3-11 days
44 202-3427 Button cover $17.27 1 usually ships 3-11 days
45 202-0869 Switch cover $21.56 2 usually ships 3-11 days
46 202-0879 Push button switch $51.15 2 ships same day
47a 202-4162 Left side adjustable handle bar $376.66 1 usually ships 3-11 days
47b 202-4163 Right side adjustable handle bar $373.71 1 usually ships 3-11 days
48 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
49 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
