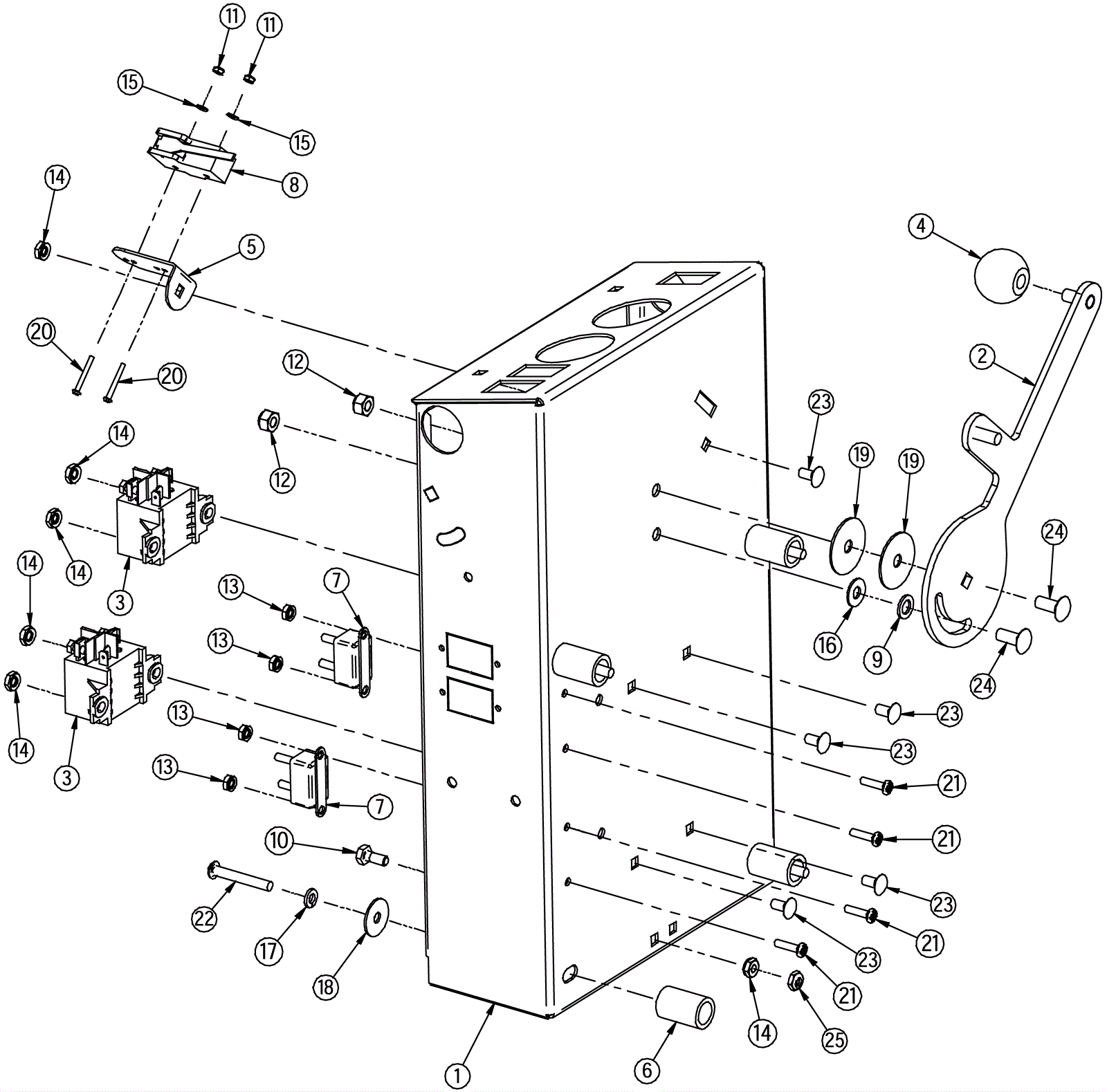

MINI MAG Control Panel Assembly - External - Brush Drive

#PartDescriptionPriceReqNotesAvailability
1 202-4157 Control panel box $241.78 1 usually ships 1-5 days
2 202-4164 Squeegee lifting lever $55.33 1 usually ships 1-5 days
3 202-4165 24V 50amp relay $89.87 2 usually ships 3-11 days
5 202-3469 Limit switch bracket $11.11 1 usually ships 1-5 days
6 202-4166 Spacer $12.54 4 usually ships 3-11 days
7 202-2052 15amp circuit breaker $24.42 2 usually ships 3-11 days
8 202-0192 Lift limit switch $41.47 1 usually ships 3-11 days
9 999-1530 Washer 3/8 flat nylon $0.99 1 ships same day
10 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 1 ships same day
11 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
13 202-2067 Nut 10-32 keps $5.50 4 usually ships 3-11 days
14 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 6 ships same day
15 202-2461 Washer 4 x 5/16 flat stainless steel $5.50 2 usually ships 1-5 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
17 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
18 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
19 999-1213 Washer 5/16 x 1 1/2 fender stainless steel $0.99 2 ships same day
20 999-1463 Screw 4-40 x 1 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
21 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
22 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 4 ships same day
23 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel $0.99 5 usually ships 1-5 days
24 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
25 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 1 ships same day
N/S 202-3557 Managers lock out - brush pressure control $38.58 1 usually ships 1-5 days
