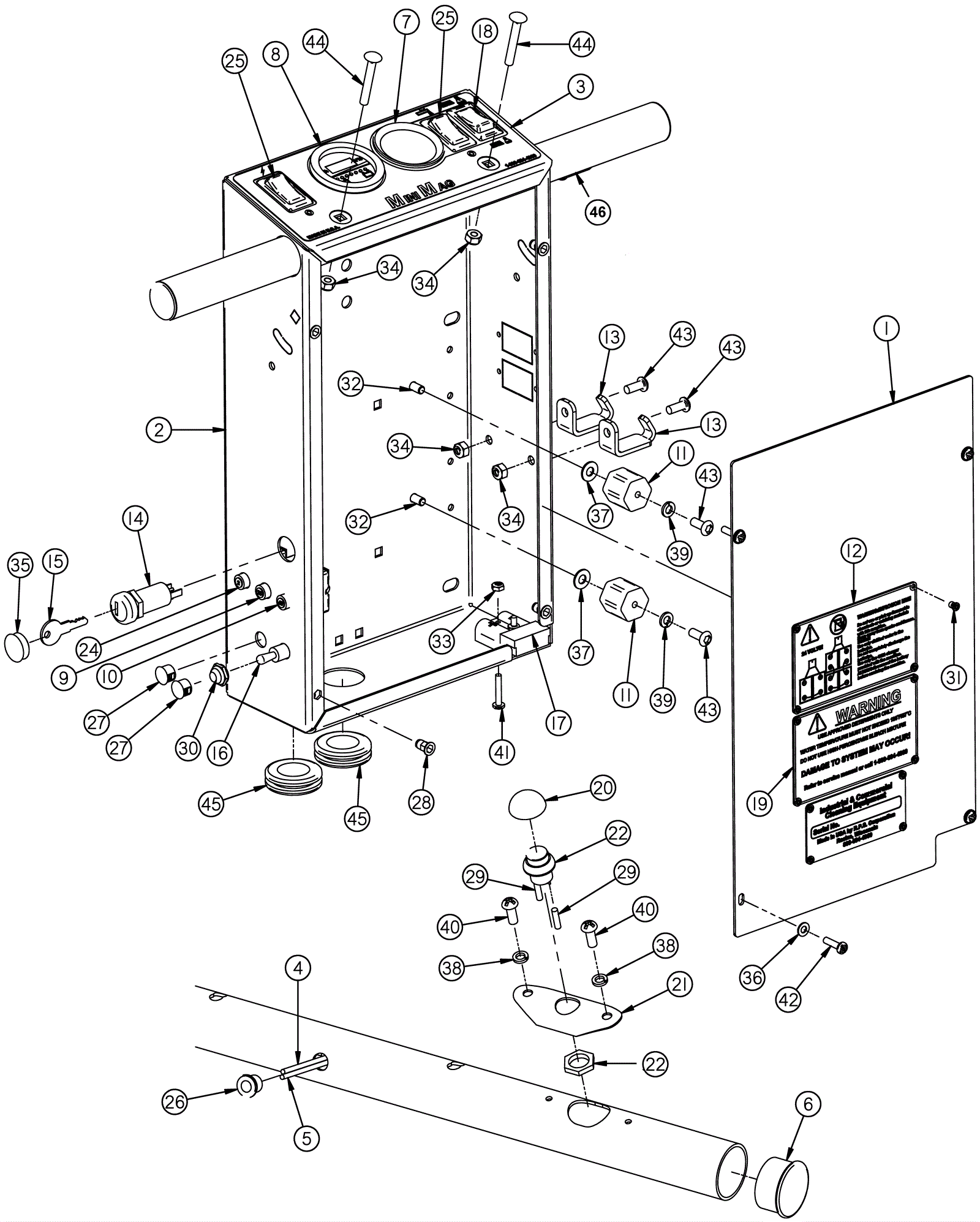

MINI MAG Control Panel Assembly - Internal - Brush Drive

#PartDescriptionPriceReqNotesAvailability
1 202-4156 Control panel cover $32.01 1 ships same day
2 202-4157 Control panel box $241.78 1 usually ships 1-5 days
3 202-4158 Control panel decal $6.71 1 usually ships 1-5 days
4 202-2866 12 inch large 16 Gage red wire $5.72 1 usually ships 3-11 days
5 202-2251 Yellow wire, 16 gage $6.93 1 usually ships 3-11 days
6 202-2252 End cap $5.50 1 usually ships 3-11 days
7 202-4159 40amp brush pressure gauge $79.31 1 usually ships 3-11 days
8 202-2855 Battery meter $131.69 1 usually ships 3-11 days
9 202-2241 25amp resettable fuse $34.10 1 usually ships 3-11 days
10 202-4160 40amp resettable fuse $105.71 1 usually ships 3-11 days
11 202-2858 Switchboard insulator $36.74 2 usually ships 1-5 days
12 202-3471 Explosion warning plate $4.95 1 usually ships 1-5 days
13 202-3436 Hook $13.75 2 usually ships 3-11 days
14a 202-2300 Key switch with key entry (red) and ring (black) $33.55 1 (optional) (OEM) ships same day
14b 991-5161 Key switch with key and ring $16.04 1 (optional) (NON-OEM) ships same day
15 991-1634 Key (pkg of 2) $10.67 1 (optional) ships same day
16 202-0097 Toggle switch $15.73 1 (optional) usually ships 3-11 days
17 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 usually ships 5-16 days
18a 202-0369 2 position rocker switch $26.18 1 usually ships 3-11 days
18b 202-4182 Rocker switch $26.18 1 usually ships 3-11 days
19 202-0675 Detergent warning plate $8.91 1 usually ships 3-11 days
20 202-3427 Button cover $17.27 1 usually ships 3-11 days
21 202-0869 Switch cover $21.56 1 usually ships 3-11 days
22 202-0879 Push button switch $51.15 1 ships same day
24 202-0822 2amp fuse $42.02 1 usually ships 3-11 days
25 202-0370 Switch $25.19 2 usually ships 3-11 days
26 202-2253 Nut 1/4-.3/8 x 3/8 long flanged bearing nylon $6.71 1 usually ships 3-11 days
27 202-4161 Dome plug $5.50 2 (optional) usually ships 1-5 days
28 999-0460 Nut 10-32 hex $0.99 1 ships same day
29 202-2254 Heat shrink $6.71 2 usually ships 3-11 days
30 202-1865 Toggle switch protective boot (blue) $13.20 1 (optional) usually ships 3-11 days
31 202-3315 Blind rivet $5.50 12 usually ships 1-5 days
32 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
33 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
34 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
35 202-2246 Hole plug 3/4 $5.50 1 (optional) usually ships 1-5 days
36 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
38 999-0150 Washer #8 medium split lock $0.99 2 ships same day
39 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
40 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
41 999-1574 Screw 8-32 x 1 pan head phillips stainless steel $0.99 1 usually ships 1-5 days
42 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
43 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel $0.99 4 ships same day
44 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 2 ships same day
45 202-2592 Grommet $5.50 2 usually ships 3-11 days
46a 202-4162 Left side adjustable handle bar $376.66 1 (optional) usually ships 3-11 days
46b 202-4163 Right side adjustable handle bar $373.71 1 (optional) usually ships 3-11 days
N/S 202-3557 Managers lock out - brush pressure control $38.58 1 usually ships 1-5 days
