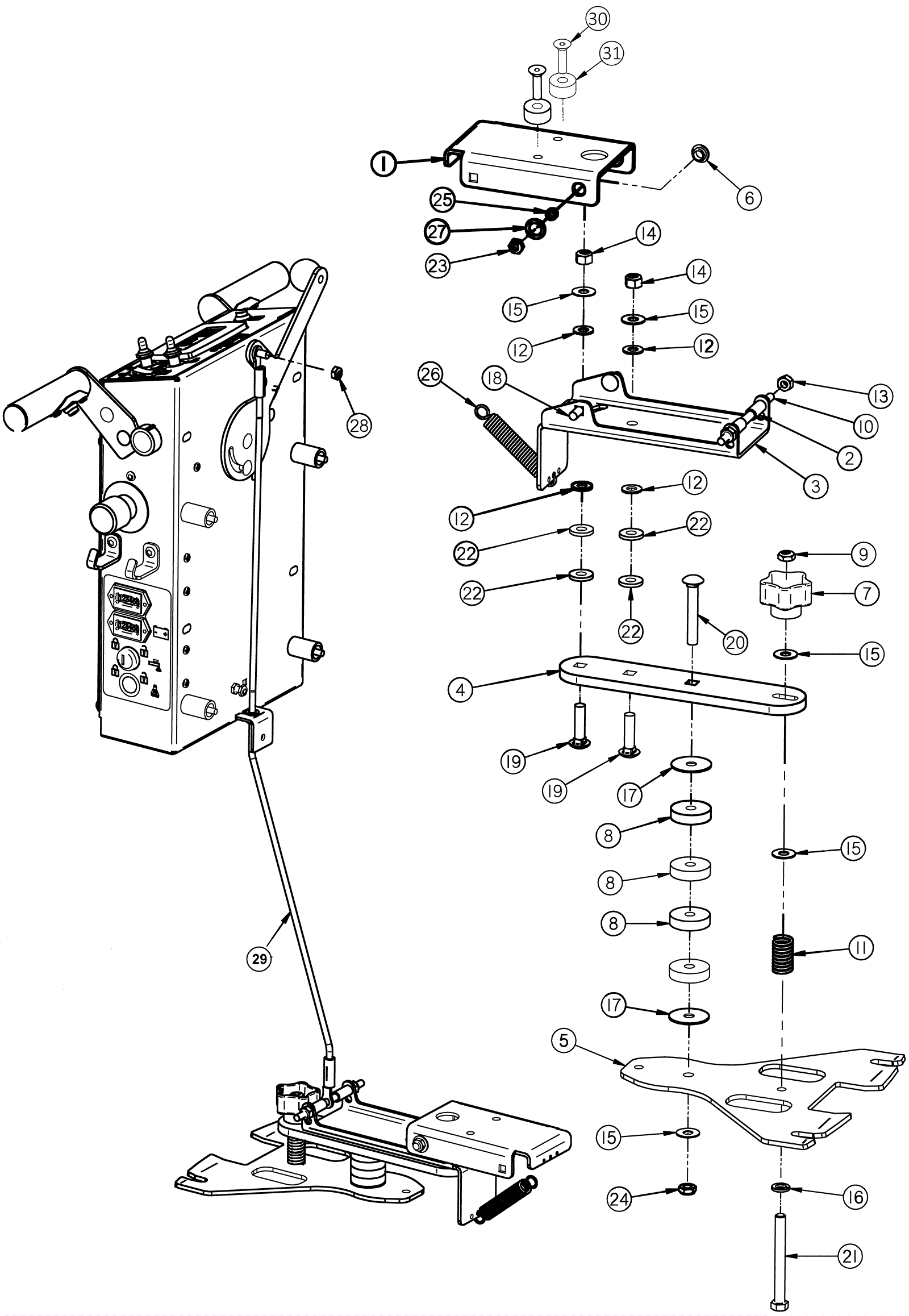

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-4150
|
Squeegee support |
1 |
|
|
2 |
202-4151
|
Pin |
2 |
|
|
3 |
202-4152
|
Squeegee swing plate |
1 |
|
|
4 |
202-3457
|
Plate |
1 |
|
|
5 |
202-3459
|
Squeegee triangle plate |
1 |
|
|
6 |
202-1239
|
Flanged bearing |
2 |
|
|
7a |
202-0809
|
Brass star knob |
1 |
|
|
7b |
991-2411
|
Brass star knob |
1 |
(NON-OEM) |
|
8 |
202-0151
|
Grommet |
4 |
|
|
9 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
|
10 |
202-0811
|
Double ended stud |
1 |
|
|
11 |
202-2945
|
Spring |
1 |
|
|
12 |
999-1530
|
Washer 3/8 flat nylon |
4 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
14 |
999-9071
|
Nut 3/8-16 nylon insert jam lock stainless steel |
2 |
|
|
15 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
5 |
|
|
16 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
1 |
|
|
17 |
999-1446
|
Washer 3/8 x 1 1/2 fender stainless steel |
2 |
|
|
18 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
19 |
999-1348
|
Bolt 3/8-16 x 1 1/2 carriage head stainless steel |
2 |
|
|
20 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
21 |
999-1578
|
Bolt 3/8-24 x 3 1/2 hex head socket zinc plated |
1 |
|
|
22 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
23 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
24 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
25 |
202-3128
|
Sleeved bearing |
2 |
|
|
26 |
202-2208
|
Compression spring |
1 |
|
|
27 |
202-3482
|
Shim |
2 |
|
|
28 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
29a |
202-4154
|
Squeegee lifting cable |
1 |
(brush drive) |
|
29b |
202-4155
|
Squeegee lifting cable |
1 |
(traction drive) |
|
