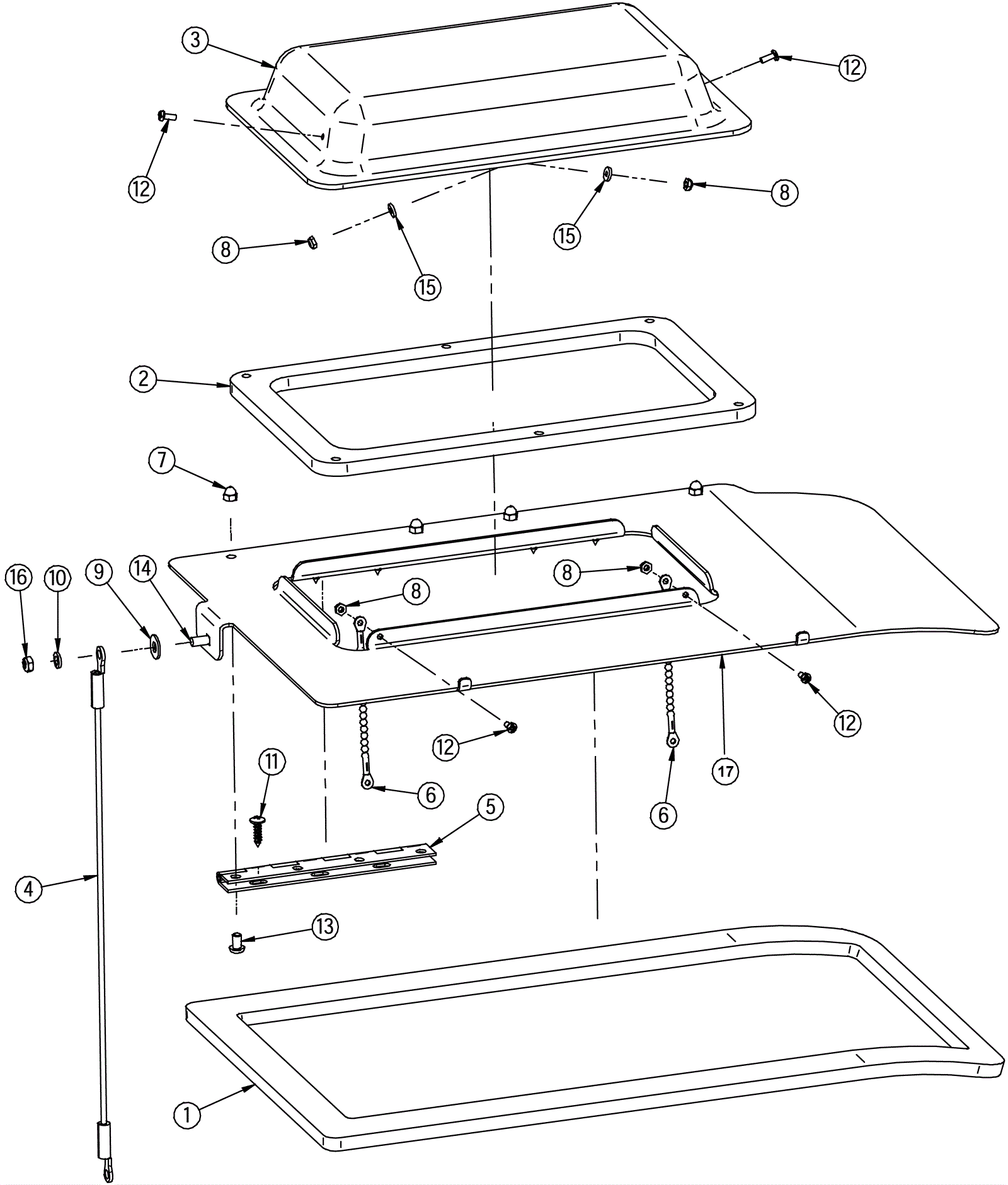

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3372
|
Tank lid gasket (lower) |
1 |
|
|
2 |
202-1982
|
Tank lid gasket (upper) |
1 |
|
|
3 |
202-1983
|
Tank lid (upper) (clear) |
1 |
|
|
4 |
202-3389
|
20 inch cable |
1 |
|
|
5 |
202-1817
|
8 inch hinge |
2 |
|
|
6 |
202-3127
|
4 inch chain (6 inch no longer available) |
2 |
|
|
7 |
999-1458
|
Nut 5/16-18 acorn nickel plated |
4 |
|
|
8 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
9 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
10 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
1 |
|
|
11 |
999-1290
|
Screw #14 x 1 truss head phillips stainless steel |
6 |
|
|
12 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
4 |
|
|
13 |
999-1459
|
Screw 5/16-18 x 1/2 button socket head stainless steel |
4 |
|
|
14 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
|
15 |
202-3244
|
Neoprene washer |
2 |
|
|
16 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
17 |
202-5012
|
Tank lid (lower) (stainless steel) |
1 |
|
|
