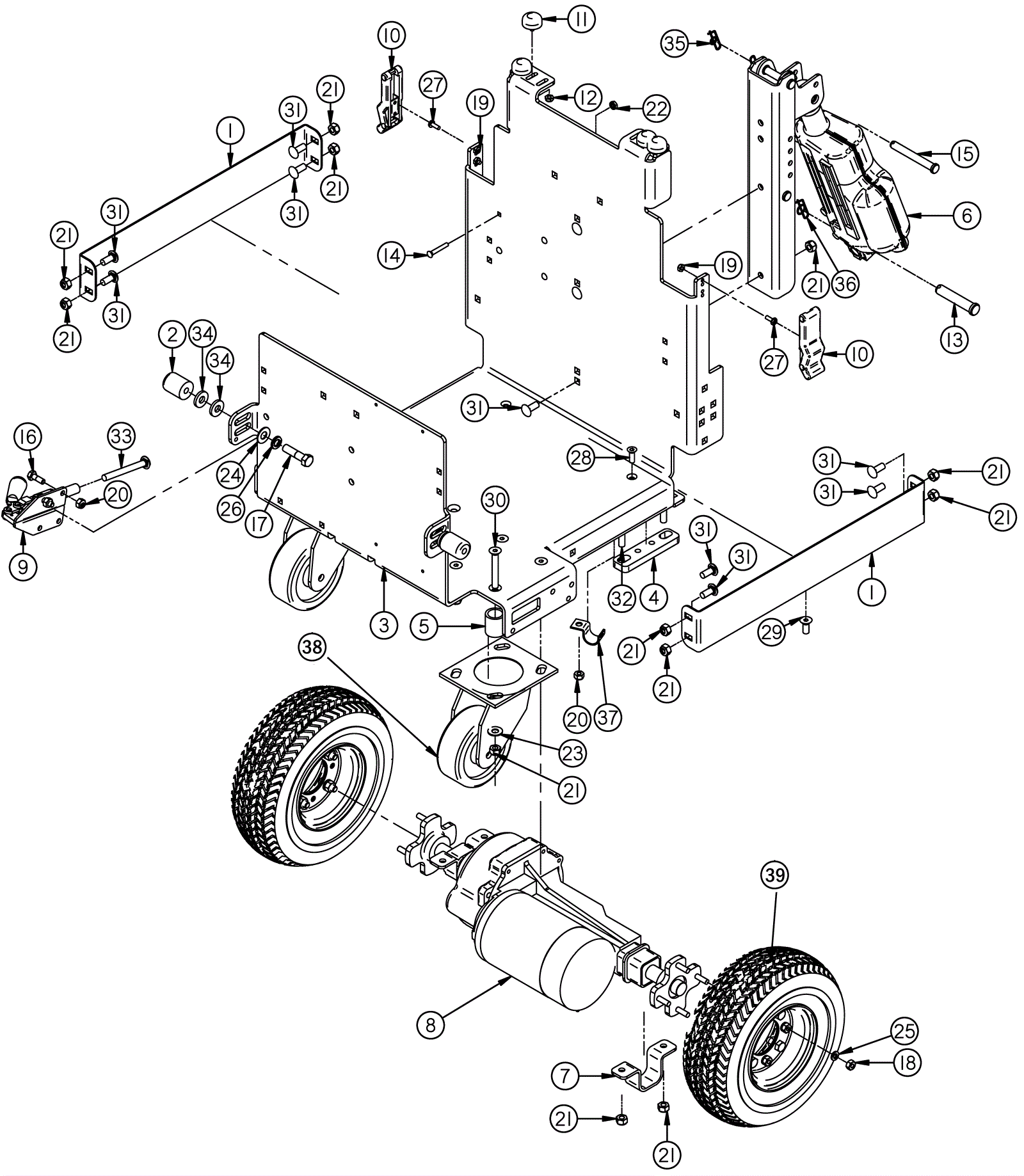

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-4145
|
Frame support |
$69.08
|
2 |
|
usually ships 1-5 days |
2 |
202-4137
|
Spacer |
$22.37
|
2 |
|
usually ships 3-11 days |
3 |
202-4146
|
Main frame |
$471.79
|
1 |
|
usually ships 1-5 days |
4 |
202-4138
|
Spacer |
$27.06
|
2 |
|
usually ships 1-5 days |
5 |
202-4139
|
Spacer |
$8.14
|
8 |
|
usually ships 1-5 days |
6 |
202-2220
|
24V 4 stroke actuator |
$436.04
|
1 |
|
usually ships 3-11 days |
7 |
202-0911
|
Axle mount |
$17.93
|
2 |
|
usually ships 1-5 days |
8 |
202-0908
|
Transaxle assembly |
$949.74
|
1 |
|
usually ships 3-11 days |
9 |
202-3411
|
Parking brake |
$138.82
|
1 |
(optional) |
usually ships 1-5 days |
10 |
202-1487
|
Latch |
$25.19
|
2 |
|
usually ships 3-11 days |
11 |
202-3543
|
10-24 x 1 threaded stud |
$6.71
|
4 |
|
ships same day |
12 |
202-2817
|
Nut 10-24 nylock jam stainless steel |
$6.71
|
4 |
|
usually ships 1-5 days |
13 |
202-4141
|
Clevis pin 1/2 x 2 1/2 inch |
$5.50
|
1 |
|
usually ships 1-5 days |
14 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
$1.97
|
4 |
|
usually ships 1-5 days |
15 |
202-4142
|
Clevis pin 3/8 x 3 inch |
$9.46
|
1 |
|
usually ships 3-11 days |
16 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
2 |
|
ships same day |
17 |
202-1970
|
Bolt 3/8-16 x 1-1/2 hex head stainless steel |
$5.50
|
2 |
|
usually ships 3-11 days |
18 |
999-0609
|
Nut 1/4-20 hex stainless steel |
$0.99
|
8 |
|
ships same day |
19 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
20 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
3 |
|
ships same day |
21 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
23 |
|
ships same day |
22 |
202-2067
|
Nut 10-32 keps |
$5.50
|
4 |
|
usually ships 3-11 days |
23 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
8 |
|
ships same day |
24 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
2 |
|
ships same day |
25 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
8 |
|
ships same day |
26 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.39
|
2 |
|
ships same day |
27 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
$0.99
|
4 |
|
ships same day |
28 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
$0.99
|
1 |
|
ships same day |
29 |
202-2831
|
Screw 5/16-18 x 3/4 flat head socket stainless steel |
$5.50
|
2 |
|
usually ships 3-11 days |
30 |
202-2076
|
Screw 5/16 - 18 x 2-1/4 stainless steel |
$5.50
|
8 |
|
usually ships 1-5 days |
31 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
11 |
|
ships same day |
32 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
$1.39
|
4 |
|
ships same day |
33 |
999-1335
|
Bolt 5/16-18 x 3 round head carriage stainless steel |
$5.54
|
1 |
|
ships same day |
34 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
4 |
|
ships same day |
35 |
202-2036
|
Cotter pin |
$8.25
|
1 |
|
usually ships 3-11 days |
36 |
202-2059
|
Cotter ring |
$5.50
|
1 |
|
usually ships 3-11 days |
37 |
202-3415
|
Strap |
$5.50
|
1 |
|
usually ships 3-11 days |
38a |
202-2064
|
Caster wheel (red) |
$110.11
|
2 |
|
usually ships 3-11 days |
38b |
202-4143
|
Solid caster wheel (gray) |
$135.96
|
2 |
|
usually ships 3-11 days |
38c |
202-0919
|
Non-marking Soft caster wheel (gray) |
$149.16
|
2 |
|
usually ships 3-11 days |
39a |
202-5722
|
8 inch poly tire with shims (gray) |
$266.09
|
2 |
|
ships same day |
39b |
202-0920
|
Solid tire (gray) |
$176.44
|
2 |
|
usually ships 3-11 days |
N/S |
202-3275
|
Rubber bumper |
$5.50
|
6 |
|
usually ships 3-11 days |
