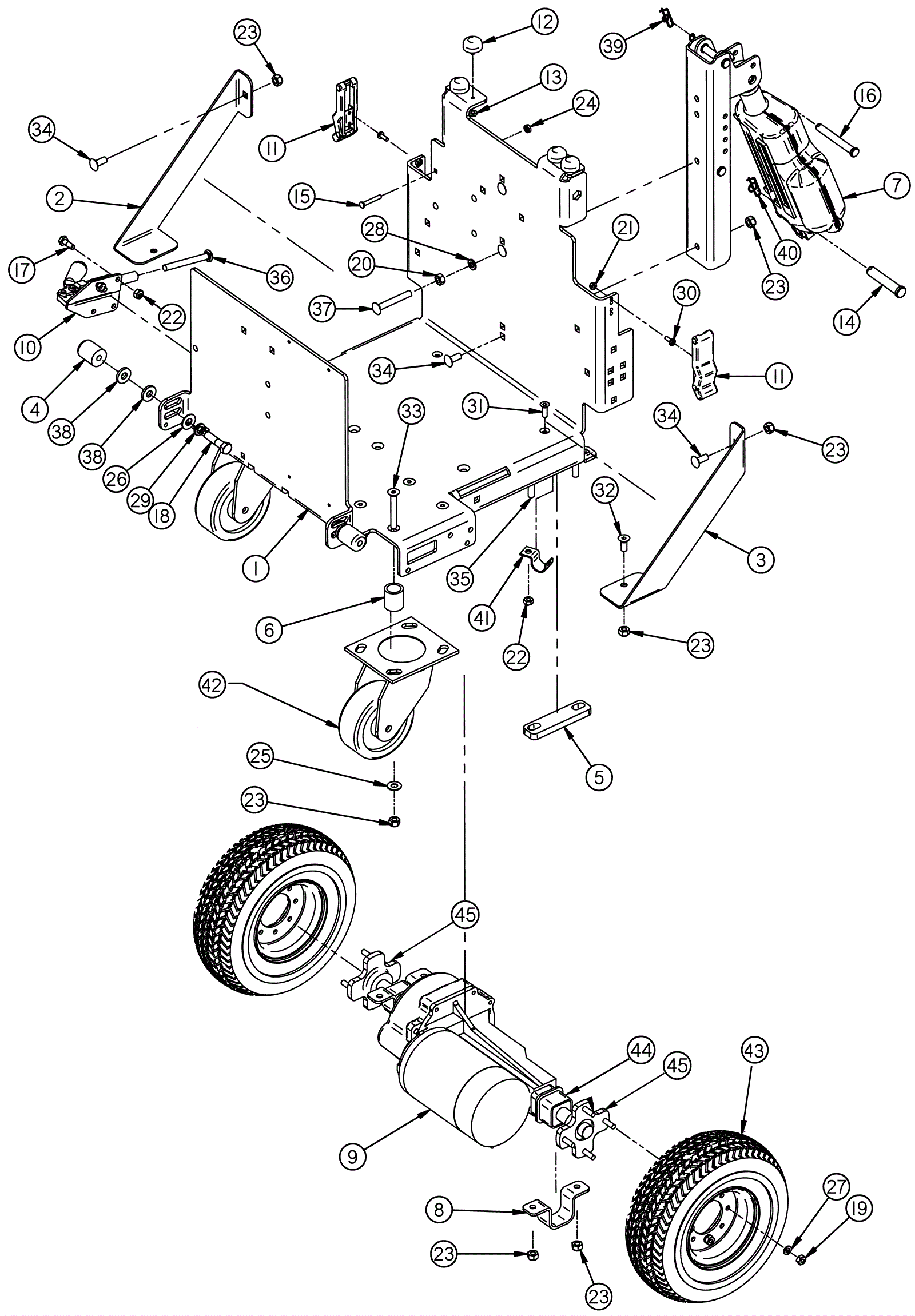

MINI MAG Frame Assembly - Traction Drive - Standard

#PartDescriptionPriceReqNotesAvailability
1 202-4134 Main frame $443.19 1 usually ships 1-5 days
2 202-4135 Left side frame support $23.32 1 usually ships 1-5 days
3 202-4136 Right side frame support $23.32 1 usually ships 1-5 days
4 202-4137 Spacer $22.37 2 usually ships 3-11 days
5 202-4138 Spacer $27.06 2 usually ships 1-5 days
6 202-4139 Spacer $8.14 8 usually ships 1-5 days
7 202-2220 24V 4 stroke actuator $436.04 1 usually ships 3-11 days
8 202-0911 Axle mount $17.93 2 usually ships 1-5 days
9a 202-0908 Transaxle assembly $949.74 1 (includes 9b and 9c) usually ships 3-11 days
9b 202-3417 24V drive motor $361.79 1 usually ships 3-11 days
9c 202-1366 Transaxle drive hub with hardware $432.60 1 usually ships 3-11 days
10 202-3411 Parking brake $138.82 1 (optional) usually ships 1-5 days
11 202-1487 Latch $25.19 2 usually ships 3-11 days
12 202-3543 10-24 x 1 threaded stud $6.71 4 ships same day
13 202-2817 Nut 10-24 nylock jam stainless steel $6.71 4 usually ships 1-5 days
14 202-4141 Clevis pin 1/2 x 2 1/2 inch $5.50 1 usually ships 1-5 days
15 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel $1.97 4 usually ships 1-5 days
16 202-4142 Clevis pin 3/8 x 3 inch $9.46 1 usually ships 3-11 days
17 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
18 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel $5.50 2 usually ships 3-11 days
19 999-0609 Nut 1/4-20 hex stainless steel $0.99 8 ships same day
20 999-0593 Nut 5/16-18 hex stainless steel $0.99 9 ships same day
21 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
22 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
23 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 19 ships same day
24 202-2067 Nut 10-32 keps $5.50 4 usually ships 3-11 days
25 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
26 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
27 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
28 999-0553 Washer 5/16 medium split lock stainless steel $0.99 9 ships same day
29 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
30 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
31 999-1571 Screw 1/4-20 x 3/4 flat head socket stainless steel $0.99 1 ships same day
32 202-2831 Screw 5/16-18 x 3/4 flat head socket stainless steel $5.50 2 usually ships 3-11 days
33 202-2076 Screw 5/16 - 18 x 2-1/4 stainless steel $5.50 8 usually ships 1-5 days
34 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 5 ships same day
35 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 ships same day
36 999-1335 Bolt 5/16-18 x 3 round head carriage stainless steel $5.54 1 ships same day
37 999-1572 Bolt 5/16-18 x 2 1/4 round head carriage stainless steel $2.93 1 usually ships 1-5 days
38 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
39 202-2036 Cotter pin $8.25 1 usually ships 3-11 days
40 202-2059 Cotter ring $5.50 1 usually ships 3-11 days
41 202-3415 Strap $5.50 1 usually ships 3-11 days
42a 202-2064 Caster wheel (red) $110.11 1 usually ships 3-11 days
42b 202-4143 Solid caster wheel (gray) $135.96 1 usually ships 3-11 days
42c 202-0919 Non-marking Soft caster wheel (gray) $149.16 1 usually ships 3-11 days
43a 202-5722 8 inch poly tire with shims (gray) $266.09 2 (before SN 58812) ships same day
43b 202-0920 Solid tire (gray) $176.44 2 (before SN 58812) usually ships 3-11 days
43c 202-5722 8 inch poly tire with shims (gray) $266.09 2 (before SN 58812) ships same day
43d 202-0920 Solid tire (gray) $176.44 2 (after SN 58812) usually ships 3-11 days
44 202-1628 MOUNTING SLEEVE $5.50 1 usually ships 1-5 days
45 202-1366 Transaxle drive hub with hardware $432.60 2 usually ships 3-11 days
