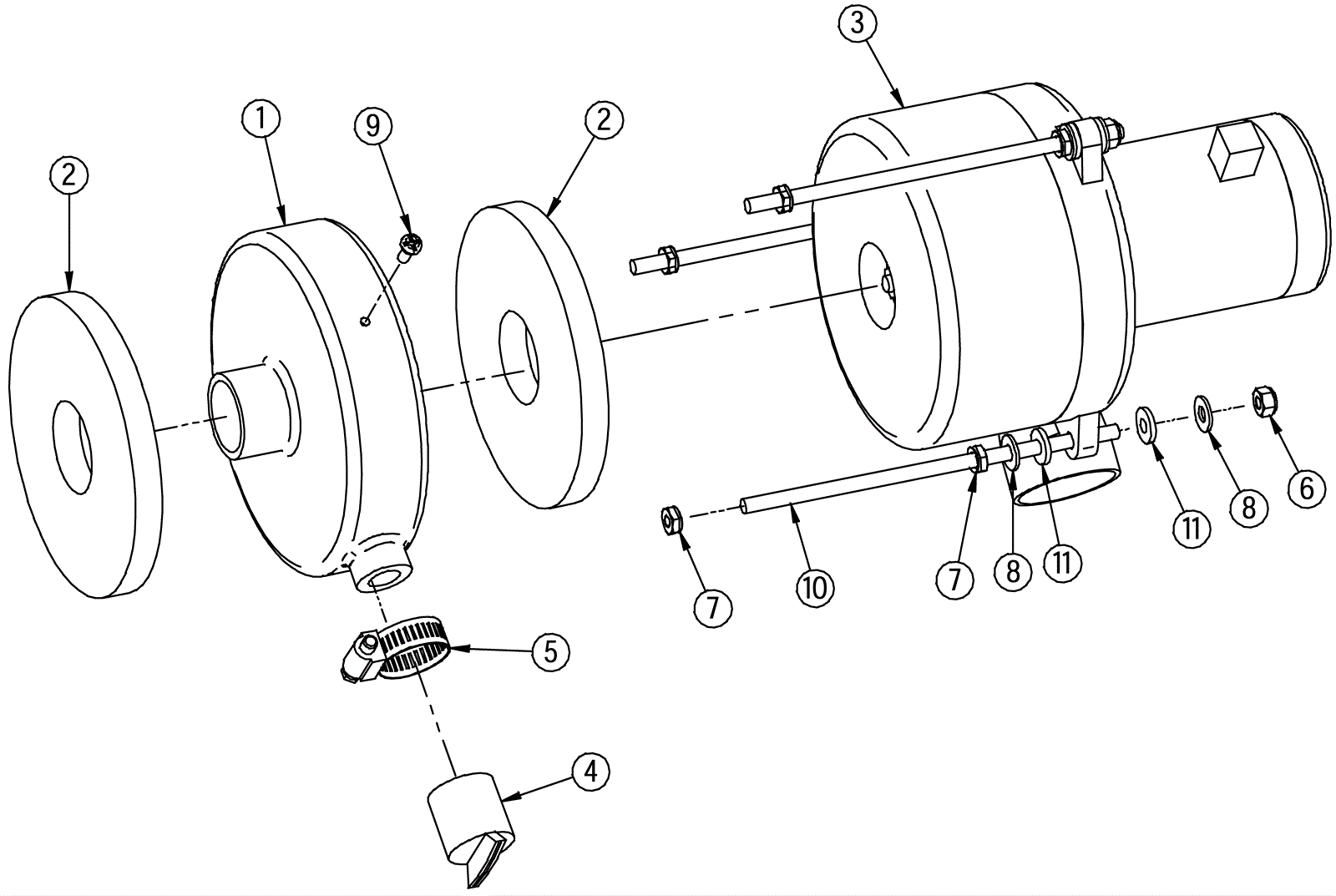

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1906
|
Vacuum motor housing |
1 |
|
|
2 |
202-1917
|
Vacuum motor gasket |
2 |
|
|
3a |
302-0265
|
24V 3 stage vacuum motor tangential |
1 |
(OEM) |
|
3b |
991-1210
|
24V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
4 |
202-1916
|
Unloader valve |
1 |
|
|
5 |
202-2066
|
Hose clamp |
1 |
|
|
6 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
7 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
6 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
9 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
1 |
|
|
10 |
202-3420
|
Stud |
3 |
|
|
11 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
6 |
|
|
