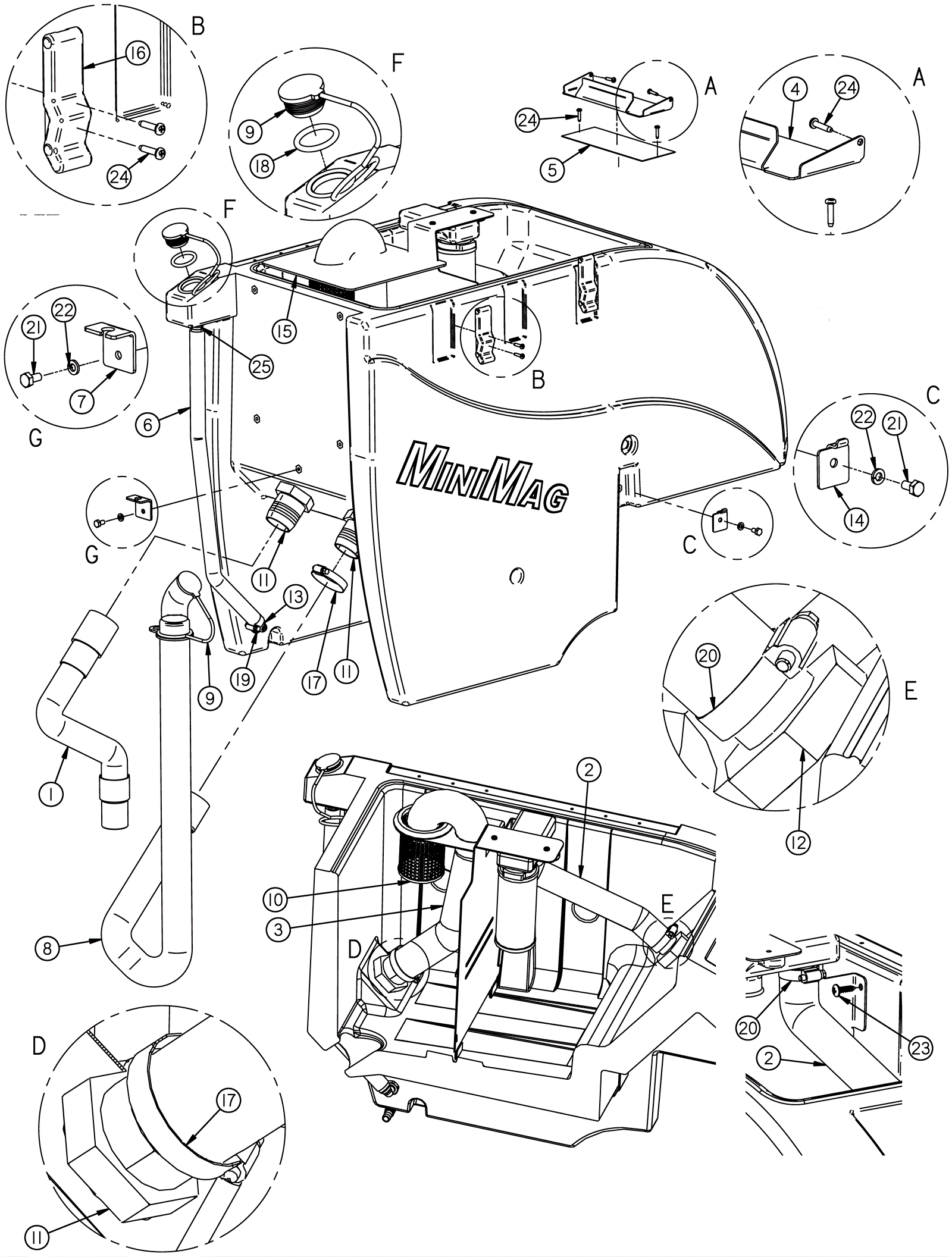

MINI MAG Upper Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-3023 Squeegee vacuum hose $33.77 1 ships same day
2 202-4101 Wire reinforced hose 1 1/2 x 15 inch (black) $20.46 1 usually ships 3-11 days
3 202-3363 Wire reinforced hose 2 x 22 inch (gray) $22.44 1 usually ships 3-11 days
4 202-4102 Solution fill lid $87.78 1 usually ships 3-11 days
5 202-4103 Screen $18.26 1 usually ships 3-11 days
6 202-4104 Sight hose $30.69 1 usually ships 3-11 days
7 202-4105 Squeegee cable guide $50.27 1 usually ships 1-5 days
8 202-2882 Drain hose with cap $55.18 1 ships same day
9 202-3373 Drain hose cap $18.26 2 ships same day
10 202-3036 Strainer screen $41.80 1 usually ships 3-11 days
11 202-2025 Hosebarb $21.23 3 usually ships 3-11 days
12 202-2118 Hosebarb $23.87 1 usually ships 3-11 days
13 202-2108 Nylon elbow $43.34 1 usually ships 3-11 days
14 202-3044 Clip $22.00 2 usually ships 3-11 days
15 202-3251 Splash panel $13.97 1 usually ships 3-11 days
16 202-1487 Latch $25.19 2 usually ships 3-11 days
17 997-2011 Hose clamp $2.67 2 ships same day
18 202-4106 O-ring $5.50 1 usually ships 3-11 days
19 202-1031 Clamp $6.71 1 usually ships 3-11 days
20 202-3256 Hose clamp $5.50 2 usually ships 3-11 days
21 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 3 ships same day
22 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
23 999-1290 Screw #14 x 1 truss head phillips stainless steel $0.99 2 ships same day
24 999-1882 Screw #6 x 1/2 inch pan head phillips stainless steel $0.99 8 usually ships 11-24 days
25 202-3439 Male brass fitting $14.41 1 usually ships 3-11 days
