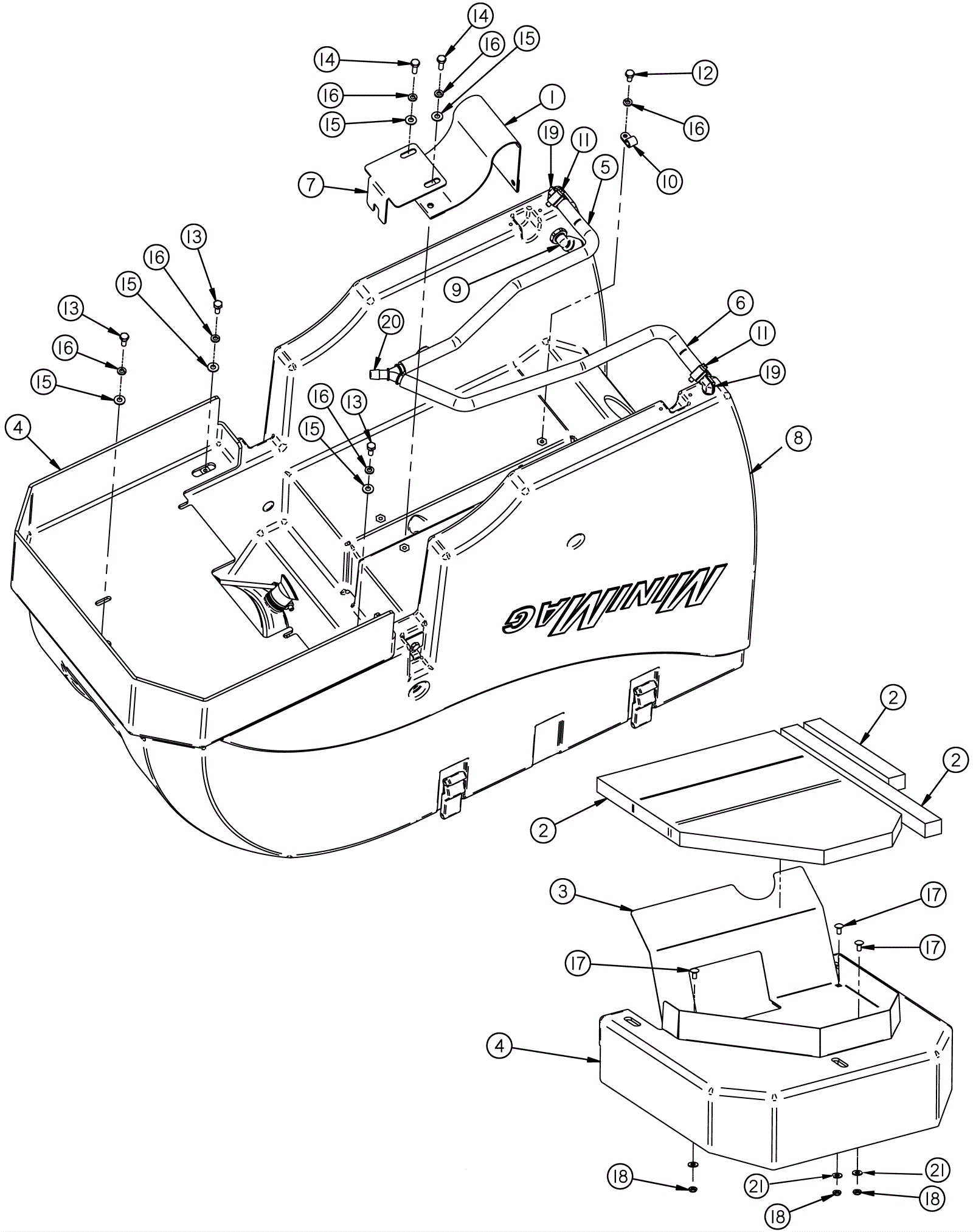

MINI MAG Lower Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-4091 Tank strap $27.17 1 usually ships 3-11 days
2 202-4092 Vacuum motor insulation $45.98 1 usually ships 3-11 days
3 202-4093 Vacuum motor insulation support $175.47 1 usually ships 3-11 days
4 202-4094 Cover $84.04 1 usually ships 3-11 days
5 202-4095 Wire reinforced hose 1/2 x 21 inch $15.40 1 usually ships 3-11 days
6 202-4096 Wire reinforced hose 1/2 x 23 inch $16.50 1 usually ships 3-11 days
7 202-4097 Plate $52.25 1 usually ships 1-5 days
8 202-4098 Solution and recovery tank (granite) $1,970.54 1 usually ships 3-11 days
9 202-2108 Nylon elbow $43.34 1 usually ships 3-11 days
10 202-2189 Loop clamp rubber $5.50 1 usually ships 3-11 days
11 202-0680 Hose clamp $5.50 2 usually ships 3-11 days
12 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
13 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 3 ships same day
14 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
16 999-0632 Washer 1/4 split lock stainless steel $0.99 6 ships same day
18 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 ships same day
19 202-4100 Barbed elbow 3/8 x 1/2 inch $7.81 2 usually ships 3-11 days
20 202-3239 Tee $10.78 1 usually ships 3-11 days
21 999-0975 Washer 1/4 x 1 1/4 fender stainless steel $0.99 3 ships same day
