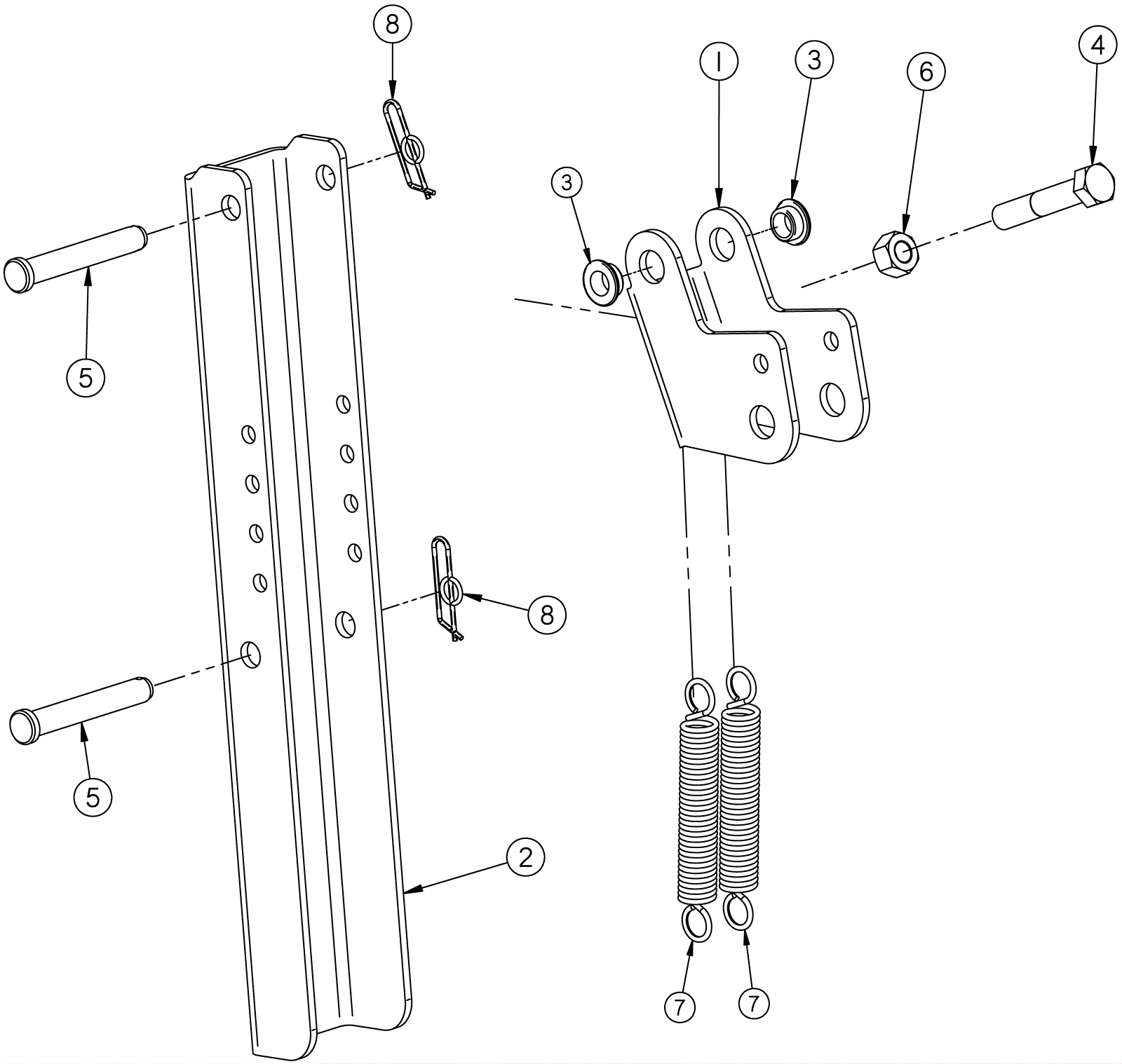

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
202-2200
|
Actuator bracket |
1 |
(edge deck) |
usually ships 11-19 days |
1b |
202-7359
|
Arm, Actuator |
1 |
(disk deck) |
usually ships 11-19 days |
2 |
202-2201
|
Actuator weldment |
1 |
|
usually ships 1-5 days |
3 |
202-1239
|
Flanged bearing |
2 |
|
usually ships 11-19 days |
4 |
999-1567
|
Screw 3/8-24 x 2 hex head stainless steel |
1 |
|
usually ships 11-14 days |
5 |
202-5193
|
Clevis pin 3/8 x 2 |
2 |
|
usually ships 11-19 days |
6 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
1 |
|
usually ships 11-14 days |
7 |
202-2208
|
Compression spring |
2 |
|
usually ships 11-19 days |
8 |
202-2036
|
Cotter pin |
2 |
|
usually ships 11-19 days |
