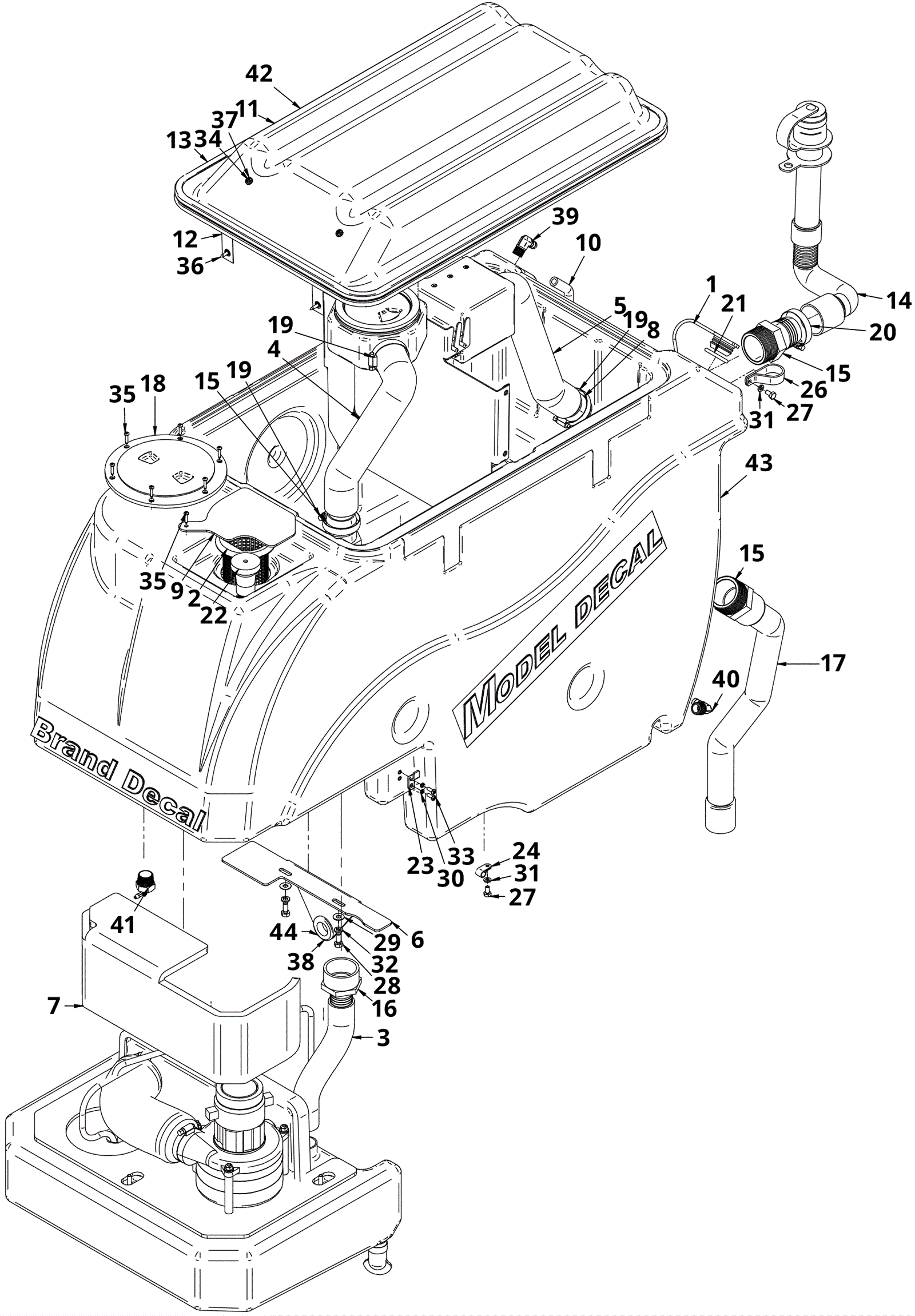

MINI-HD Standard XL Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-3373 Drain hose cap $18.26 1 ships same day
2 202-3036 Strainer screen $41.80 1 usually ships 8-12 days
3 202-6302 Hose, Baffle to Tank $35.31 1 usually ships 8-12 days
4 202-6303 Hose, Clean Air Intake $18.26 1 usually ships 8-12 days
5 202-6304 Hose, Inner Tank $21.23 1 usually ships 8-12 days
6 202-6322 Bracket, Lift Arm Support $37.62 1 usually ships 8-12 days
7 202-6348 Soundeading Kit $54.45 1 usually ships 8-12 days
8 202-2025 Hosebarb $21.23 1 usually ships 8-12 days
9 202-6360 Curtain, Splash $17.93 1 usually ships 8-12 days
10 202-6371 Tube, Sight, 21/23 Gal $56.32 1 usually ships 8-12 days
11 202-6378 Clear Lid Assembly $630.67 1 usually ships 8-12 days
12 202-6381 Tank Lid Strap W/Grommets $20.24 2 usually ships 8-12 days
13 202-6412 Push On Rubber Gasket Clear Lid $63.58 1 ships same day
14 202-3582 Drain hose assembly $123.41 1 usually ships 8-12 days
15 202-2025 Hosebarb $21.23 3 usually ships 8-12 days
16 202-2118 Hosebarb $23.87 1 usually ships 8-12 days
17 202-3023 Squeegee vacuum hose $33.77 1 ships same day
18 202-7054 Lid,Screw-On,Tank $130.46 1 usually ships 8-12 days
19 997-2011 Hose clamp $2.67 3 ships same day
20 997-2011 Hose clamp $2.67 1 ships same day
21 202-4106 O-ring $5.50 1 usually ships 8-12 days
22 202-4200 Fill hose $66.56 1 usually ships 8-12 days
23 202-4232 Clip Call for price 2 usually ships 8-12 days
24 202-2189 Loop clamp rubber $5.50 1 usually ships 8-12 days
26 202-3175 P clamp $8.91 1 usually ships 1-5 days
27 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
28 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
29 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
30 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
31 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
32 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
33 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 4 ships same day
34 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
35 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 7 ships same day
36 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
37 202-3244 Neoprene washer $5.50 4 usually ships 8-12 days
38 202-2592 Grommet $5.50 1 usually ships 8-12 days
39 202-4100 Barbed elbow 3/8 x 1/2 inch $7.81 1 usually ships 8-12 days
40 202-3440 Barbed elbow $23.32 2 usually ships 8-12 days
41 202-9496 Elbow, 1/4 inch Barb x 3/4 inch NPT Black $5.50 1 usually ships 8-12 days
42 202-4291 Metal cover $423.06 1 usually ships 8-12 days
43a 202-6416 Tank,Solution/Recovery,Granite, Complete XL Tank $1,906.52 1 usually ships 8-12 days
43b 202-4233 Tank (red) $1,933.47 1 usually ships 8-12 days
43c 202-4292 Tank (green) $917.40 1 usually ships 8-12 days
44 202-4234 Back cord tip $36.74 1 usually ships 8-12 days
N/S 999-1269 Nut 10-32 nylon insert jam stainless steel $0.99 2 usually ships 12-18 days
