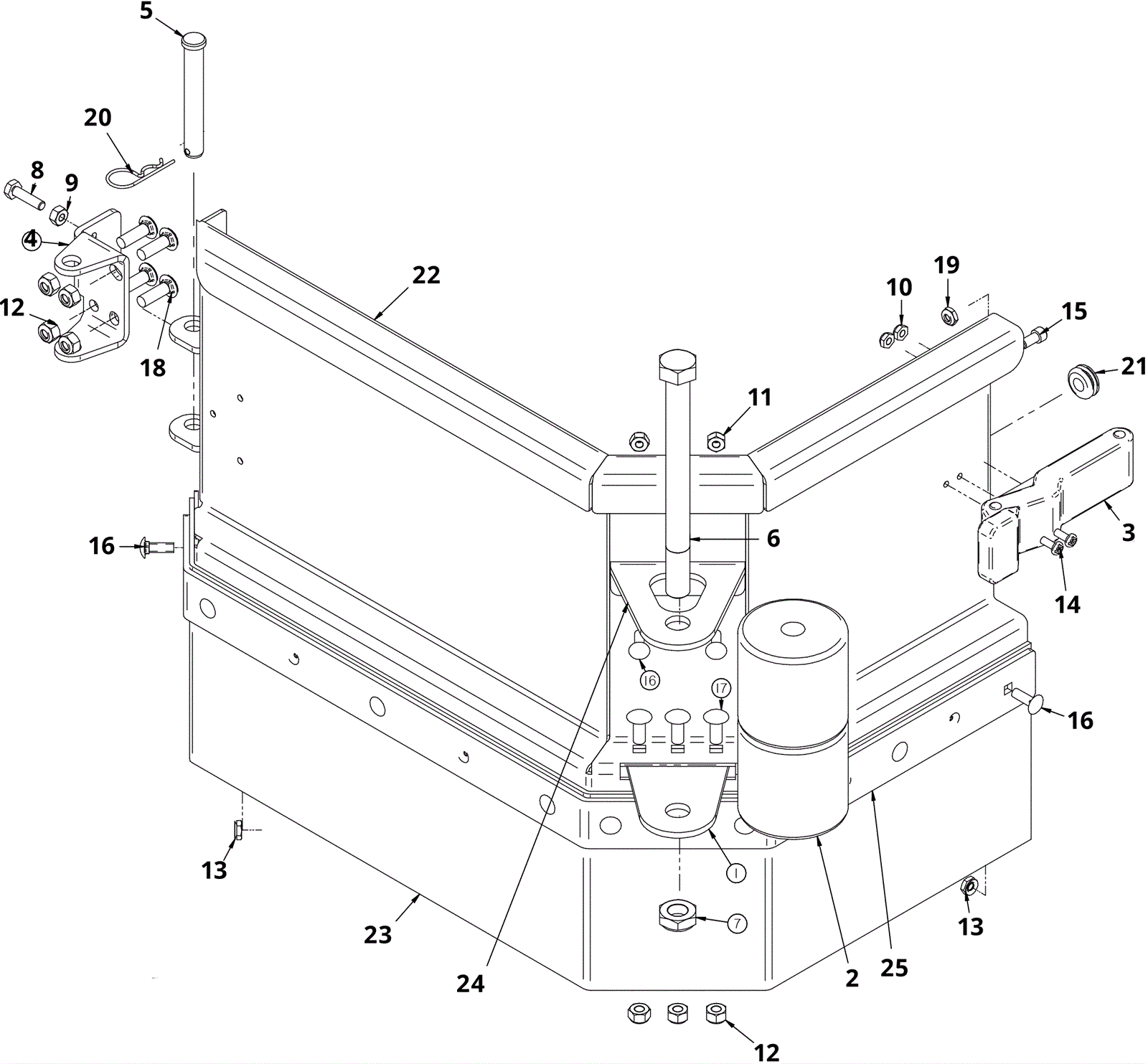

MINI-HD Jaws Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6342 Bracket, Roller $17.71 1 usually ships 8-12 days
2 202-0756 Guide roller $28.16 2 usually ships 8-12 days
3 202-5630 Soft draw latch $59.51 1 usually ships 8-12 days
4a 202-6983 Hinge, Inner Jaw, RH $36.41 1 usually ships 8-12 days
4b 202-6982 Hinge, Inner Jaw, LH $36.41 1 usually ships 8-12 days
5 202-3173 Clevis pin $6.71 1 usually ships 1-5 days
6 999-6723 Bolt 5/8-11 x 7 hex head grade 5 zinc plated $12.54 1 ships same day
7 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 1 ships same day
8 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
9 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
10 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 7 ships same day
13 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 9 ships same day
14 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 2 ships same day
15 202-3157 Screw 1/4 x 1/4 inch socket head stainless steel $5.50 1 (right hand) usually ships 8-12 days
16 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 11 ships same day
17 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 3 ships same day
18 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 4 ships same day
19 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 1 (right hand) ships same day
20 202-3129 Cotter pin $5.50 1 usually ships 8-12 days
21 202-3348 Rubber grommet $4.40 1 (right hand) usually ships 8-12 days
22a 202-6363 Jaw, RH, 13 inch 21/23 Gallon $435.71 1 usually ships 8-12 days
22b 202-6366 Jaw, LH, 13 inch 21/23 Gallon $435.71 1 usually ships 8-12 days
22c 202-6374 Jaw, RH, 14 inch 21/23 Gallon $387.53 1 usually ships 8-12 days
22d 202-6379 Jaw, LH, 14 inch 21/23 Gallon $387.53 1 usually ships 8-12 days
22e 202-6365 Jaw, RH, 13 inch 16/17 Gallon $326.81 1 usually ships 8-12 days
22f 202-6368 Jaw, LH, 13 inch 16/17 Gallon $326.81 1 usually ships 8-12 days
22g 202-6376 Jaw, RH, 14 inch 16/17 Gallon $312.95 1 usually ships 8-12 days
22h 202-6382 Jaw, LH, 14 inch 16/17 Gallon $312.95 1 usually ships 8-12 days
23a 202-6369 Curtain, Jaw, 13 inch $63.03 1 usually ships 8-12 days
23b 202-6383 Curtain, Jaw, 14 inch $68.64 1 usually ships 8-12 days
24a 202-6338 Bracket, Roller, Jaw, 26 inch $29.37 1 usually ships 8-12 days
24b 202-6340 Bracket, Roller, jaw, 28 inch $27.39 1 usually ships 8-12 days
24c 202-6336 Bracket, Roller, Jaw, 26 inch $46.20 1 usually ships 8-12 days
24d 202-6337 Bracket, Roller, Jaw, 28 inch $39.71 1 usually ships 8-12 days
25a 202-6370 Band, Jaw, 13 inch $79.97 1 usually ships 8-12 days
25b 202-6384 Band, Jaw, 14 inch $86.24 1 usually ships 8-12 days
