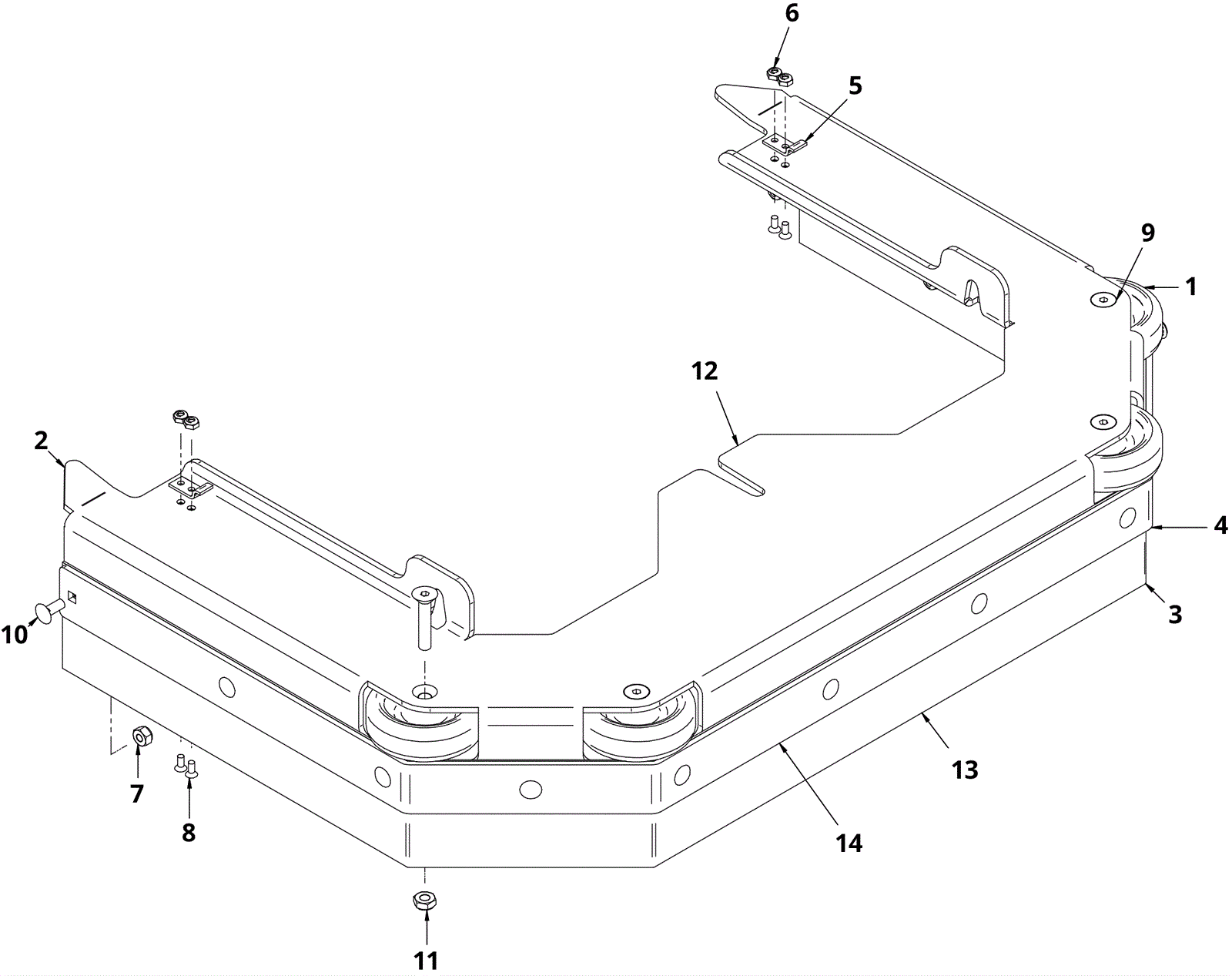

MINI-HD Disk Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5405 3 inch wheel $8.80 4 usually ships 8-12 days
2 202-6331 Shroud, 26 inch 16/17 Gallon $362.12 1 usually ships 8-12 days
3 202-6355 Curtain, Shroud, 26 inch $132.66 1 usually ships 8-12 days
4 202-6357 Band, Shroud, 26 inch $113.19 1 usually ships 8-12 days
5 202-1487 Latch $25.19 2 usually ships 8-12 days
6 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 12 ships same day
8 202-3267 Screw 8-32 x 3.8 inch flat head phillips stainless steel $5.50 4 usually ships 1-5 days
9 999-1444 Screw 5/16-18 x 5/8 flat socket head stainless steel $1.83 4 ships same day
10 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 12 usually ships 8-12 days
11 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 4 ships same day
12a 202-6331 Shroud, 26 inch 16/17 Gallon $362.12 1 usually ships 8-12 days
12b 202-6334 Shroud, 28 inch 21/23 Gallon $492.36 1 usually ships 8-12 days
13a 202-6355 Curtain, Shroud, 26 inch $132.66 1 usually ships 8-12 days
13b 202-6356 Curtain, Shroud, 28 inch $132.66 1 usually ships 8-12 days
14a 202-6357 Band, Shroud, 26 inch $113.19 1 usually ships 8-12 days
14b 202-6358 Band, Shroud, 28 inch $112.31 1 usually ships 8-12 days
