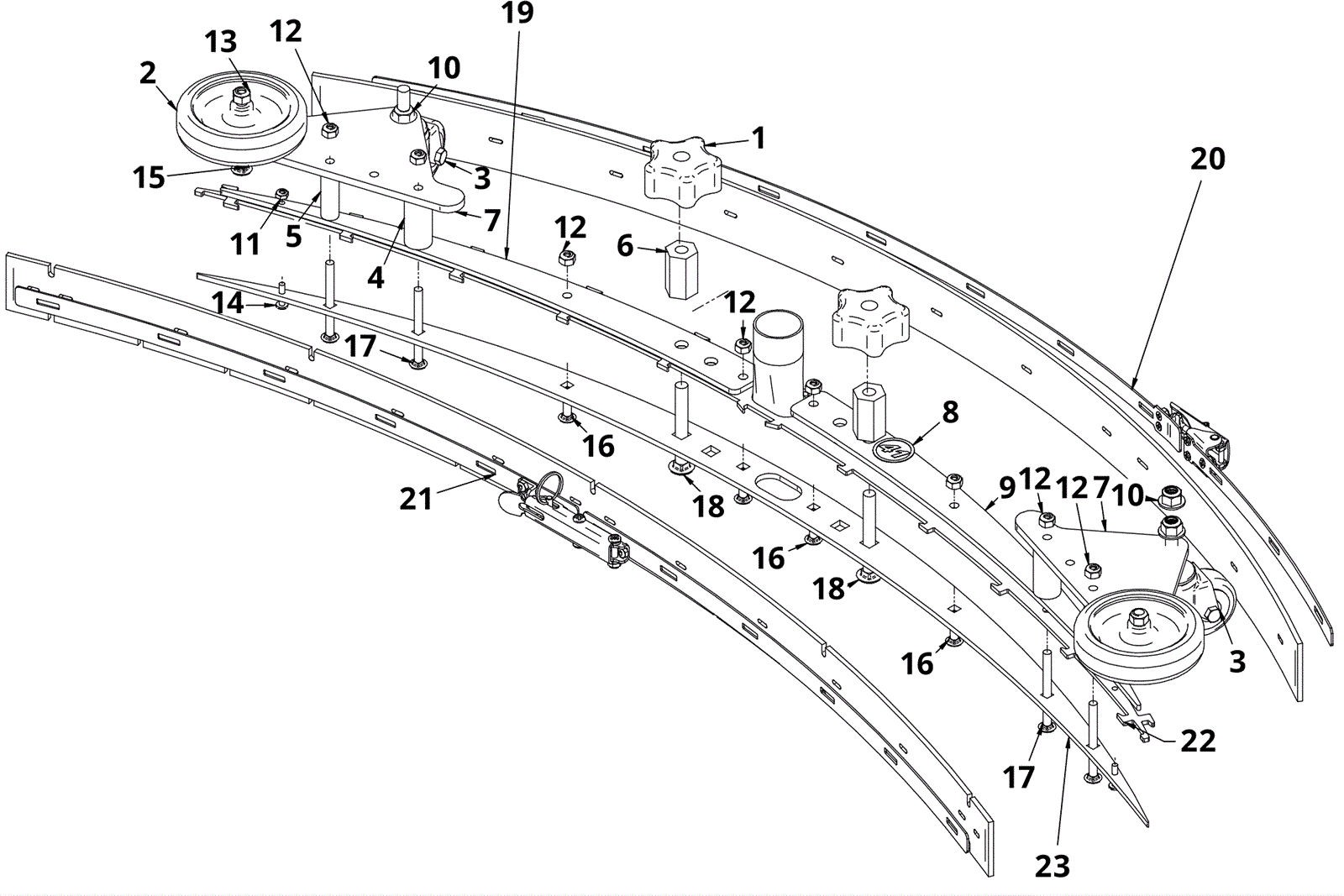

MINI-HD Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5078 Star knob $15.29 2 ships same day
2 202-5079 4 inch wheel $10.23 2 usually ships 8-13 days
3 202-3590 2 inch caster (gray) $54.78 2 usually ships 8-13 days
4 202-4281 Squeegee roller spacer $15.73 2 usually ships 8-13 days
5 202-4282 Squeegee roller spacer $10.45 2 usually ships 8-13 days
6 202-3651 1 1/2 inch standoff $17.82 2 usually ships 8-13 days
7 202-9919 Squeegee caster bracket $31.79 2 usually ships 8-13 days
8 202-3656 41 inch squeegee decal $5.50 1 usually ships 8-13 days
9 202-3657 41 inch squeegee weight $55.00 2 usually ships 8-13 days
10 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 4 ships same day
11 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
13 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
14 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
15 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel $5.50 2 usually ships 8-13 days
16 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel $1.23 4 ships same day
17 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
18 999-0626 Screw 3/8-16 x 3 carriage head stainless steel $5.50 2 ships same day
19a 202-3667 31 inch squeegee weight $28.16 1 usually ships 8-13 days
19b 202-3668 33 inch squeegee weight $37.95 1 usually ships 8-13 days
19c 202-3669 37 inch squeegee weight $49.39 1 usually ships 8-13 days
19d 202-3657 41 inch squeegee weight $55.00 1 usually ships 8-13 days
19e 202-3670 45 inch squeegee weight $48.97 1 usually ships 8-13 days
20a 202-3671 Squeegee band 31 inch rear with latch $138.93 1 usually ships 8-13 days
20b 202-3672 Squeegee band 33 inch rear with latch $133.65 1 usually ships 8-13 days
20c 202-3673 Squeegee band 37 inch rear with latch $138.27 1 ships same day
20d 202-9610 Squeege band rear $145.42 1 usually ships 8-13 days
20e 202-3674 Squeegee band 45 inch rear with latch $151.58 1 usually ships 8-13 days
21a 202-3675 Squeegee band 31 inch front with latch $136.40 1 usually ships 8-13 days
21b 202-3676 Squeegee band 33 inch front with latch $133.21 1 usually ships 8-13 days
21c 202-3677 Squeegee band 37 inch front with latch $136.18 1 usually ships 8-13 days
21d 202-3678 Squeegee band 41 inch front with latch $139.26 1 usually ships 8-13 days
21e 202-3679 Squeegee band 45 inch front with latch $157.74 1 usually ships 8-13 days
22a 202-3680 Squeegee body 31 inch stainless steel $138.05 1 usually ships 8-13 days
22b 202-3681 Squeegee body 33 inch stainless steel $104.50 1 usually ships 8-13 days
22c 202-3682 Squeegee body 37 inch stainless steel Call for price 1 usually ships 8-13 days
22d 202-3683 Squeegee body 41 inch stainless steel $153.89 1 usually ships 8-13 days
22e 302-0163 45 inch squeegee body $1,450.90 1 usually ships 8-13 days
23a 202-3685 Squeegee spacer 31 inch bottom $81.29 1 usually ships 8-13 days
23b 202-3686 Squeegee spacer 33 inch bottom $205.59 1 usually ships 8-13 days
23c 202-3687 Squeegee spacer 37 inch bottom (OBSOLETE) $86.90 1 usually ships 8-13 days
23d 202-3688 Squeegee spacer 41 inch bottom $125.29 1 usually ships 8-13 days
23e 202-3689 Squeegee spacer 45 inch bottom $362.45 1 usually ships 8-13 days
KIT1 202-3642 31 inch squeegee assembly $808.39 1 (includes 19a, 21a, 22a, 22a, 23a) usually ships 8-13 days
KIT2 202-3643 33 inch squeegee assembly $869.22 1 (includes 19b, 21b, 22b, 22b, 23b) usually ships 8-13 days
KIT3 202-3644 37 inch squeegee assembly $846.12 1 (includes 19c, 21c, 22c, 22c, 23c) usually ships 8-13 days
KIT4 202-3645 41 inch squeegee assembly $856.46 1 (includes 19d, 21d, 22d, 22d, 23d) usually ships 8-13 days
KIT5 202-3646 45 inch squeegee assembly $992.20 1 (includes 19e, 21e, 22e, 22e, 23e) usually ships 8-13 days
