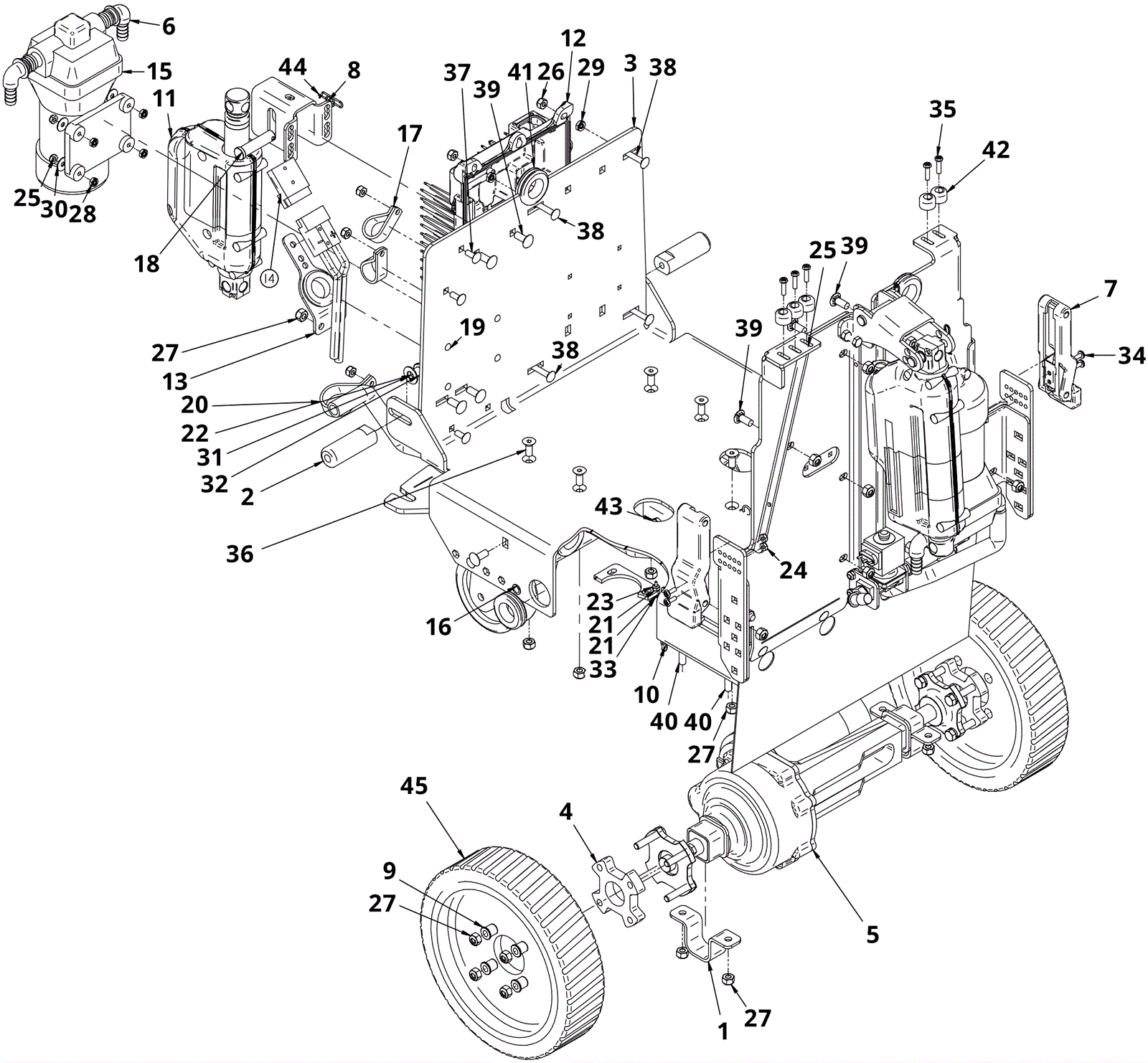

MINI-HD Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6313 Axle Mount $12.87 2 usually ships 8-12 days
2 202-6323 Boss, 2-3/4 inch $39.71 2 usually ships 8-12 days
3 202-6329 Frame, Carbon, MS $1,121.12 1 usually ships 8-12 days
4 202-6402 Spacer, Pnuematic Tire $141.57 2 usually ships 8-12 days
5 202-6406 Transaxle, 24V, W/Hubs and Connectors $968.00 1 usually ships 8-12 days
6 202-1008 Barbed elbow $20.79 4 usually ships 8-12 days
7 202-5630 Soft draw latch $59.51 2 usually ships 8-12 days
8 202-5026 Squeegee lifting bracket $52.80 1 usually ships 8-12 days
9 202-3312 Flanged bearing $7.04 8 usually ships 8-12 days
10 202-3409 12 inch grounding chain $12.65 1 usually ships 8-12 days
11 202-4042 24V actuator $330.11 1 usually ships 8-12 days
12 202-7022 Charger, 24V,37A Onboard, Universal Charger w/Power Cord $1,439.46 1 usually ships 8-12 days
13 202-7091 Bracket, Charger Connector $24.97 1 usually ships 8-12 days
15 202-0101 60 PSI water jet pump $712.91 2 usually ships 8-12 days
16 202-5284 Nut 1/4-20 hex crimp long $5.50 4 usually ships 1-5 days
17 202-3619 3/4 inch loop clamp $6.71 2 usually ships 8-12 days
18 202-3401 Clevis pin $5.50 1 usually ships 8-12 days
19 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel $1.97 8 usually ships 1-5 days
20 202-3175 P clamp $8.91 1 usually ships 1-5 days
21 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
22 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
23 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 1 ships same day
24 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 4 ships same day
25 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 17 ships same day
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 11 ships same day
27 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 35 ships same day
28 202-2067 Nut 10-32 keps $5.50 10 usually ships 8-12 days
29 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
30 202-3316 Washer flat stainless steel $5.50 10 usually ships 8-12 days
31 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
32 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
33 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
34 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
35 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 5 ships same day
36 202-2831 Screw 5/16-18 x 3/4 flat head socket stainless steel $5.50 5 usually ships 8-12 days
37 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 3 usually ships 8-12 days
38 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel $1.03 4 ships same day
39 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 20 ships same day
40 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel $1.34 4 ships same day
41 202-2592 Grommet $5.50 5 usually ships 8-12 days
42 202-3275 Rubber bumper $5.50 5 usually ships 8-12 days
43 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 2 ships same day
44 202-2059 Cotter ring $5.50 1 usually ships 8-12 days
45a 202-6422 Wheel Assembly,Black,Poly,10 inch Plastic Hub, Grooved, W/Bu $269.17 2 usually ships 8-12 days
45b 202-0921 10 inch poly wheel assembly $257.73 2 usually ships 8-12 days
45c 202-6408 Tire Pneumatic Grey Stud $104.06 2 usually ships 8-12 days
45d 202-6409 Tire Pneumatic Black Stud $84.59 2 usually ships 8-12 days
N/S 991-2103 50amp charger plug SB50 with pins (red) $6.17 2 ships same day
