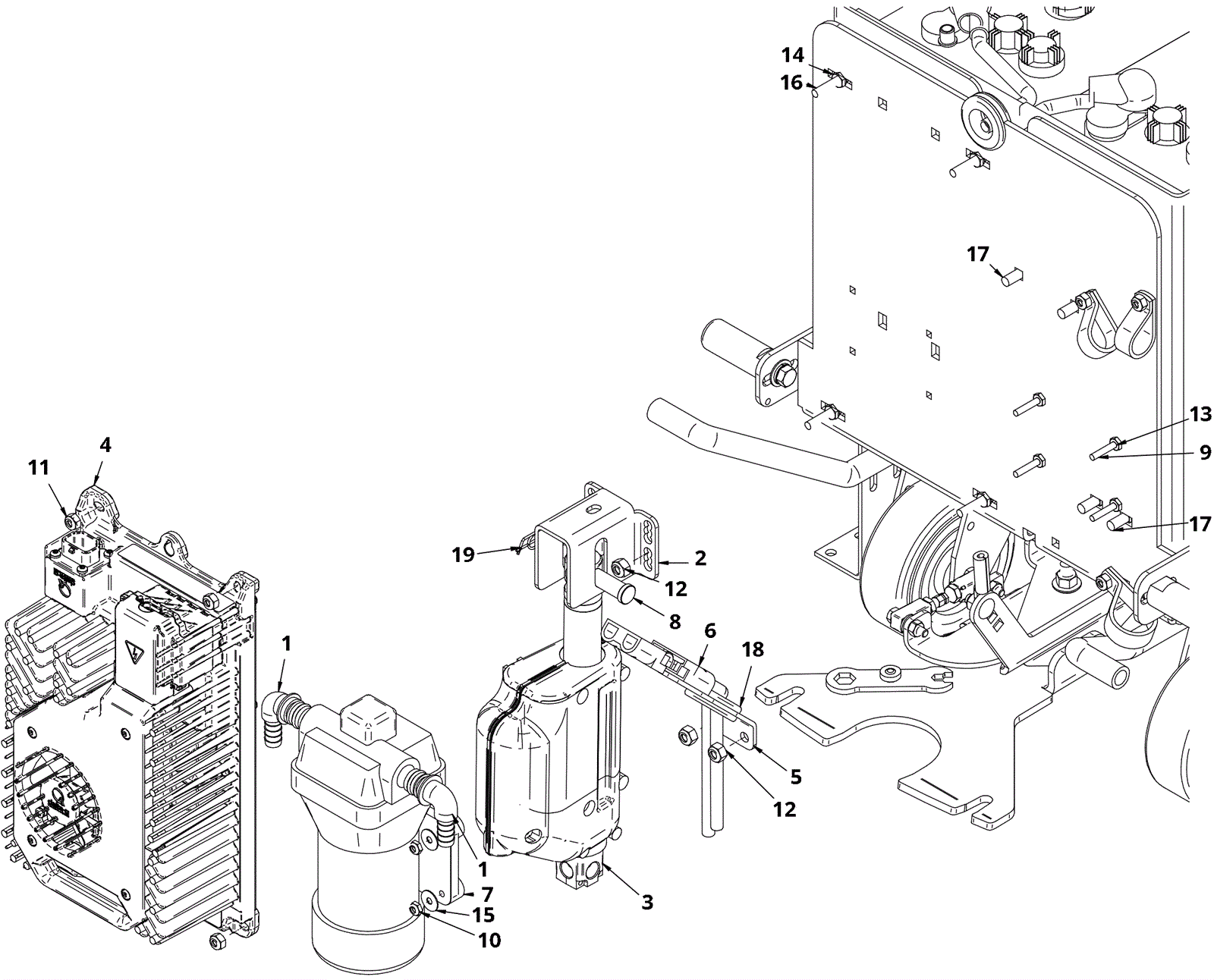

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-1008
|
Barbed elbow |
2 |
|
|
2 |
202-5026
|
Squeegee lifting bracket |
1 |
|
|
3 |
202-4042
|
24V actuator |
1 |
|
|
4 |
202-7022
|
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
|
|
5 |
202-7091
|
Bracket, Charger Connector |
1 |
|
|
6 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
7 |
202-0101
|
60 PSI water jet pump |
1 |
|
|
8 |
202-3401
|
Clevis pin |
1 |
|
|
9 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
|
10 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
11 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
12 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
13 |
202-2067
|
Nut 10-32 keps |
1 |
|
|
14 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
|
15 |
202-3316
|
Washer flat stainless steel |
1 |
|
|
16 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
1 |
|
|
17 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
|
18 |
202-2592
|
Grommet |
1 |
|
|
19 |
202-2059
|
Cotter ring |
1 |
|
|
