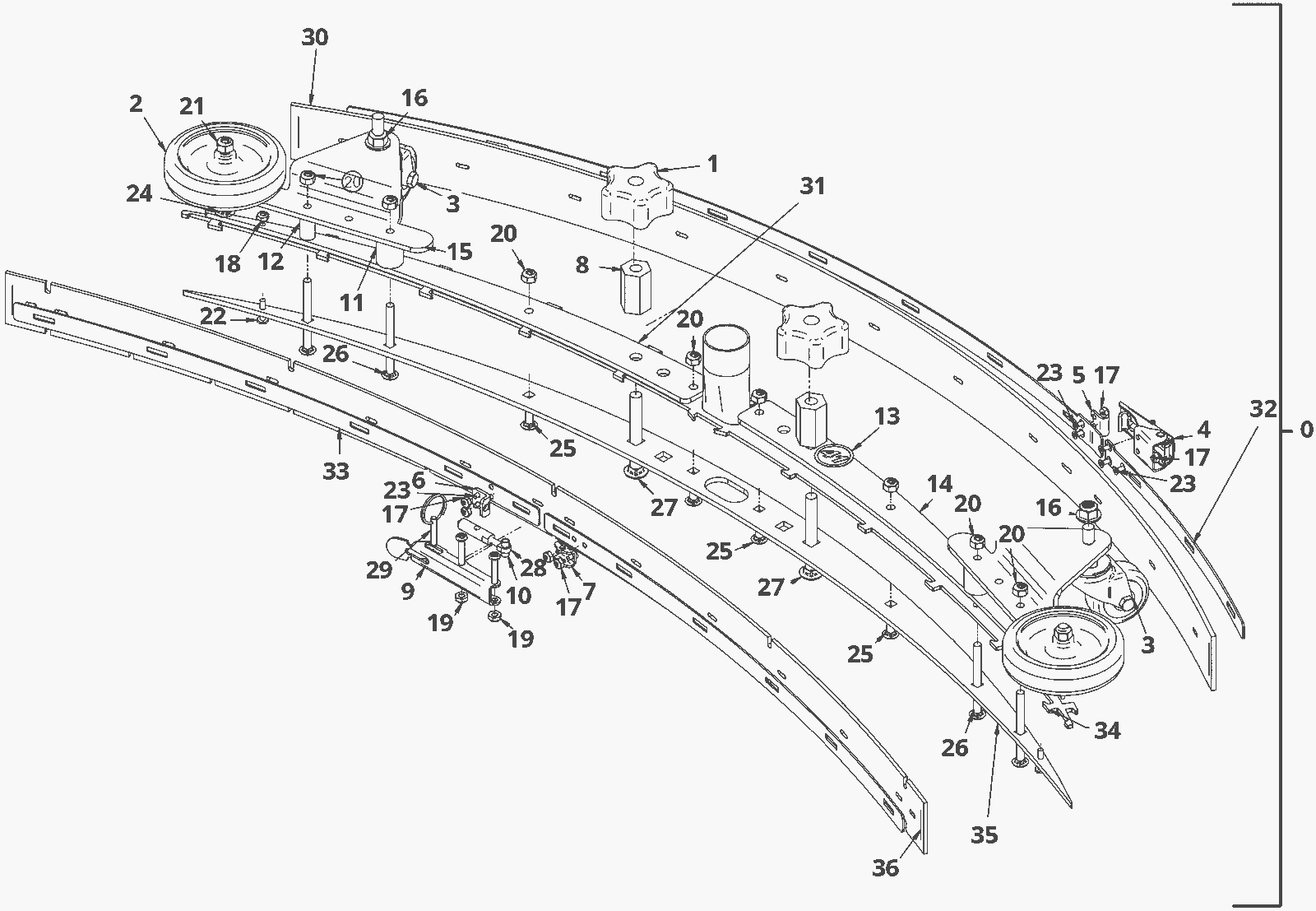

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
202-3642
|
31 inch squeegee assembly |
1 |
(includes 1-29, 30a, 31a, 32a, 33a, 34a, 35a, 36a) |
|
0b |
202-3643
|
33 inch squeegee assembly |
1 |
(includes 1-29, 30b, 31b, 32b, 33b, 34b, 35b, 36b) |
|
0c |
202-3644
|
37 inch squeegee assembly |
1 |
(includes 1-29, 30c, 31c, 32c, 33c, 34c, 35c, 36c) |
|
0d |
202-3645
|
41 inch squeegee assembly |
1 |
(includes 1-29, 30d, 31d, 32d, 33d, 34d, 35d, 36d) |
|
0e |
202-3646
|
45 inch squeegee assembly |
1 |
(includes 1-29, 30e, 31e, 32e, 33e, 34e, 35e, 36e) |
|
1 |
202-5078
|
Star knob |
1 |
|
|
2 |
202-5079
|
4 inch wheel |
1 |
|
|
3 |
202-3590
|
2 inch caster (gray) |
2 |
|
|
4 |
202-3647
|
Latch |
1 |
|
|
5 |
202-3648
|
Band clip |
1 |
|
|
6 |
202-3649
|
Front band clip |
1 |
|
|
8 |
202-3651
|
1 1/2 inch standoff |
1 |
|
|
9 |
N/A
|
Not available |
1 |
(only available with front band assembly) |
|
10 |
202-3653
|
Spacer |
1 |
|
|
11 |
202-3654
|
Roller spacer |
1 |
|
|
12 |
202-3655
|
Roller spacer |
1 |
|
|
13 |
202-3656
|
41 inch squeegee decal |
1 |
|
|
14 |
202-3657
|
41 inch squeegee weight |
1 |
|
|
15 |
202-3658
|
Right hand squeegee castor bracket |
1 |
|
|
16 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
2 |
|
|
17 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
4 |
|
|
18 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
1 |
|
|
19 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
20 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
|
21 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
22 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
23 |
202-3659
|
Screw #6-32 x 5/16 inch flat head |
3 |
|
|
24 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
1 |
|
|
25 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
3 |
|
|
26 |
999-9136
|
Screw 1/4-20 x 2 3/4 pan head phillips stainless steel |
2 |
|
|
27 |
999-0626
|
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
|
28 |
N/A
|
Not available |
1 |
(only available with front band assembly) |
|
29 |
202-3661
|
Ring pin |
1 |
|
|
30a |
202-3662
|
Squeegee blade 31 inch linatex rear v2.1 |
1 |
|
|
30b |
302-0244
|
Squeegee blade 33 inch linatex rear |
1 |
|
|
30c |
202-3664
|
Squeegee blade 37 inch linatex rear |
1 |
|
|
30d |
202-9613
|
Squeegee blade rear linatex |
1 |
|
|
30e |
202-3666
|
Squeegee blade 45 inch linatex rear |
1 |
|
|
31a |
202-3667
|
31 inch squeegee weight |
1 |
|
|
31b |
202-3668
|
33 inch squeegee weight |
1 |
|
|
31c |
202-3669
|
37 inch squeegee weight |
1 |
|
|
31d |
202-3657
|
41 inch squeegee weight |
1 |
|
|
31e |
202-3670
|
45 inch squeegee weight |
1 |
|
|
32a |
202-3671
|
Squeegee band 31 inch rear with latch |
1 |
|
|
32b |
202-3672
|
Squeegee band 33 inch rear with latch |
1 |
|
|
32c |
202-3673
|
Squeegee band 37 inch rear with latch |
1 |
|
|
32d |
202-9610
|
Complete rear squeegee band |
1 |
|
|
32e |
202-3674
|
Squeegee band 45 inch rear with latch |
1 |
|
|
33a |
202-3675
|
Squeegee band 31 inch front with latch |
1 |
|
|
33b |
202-3676
|
Squeegee band 33 inch front with latch |
1 |
|
|
33c |
202-3677
|
Squeegee band 37 inch front with latch |
1 |
|
|
33d |
202-3678
|
Squeegee band 41 inch front with latch |
1 |
|
|
33e |
202-3679
|
Squeegee band 45 inch front with latch |
1 |
|
|
34a |
202-3680
|
Squeegee body 31 inch stainless steel |
1 |
|
|
34b |
302-0260
|
Squeegee body 33 inch stainless steel |
1 |
|
|
34c |
202-3682
|
Squeegee body 37 inch stainless steel |
1 |
|
|
34d |
202-3683
|
Squeegee body 41 inch stainless steel |
1 |
|
|
34e |
302-0163
|
45 inch squeegee body |
1 |
|
|
35a |
202-3685
|
Squeegee spacer 31 inch bottom |
1 |
|
|
35b |
202-3686
|
Squeegee spacer 33 inch bottom |
1 |
|
|
35c |
202-3687
|
Squeegee spacer 37 inch bottom (OBSOLETE) |
1 |
|
|
35d |
202-3688
|
Squeegee spacer 41 inch bottom |
1 |
|
|
35e |
202-3689
|
Squeegee spacer 45 inch bottom |
1 |
|
|
36a |
202-3690
|
Squeegee blade 31 inch linatex front v2.1 |
1 |
|
|
36b |
202-3691
|
Squeegee blade 33 inch linatex front |
1 |
|
|
36c |
202-3692
|
Squeegee blade 37 inch linatex front |
1 |
|
|
36d |
202-9611
|
Squeegee blade front linatex |
1 |
|
|
36e |
202-3694
|
Squeegee blade 45 inch linatex front |
1 |
|
|
