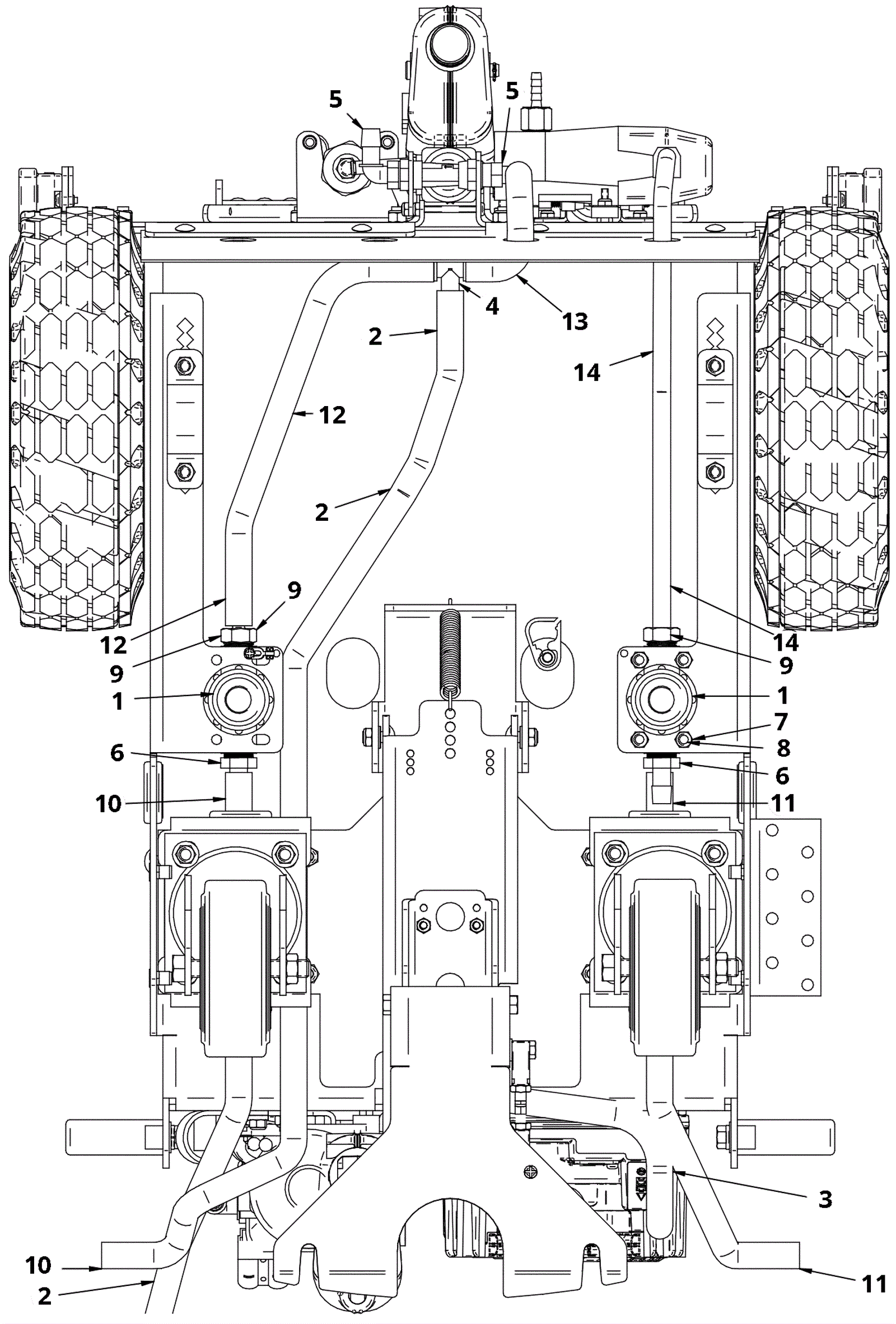

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3584
|
Inline filter |
2 |
|
|
2 |
202-6996
|
Tube, Sight, 35/37 Gal |
1 |
|
|
3 |
202-0104
|
18 foot rubber hose (blue) |
1 |
|
|
4 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
5 |
202-3236
|
Threaded barb |
2 |
|
|
6 |
202-3263
|
Fitting 1/2 x 1/2 inch |
2 |
|
|
7 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
8 |
202-5603
|
U-bolt 1/4-20 x 1 |
1 |
|
|
9 |
202-9493
|
Fitting,1/2 inchNPTx3/8 inchBarb,Straight |
2 |
|
|
10 |
202-4229
|
Hose 1/4 inch x 5 foot |
1 |
|
|
11 |
202-4229
|
Hose 1/4 inch x 5 foot |
1 |
|
|
12 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
13 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
14 |
202-4249
|
Hose 3/8 inch x 5 foot |
1 |
|
|
