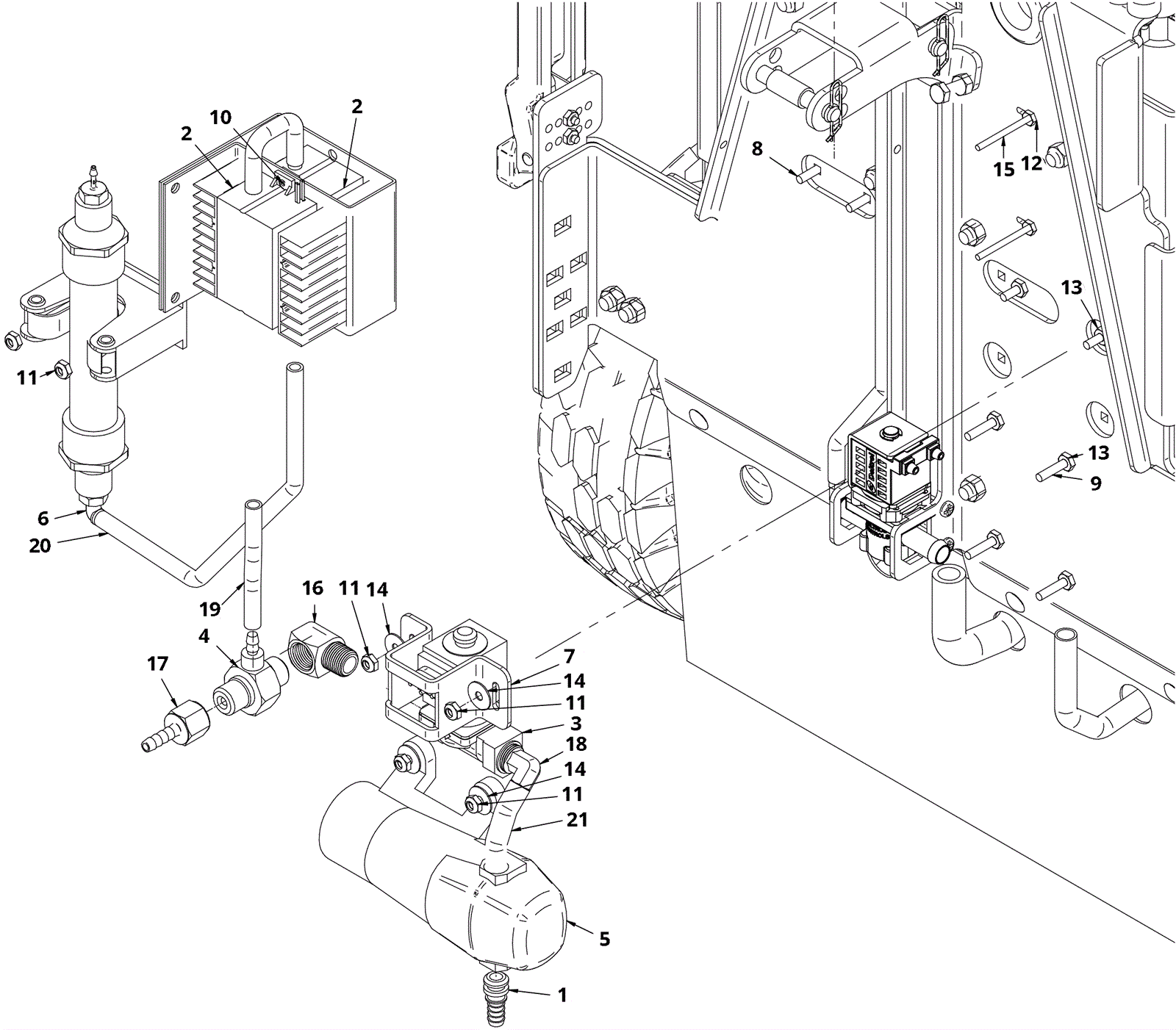

Mag-HD Zer03 Onboard Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5846 Port 3/8 HB Elbow $13.10 1 usually ships 3-11 days
2 202-5870 24VDC O3 Generator Assembly 100/mg $297.10 1 usually ships 3-11 days
3 202-4246 24V solution solenoid valve $243.60 1 ships same day
4 202-5892 Red Injector $244.10 1 usually ships 3-11 days
5 202-5895 Pump,12v, 35PSI, 1 GPM $322.40 1 usually ships 3-11 days
6 202-5903 Air Dryer Assembly $169.94 1 usually ships 3-11 days
7 202-6068 Bracket, Valve $18.60 1 usually ships 3-11 days
8 999-1873 Bolt 10-32 x 3/4 carriage head stainless steel $2.24 1 usually ships 1-5 days
9 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel $1.97 1 usually ships 1-5 days
10 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 1 ships same day
11 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
12 999-0515 Nut 6-32 k-lock stainless steel $0.99 1 ships same day
13 202-2067 Nut 10-32 keps $5.00 2 usually ships 3-11 days
14 202-3316 Washer flat stainless steel $5.00 3 usually ships 3-11 days
15 999-6720 Screw #6-32 x 2 phillips pan head stainless steel $0.99 1 usually ships 11-24 days
16 202-9463 Elbow Fitting,3/8NPTx3/8FNPT $13.70 1 usually ships 3-11 days
17 202-9476 Fitting, 3/8 NPTF x 1/4 inch Barb $17.30 1 usually ships 3-11 days
18 202-5379 3/8 inch elbow $8.10 1 usually ships 3-11 days
19 202-4247 Hose 1/4 inch x 5 foot $41.70 1 usually ships 3-11 days
20 202-4247 Hose 1/4 inch x 5 foot $41.70 1 usually ships 3-11 days
21 202-4249 Hose 3/8 inch x 5 foot Call for price 1 usually ships 3-11 days
