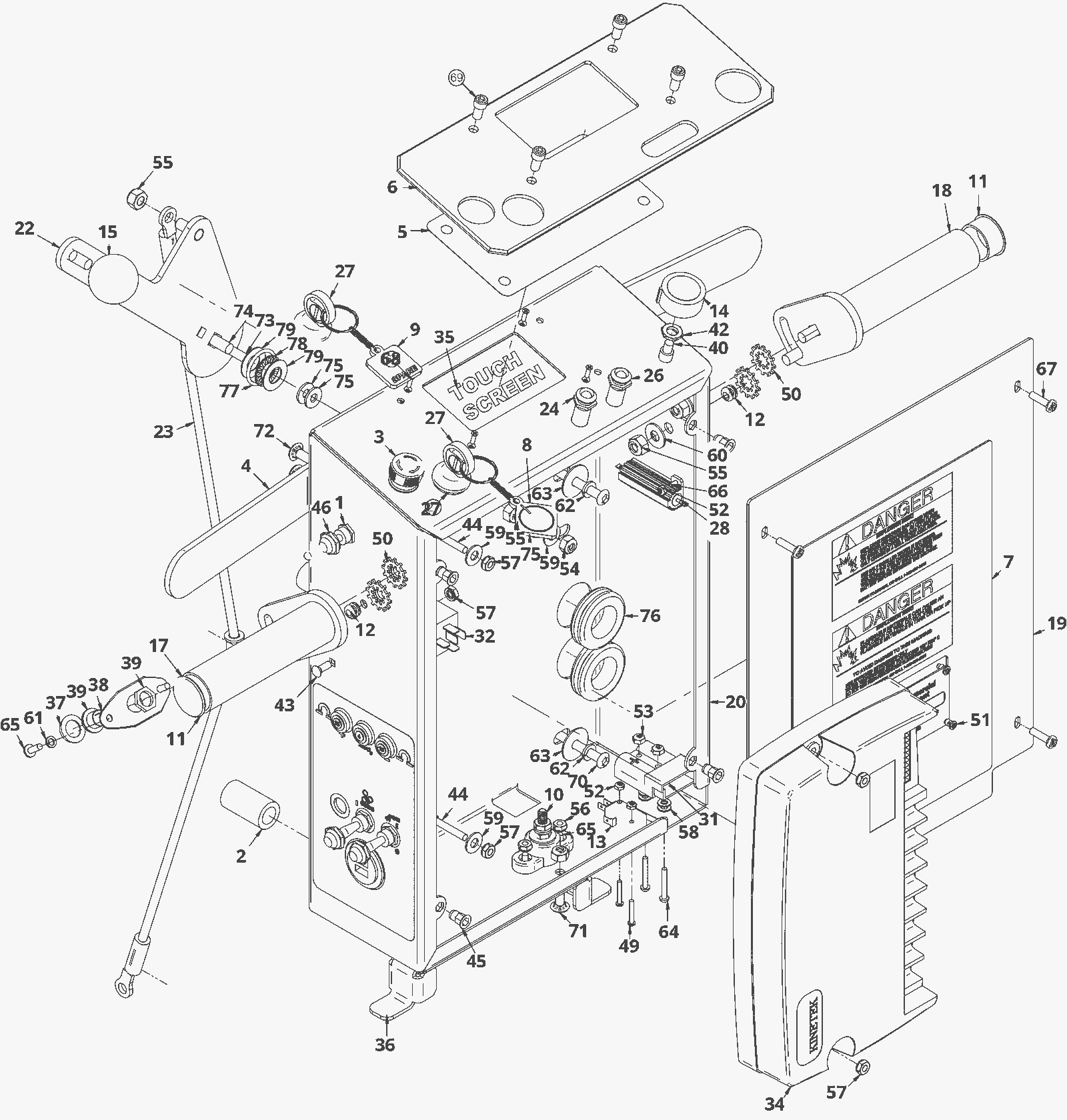

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5396
|
Toggle switch |
1 |
|
|
2 |
202-3468
|
Spacer |
4 |
|
|
3 |
202-4191
|
Emergency stop button |
1 |
|
|
4 |
202-6362
|
Guard, Hand |
2 |
|
|
5 |
202-3638
|
Touch screen protector |
1 |
|
|
6 |
202-3639
|
Control panel top (blue) |
1 |
|
|
7 |
202-3640
|
Side decal |
1 |
|
|
8 |
202-3622
|
Power keychain |
1 |
|
|
9 |
202-3697
|
Spare key fob |
1 |
|
|
10 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
11 |
202-2252
|
End cap |
2 |
|
|
12 |
202-1587
|
LED GROMMET |
1 |
|
|
13 |
202-0721
|
Microswitch |
1 |
|
|
14 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
15 |
202-0515
|
Solution flow control knob |
1 |
|
|
17 |
202-6994
|
Handlebar, Adjustable, LH |
1 |
|
|
18 |
202-6995
|
Handlebar, Adjustable, RH |
1 |
|
|
19 |
202-7014
|
Cover, Control Panel |
1 |
|
|
20 |
202-3641
|
Control panel (black) |
1 |
|
|
22 |
202-7050
|
Lever, Squeegee Lift |
1 |
|
|
23 |
202-7057
|
Lift Cable,Squeegee,Black 33 inch |
1 |
|
|
24 |
202-0832
|
Full recovery indicator (red) |
1 |
|
|
26 |
202-7203
|
Light,24V,Green,Bulb Style |
1 |
|
|
27 |
991-1634
|
Key (pkg of 2) |
2 |
|
|
28 |
202-7287
|
Resistor,Wirewound,8 OHM,50W |
1 |
|
|
31 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
32 |
202-0348
|
15amp relay |
1 |
|
|
34 |
202-8389
|
Controller, Touch Screen |
1 |
|
|
35 |
202-8390
|
LCD Touch Screen |
1 |
|
|
36 |
202-3635
|
Cord wrap |
1 |
|
|
37 |
202-3427
|
Button cover |
2 |
|
|
38 |
202-0869
|
Switch cover |
4 |
|
|
39 |
202-0879
|
Push button switch |
4 |
|
|
40 |
202-0535
|
Speed control potentiometer |
1 |
|
|
42 |
202-9136
|
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
|
43 |
202-3302
|
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
|
44 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
2 |
|
|
45 |
202-3601
|
Nut #10-32 hex crimp |
4 |
|
|
46 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
49 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
2 |
|
|
50 |
202-1133
|
Washer 5/16 internal/external star |
4 |
|
|
51 |
202-3315
|
Blind rivet |
4 |
|
|
52 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
8 |
|
|
53 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
2 |
|
|
54 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
7 |
|
|
55 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
56 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
2 |
|
|
57 |
202-2067
|
Nut 10-32 keps |
5 |
|
|
58 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
59 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
60 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
61 |
999-0998
|
Washer #10 flat stainless steel |
8 |
|
|
62 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
63 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
4 |
|
|
64 |
999-0520
|
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
|
65 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
10 |
|
|
66 |
202-2370
|
Screw 4-40 x 1/2 Phillips pan head stainless steel |
6 |
|
|
67 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
68 |
999-1993
|
Screw #4-40 x 3/8 flat head phillips |
4 |
|
|
69 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
4 |
|
|
70 |
999-1247
|
Screw 1/4-20 x 1 3/4 button head socket cap zinc plated |
4 |
|
|
72 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
|
73 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
|
74 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
|
75 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
3 |
|
|
76 |
202-2592
|
Grommet |
2 |
|
|
77 |
202-4245
|
Thrust bearing |
1 |
|
|
78 |
202-5232
|
Roller thrust bearing |
1 |
|
|
79 |
202-5233
|
Thrust bearing washer |
2 |
|
|
N/S |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
|
|
