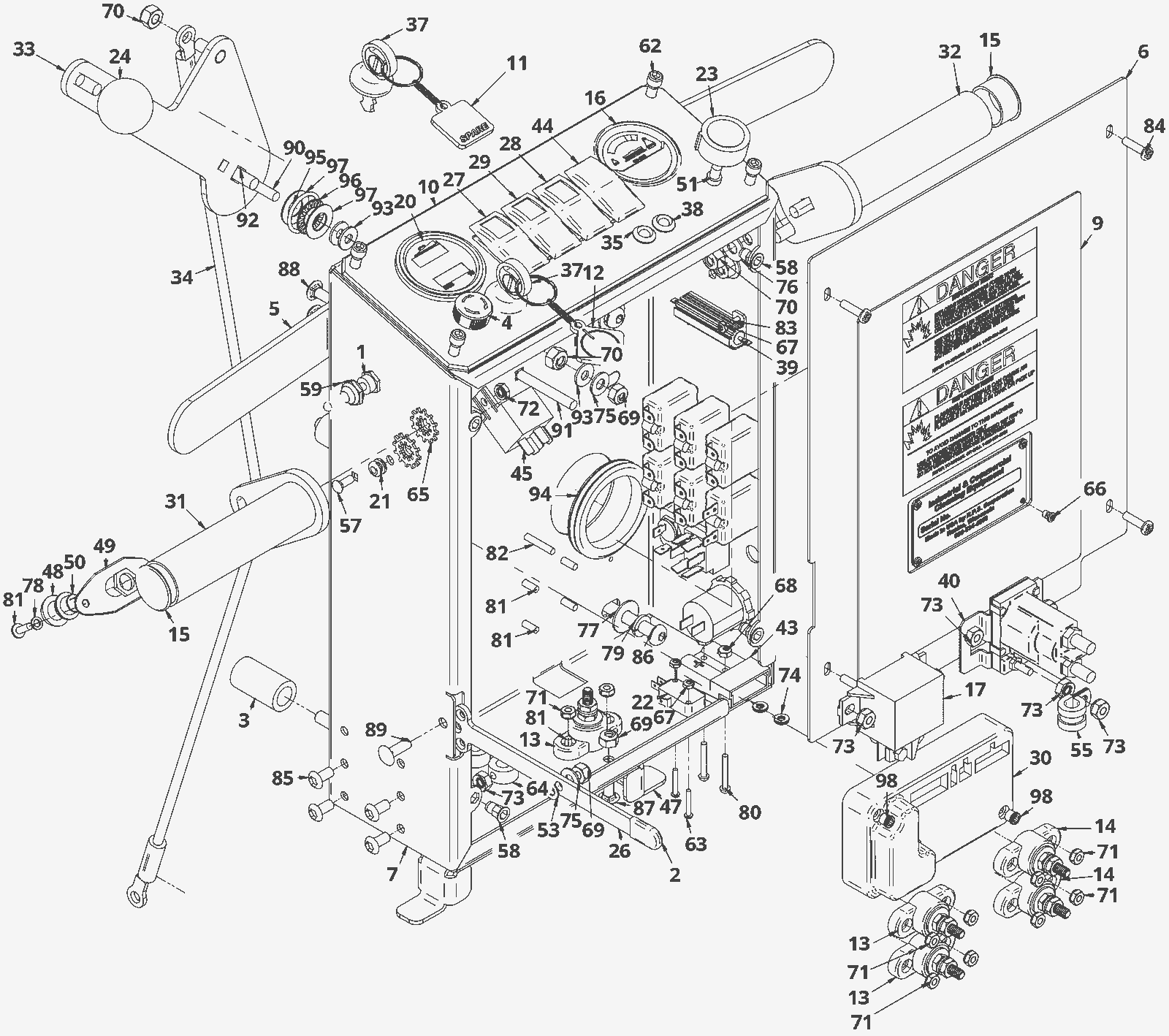

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5396
|
Toggle switch |
1 |
|
|
2 |
202-5386
|
Handle grip (blue) |
1 |
|
|
3 |
202-3468
|
Spacer |
4 |
|
|
4 |
202-4191
|
Emergency stop button |
1 |
|
|
5 |
202-6362
|
Guard, Hand |
2 |
|
|
6 |
202-3627
|
Control panel cover |
1 |
|
|
7 |
202-3628
|
Control box |
1 |
|
|
9 |
202-3626
|
Side decal |
1 |
|
|
10 |
202-3629
|
Control panel top (red) |
1 |
|
|
11 |
202-3622
|
Power keychain |
1 |
|
|
12 |
202-3622
|
Power keychain |
|
|
|
13 |
202-6396
|
Power Post, Black, 1/4 Terminal |
3 |
|
|
14 |
202-6397
|
Power Post, Red, 1/4 Terminal |
2 |
|
|
15 |
202-2252
|
End cap |
2 |
|
|
16 |
202-4159
|
40amp brush pressure gauge |
1 |
|
|
17 |
202-4165
|
24V 50amp relay |
1 |
|
|
20 |
202-5609
|
36V battery/hour meter |
1 |
|
|
21 |
202-1587
|
LED GROMMET |
2 |
|
|
22 |
202-0721
|
Microswitch |
1 |
|
|
23 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
24 |
202-0515
|
Solution flow control knob |
1 |
|
|
26 |
202-3630
|
Valve lever |
1 |
|
|
27 |
202-3631
|
Rocker switch (amber) |
1 |
|
|
28 |
202-3632
|
Rocker switch (green) |
1 |
|
|
29 |
202-3633
|
Rocker switch (blue) |
1 |
|
|
30 |
202-3634
|
Drive controller |
1 |
|
|
31 |
202-6994
|
Handlebar, Adjustable, LH |
1 |
|
|
32 |
202-6995
|
Handlebar, Adjustable, RH |
1 |
|
|
33 |
202-7050
|
Lever, Squeegee Lift |
1 |
|
|
34 |
202-7057
|
Lift Cable,Squeegee,Black 33 inch |
1 |
|
|
35 |
202-0832
|
Full recovery indicator (red) |
1 |
|
|
37 |
991-1634
|
Key (pkg of 2) |
2 |
|
|
38 |
202-7204
|
Light,24V,Yellow,Bulb Style |
1 |
|
|
39 |
202-7287
|
Resistor,Wirewound,8 OHM,50W |
1 |
|
|
40 |
202-5253
|
24V relay |
1 |
|
|
43 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
44 |
202-0369
|
2 position rocker switch |
1 |
|
|
45 |
202-0348
|
15amp relay |
1 |
|
|
47 |
202-3635
|
Cord wrap |
1 |
|
|
48 |
202-3427
|
Button cover |
2 |
|
|
49 |
202-0869
|
Switch cover |
4 |
|
|
50 |
202-0879
|
Push button switch |
4 |
|
|
51 |
202-0535
|
Speed control potentiometer |
1 |
|
|
53 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
1 |
|
|
55 |
202-9128
|
Clamp,Loop,1/2 inch,Rubber |
1 |
|
|
57 |
202-3302
|
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
|
58 |
202-3601
|
Nut #10-32 hex crimp |
4 |
|
|
59 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
62 |
999-0435
|
Screw 1/4-20 x 5/8 socket head alloy plain finish |
4 |
|
|
63 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
2 |
|
|
64 |
202-2964
|
Shaft collar |
4 |
|
|
65 |
202-1133
|
Washer 5/16 internal/external star |
4 |
|
|
66 |
202-3315
|
Blind rivet |
4 |
|
|
67 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
4 |
|
|
68 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
2 |
|
|
69 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
70 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
71 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
10 |
|
|
72 |
202-2067
|
Nut 10-32 keps |
1 |
|
|
73 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
10 |
|
|
74 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
75 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
76 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
77 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
78 |
999-0998
|
Washer #10 flat stainless steel |
8 |
|
|
79 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
80 |
999-0520
|
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
|
81 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
18 |
|
|
82 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
83 |
202-2370
|
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
|
84 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
85 |
202-3109
|
Screw 1/4 x 5/8 button head socket stainless steel |
4 |
|
|
86 |
999-1854
|
Screw 5/16 18 x 2 button head socket cap stainless steel |
4 |
|
|
88 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
|
89 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
90 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
|
91 |
999-0605
|
Screw 1/4-20 x 2 carriage head stainless steel |
1 |
|
|
92 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
|
93 |
999-0563
|
Washer 1/4 x 1/16 flat nylon |
3 |
|
|
94 |
202-3636
|
Grommet |
1 |
|
|
95 |
202-4245
|
Thrust bearing |
1 |
|
|
96 |
202-5232
|
Roller thrust bearing |
1 |
|
|
97 |
202-5233
|
Thrust bearing washer |
2 |
|
|
98 |
202-5233
|
Thrust bearing washer |
2 |
|
|
