| # | Part | Description |
Req | Notes | Availability |
|---|

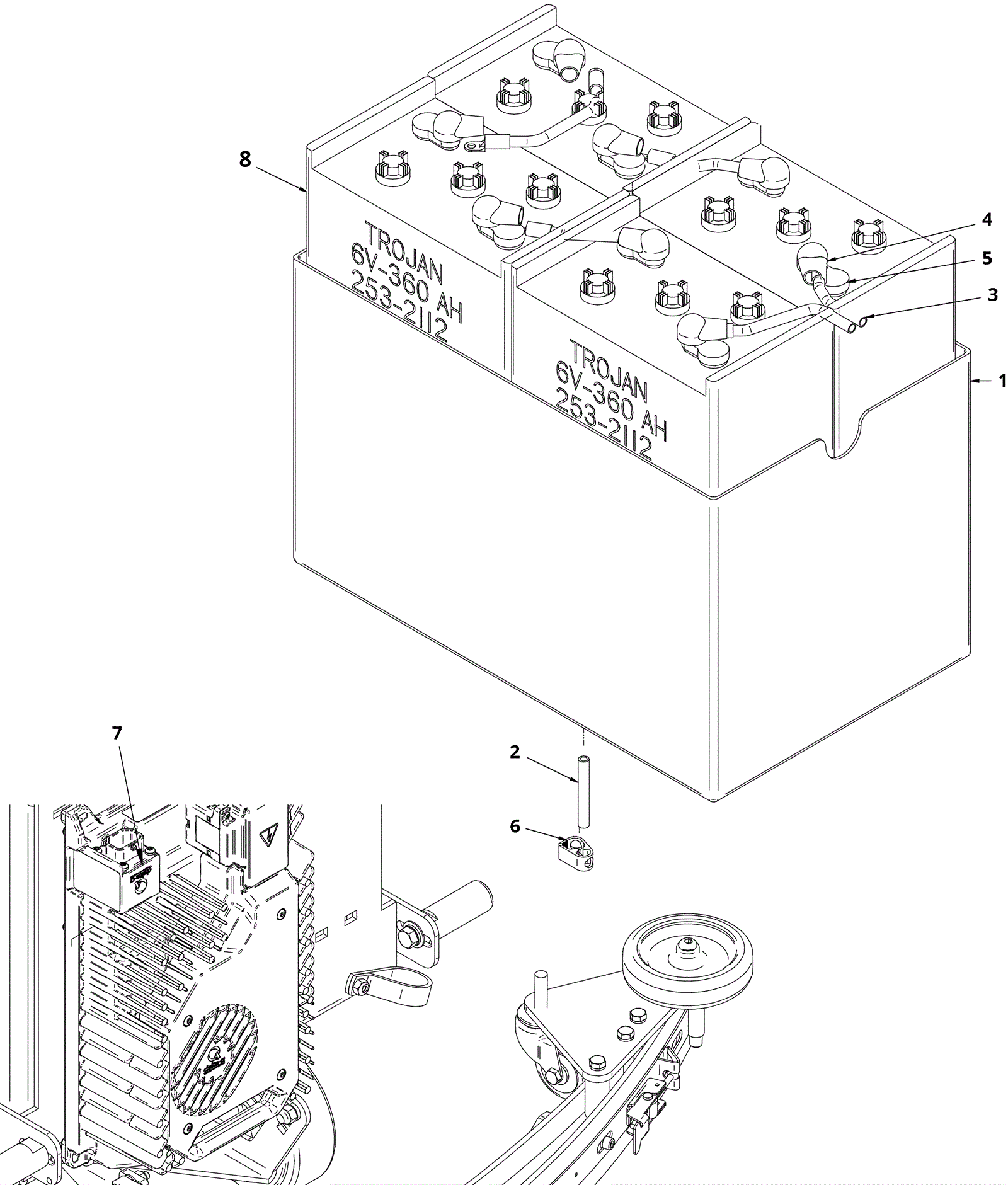

1 |
202-3477
|
Battery tray 14 x 24 x 14 inch |
1 |
|
|
2 |
202-3473
|
3 1/4 inch hose (black) |
1 |
|
|
3 |
202-3476
|
Wire harness assembly |
1 |
|
|
4 |
202-2850
|
Battery boot |
8 |
|
|
5 |
202-2849
|
Terminal cover |
8 |
|
|
6 |
202-3475
|
Clamp style pinch valve |
1 |
|
|
7a |
202-7023
|
Charger, Console, 24V,37A, Universal W/Red 50 |
1 |
|
|
7b |
202-5723
|
12V 27AH onboard charger |
1 |
|
|
8 |
162-0005
|
6V 305Ah wet battery (SNSR) |
4 |
|
|
