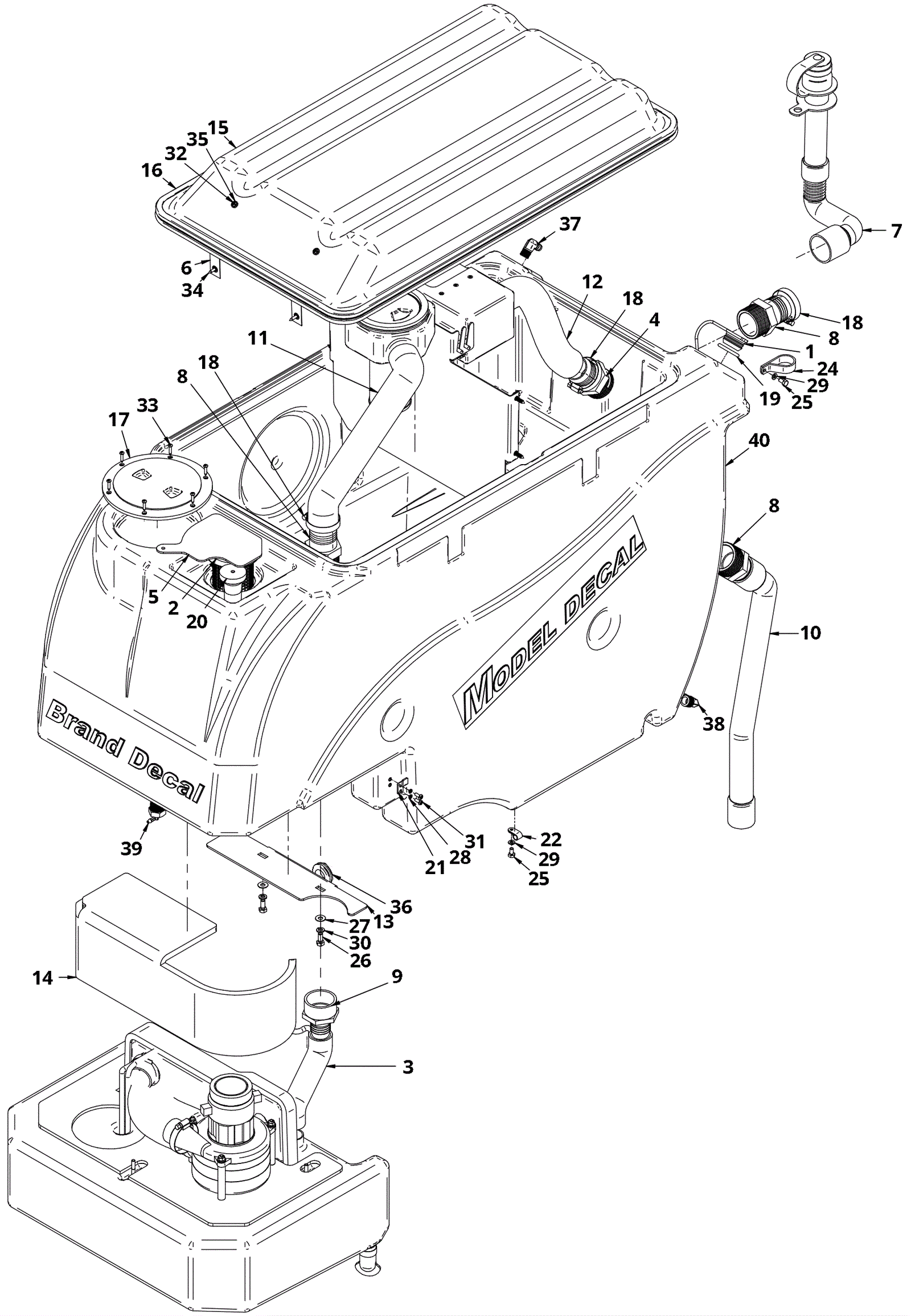

Small Tank Assembly

#PartDescription ReqNotesAvailability
1 202-3373 Drain hose cap 1
2 202-3036 Strainer screen 1
3 202-6302 Hose, Baffle to Tank 1
4 202-2025 Hosebarb 1
5 202-6360 Curtain, Splash 1
6 202-6381 Tank Lid Strap W/Grommets 2
7 202-3582 Drain hose assembly 1
8 202-2025 Hosebarb 3
9 202-2118 Hosebarb 1
10 202-3023 Squeegee vacuum hose 1
11 202-6941 Hose, Inner Tank 1
12 202-6941 Hose, Inner Tank 1
13 202-6956 Bracket, Tank Strap 1
14 202-6974 Soundeading Kit 1
15a 202-7001 Cover, Tinted, Complete 1
15b 202-3620 Steel lid 1
16 202-7034 Push-On Rubber Gasket For 264-1410 Lid 1
17 202-7054 Lid,Screw-On,Tank 1
18 997-2011 Hose clamp 3
19 202-4106 O-ring 1
20 202-4200 Fill hose 1
22 202-2189 Loop clamp rubber 1
24 202-3175 P clamp 1
25 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
26 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
27 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
28 999-0998 Washer #10 flat stainless steel 4
29 999-0632 Washer 1/4 split lock stainless steel 2
30 999-0553 Washer 5/16 medium split lock stainless steel 2
31 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4
32 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 2
33 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 6
34 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
35 202-3244 Neoprene washer 4
36 202-2592 Grommet 1
37 202-4100 Barbed elbow 3/8 x 1/2 inch 1
38 202-3440 Barbed elbow 2
39 202-9496 Elbow, 1/4 inch Barb x 3/4 inch NPT Black 1
40a 202-7047 TANK,SOLUTION/RECOVERY,GRANITE Standard tank 1
40b 202-7048 TANK,SOLUTION/RECOVERY,RED Standard tank 1
40c 202-3621 Small tank (green) 1
N/S 999-1269 Nut 10-32 nylon insert jam stainless steel 2
N/S 202-4234 Back cord tip 1
