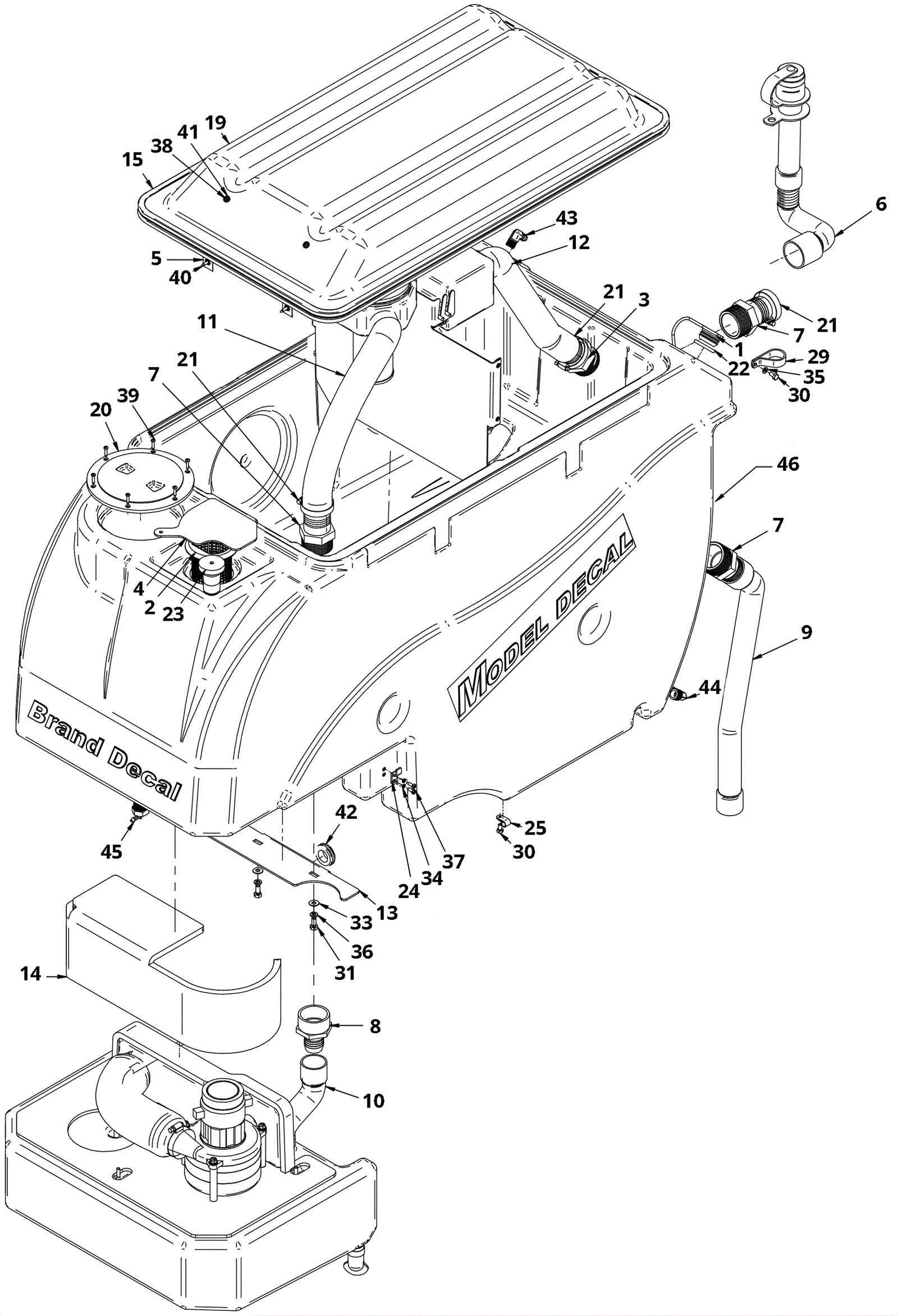

Standard XL Tank Assembly

#PartDescription ReqNotesAvailability
1 202-3373 Drain hose cap 1
2 202-3036 Strainer screen 1
3 202-2025 Hosebarb 1
4 202-6360 Curtain, Splash 1
5 202-6381 Tank Lid Strap W/Grommets 4
6 202-3582 Drain hose assembly 1
7 202-2025 Hosebarb 3
8 202-2118 Hosebarb 1
9 202-3023 Squeegee vacuum hose 1
10 202-4262 Bandeau to tank hose 1
11 202-6941 Hose, Inner Tank 1
12 202-6941 Hose, Inner Tank 1
13 202-6956 Bracket, Tank Strap 1
14 202-6974 Soundeading Kit 1
15 202-4267 Push on rubber gasket 1
19a 202-7000 Cover, Tinted, Complete 1
19b 202-2188 Cover stainless steel 1
20 202-7054 Lid,Screw-On,Tank 1
21 997-2011 Hose clamp 3
22 202-4106 O-ring 1
23 202-4200 Fill hose 1
25 202-2189 Loop clamp rubber 1
29 202-3175 P clamp 1
30 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 2
31 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
33 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
34 999-0998 Washer #10 flat stainless steel 4
35 999-0632 Washer 1/4 split lock stainless steel 2
36 999-0553 Washer 5/16 medium split lock stainless steel 2
37 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4
38 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 2
39 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 6
40 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
41 202-3244 Neoprene washer 4
42 202-2592 Grommet 1
43 202-4100 Barbed elbow 3/8 x 1/2 inch 1
44 202-3440 Barbed elbow 2
45 202-9496 Elbow, 1/4 inch Barb x 3/4 inch NPT Black 1
46a 202-7035 Tank,Solution/Recovery,Granite XL tank 1
46b 202-2190 Tank (red) 1
46c 202-2191 Tank (green) 1
N/S 202-2192 Kickstand (OBSOLETE) 1
N/S 202-2194 Tank lid bracket 1
N/S 999-1269 Nut 10-32 nylon insert jam stainless steel 2
N/S 999-1457 Bolt 5/16-18 x 5/8 round head carriage stainless steel 1
N/S 202-1163 Bolt 3/8 x 3/8 shoulder stainless steel 1
N/S 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
N/S 202-4234 Back cord tip 1
