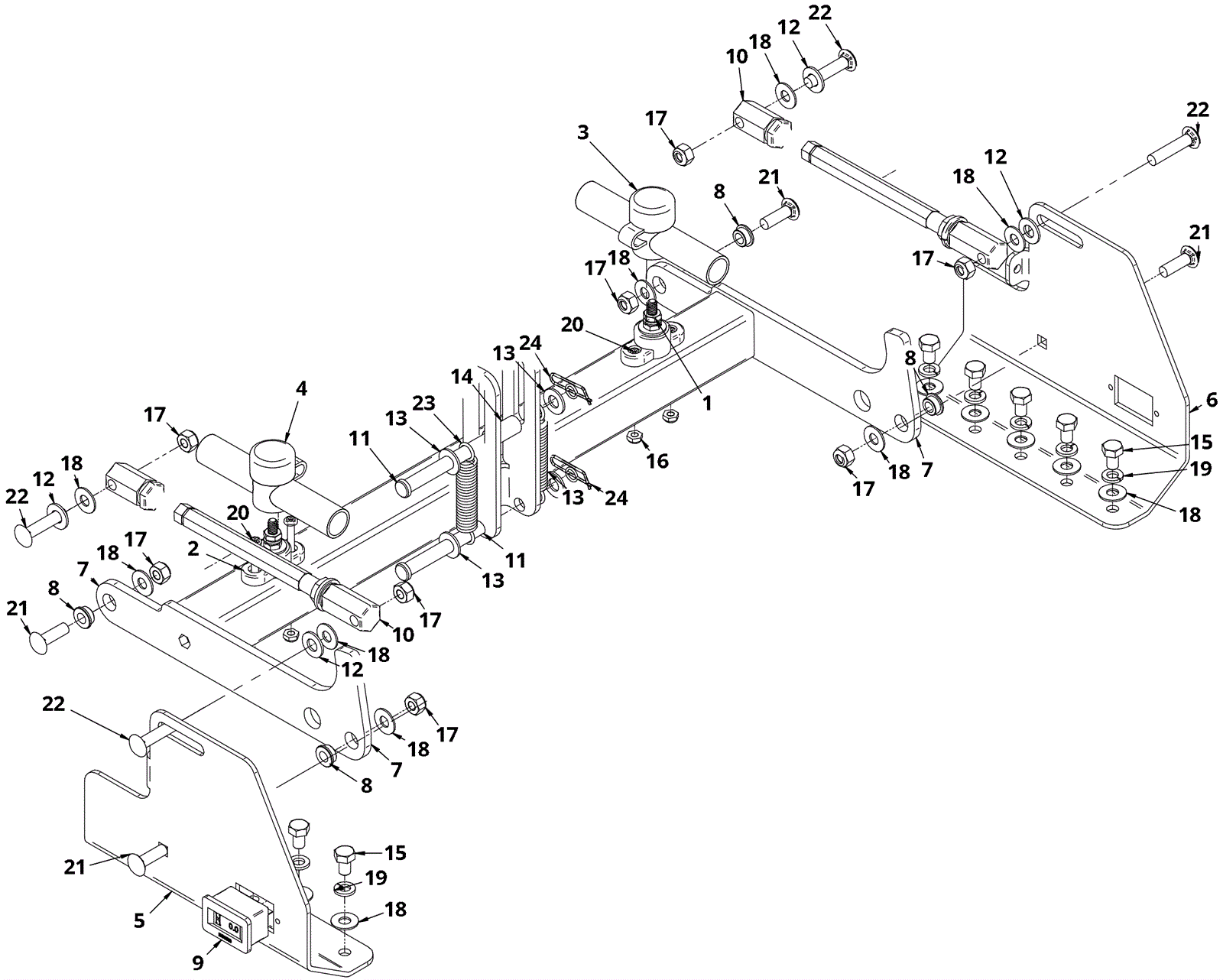

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
2 |
202-6397
|
Power Post, Red, 1/4 Terminal |
1 |
|
|
3 |
202-6400
|
Terminal Insulator, Black |
1 |
|
|
4 |
202-6401
|
Terminal Insulator, Red |
1 |
|
|
5 |
202-7088
|
Bracket. Deck Lifting, LH |
1 |
|
|
6 |
202-7089
|
Bracket, Deck Lifting, RH |
1 |
|
|
7 |
202-7092
|
Arm, Lateral, Disk/Edge |
1 |
|
|
8 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
9 |
202-0376
|
Hour meter |
1 |
|
|
10 |
202-5805
|
Body, Adjustable Lateral Arm |
2 |
|
|
11 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
2 |
|
|
12 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
4 |
|
|
13 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
4 |
|
|
14 |
202-1951
|
Sleeve |
1 |
|
|
15 |
999-0547
|
Bolt 5/16-18 x 1/2 hex head stainless steel |
10 |
|
|
16 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
18 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
18 |
|
|
19 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
10 |
|
|
20 |
999-1818
|
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
|
21 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
22 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
23 |
202-2187
|
Spring 3 1/4 x 9/16 inch |
2 |
|
|
24 |
202-2036
|
Cotter pin |
2 |
|
|
