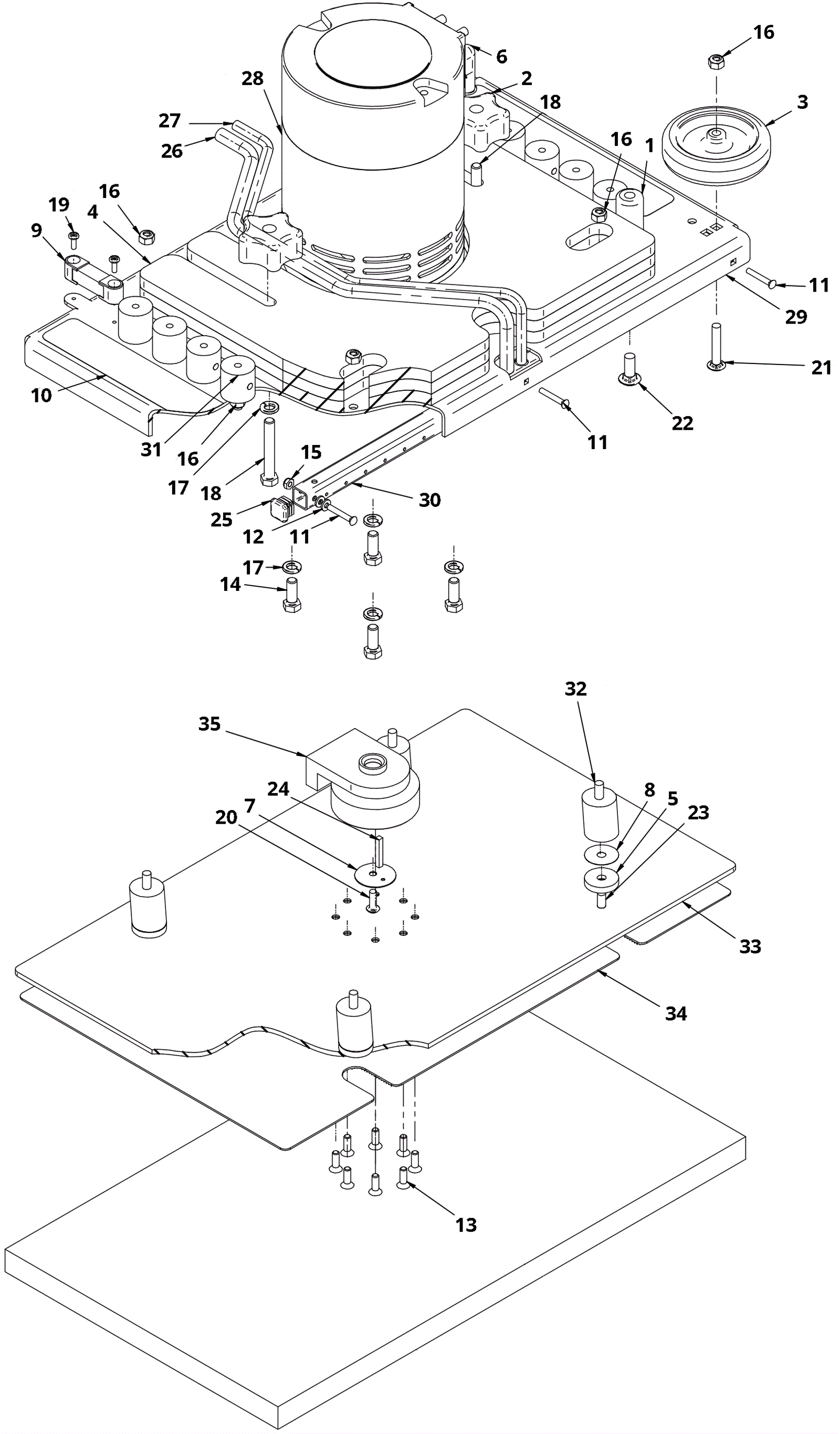

Orbital Deck Assembly

#PartDescription ReqNotesAvailability
1 202-5317 Female stud 2
2 202-5078 Star knob 2
3 202-5079 4 inch wheel 2
4 202-6410 Weight, 16.5 Lbs, Green 3
5 202-4230 Spacer 4
6 202-2961 Terminal cover (black) 2
7 202-5084 Crush washer 1
8 202-2177 Isolator shield 4
9 202-5098 2 inch bolt on level 2
10 202-9089 Decal, Edge, 24 inch 2
11 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel 3
12 999-1874 Washer #10 nylon flat 6
13 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 8
14 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
15 999-0086 Nut 10-32 nylon insert lock zinc plated 3
16 999-0423 Nut 5/16-18 nylon insert lock stainless steel 16
17 999-0659 Washer 3/8 medium split lock stainless steel 6
19 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 4
20 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 1
21 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel 2
22 202-2832 Bolt 3/8 - 16 x 1 carriage head stainless steel 2
23 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel 4
24 202-0140 Steering shaft key 1
25 202-9545 Plug,Square,3/4 inch,Black 2
26 202-4226 Solution hose 1
27 202-4227 Hose 1
28a 202-5531 24V 1 HP motor 1 (standard)
28b 202-5354 24V 1.2 HP motor 1 (optional)
29a 202-2178 20 inch sqaure head deck 1
29b 202-5529 24 inch square deck 1
29c 202-7031 Kit, Deck, Square Head, SS, 28 inch 1
30a 202-5527 20 inch feed tube kit 1
30b 202-5530 24 inch feed tube kit 1
30c 202-5093 28 inch solution feed tube 1
31 202-4228 Rubber isolator kit 1
32 202-2180 Isolator kit 1
33a 202-2181 20 inch driver plate aluminum 1
33b 202-2182 24 inch driver plate aluminum 1
33c 202-2183 28 inch driver plate aluminum 1
34a 202-5089 Mighty-Lok II grip face pad holder set (brown) 1
34b 202-2184 24 inch grip face 1
34c 202-2185 28 inch grip face 1
35 202-2186 Eccentric kit 1
