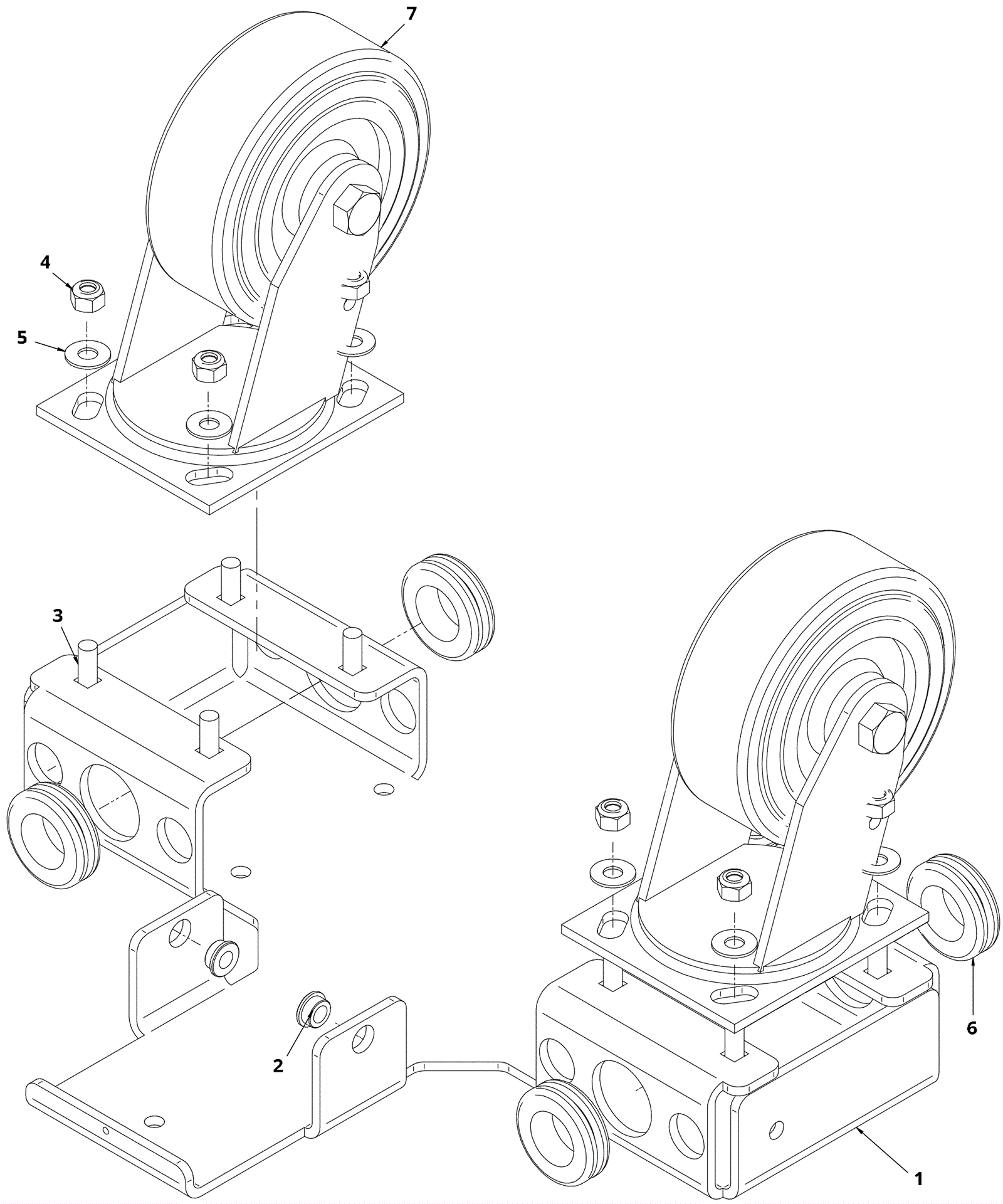

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
202-6999
|
Caster Foot |
1 |
|
|
1b |
202-6998
|
Caster Foot |
1 |
(for mild steel) |
|
2 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
2 |
|
|
3 |
202-9155
|
Bolt,Carriage,5/16-18x7/8 inch |
8 |
|
|
4 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
|
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
|
6 |
202-2592
|
Grommet |
4 |
|
|
7a |
202-3405
|
5 inch caster wheel (solid gray) |
1 |
(standard |
|
7b |
202-3367
|
5 inch caster wheel (soft gray) |
1 |
(optional) |
|
