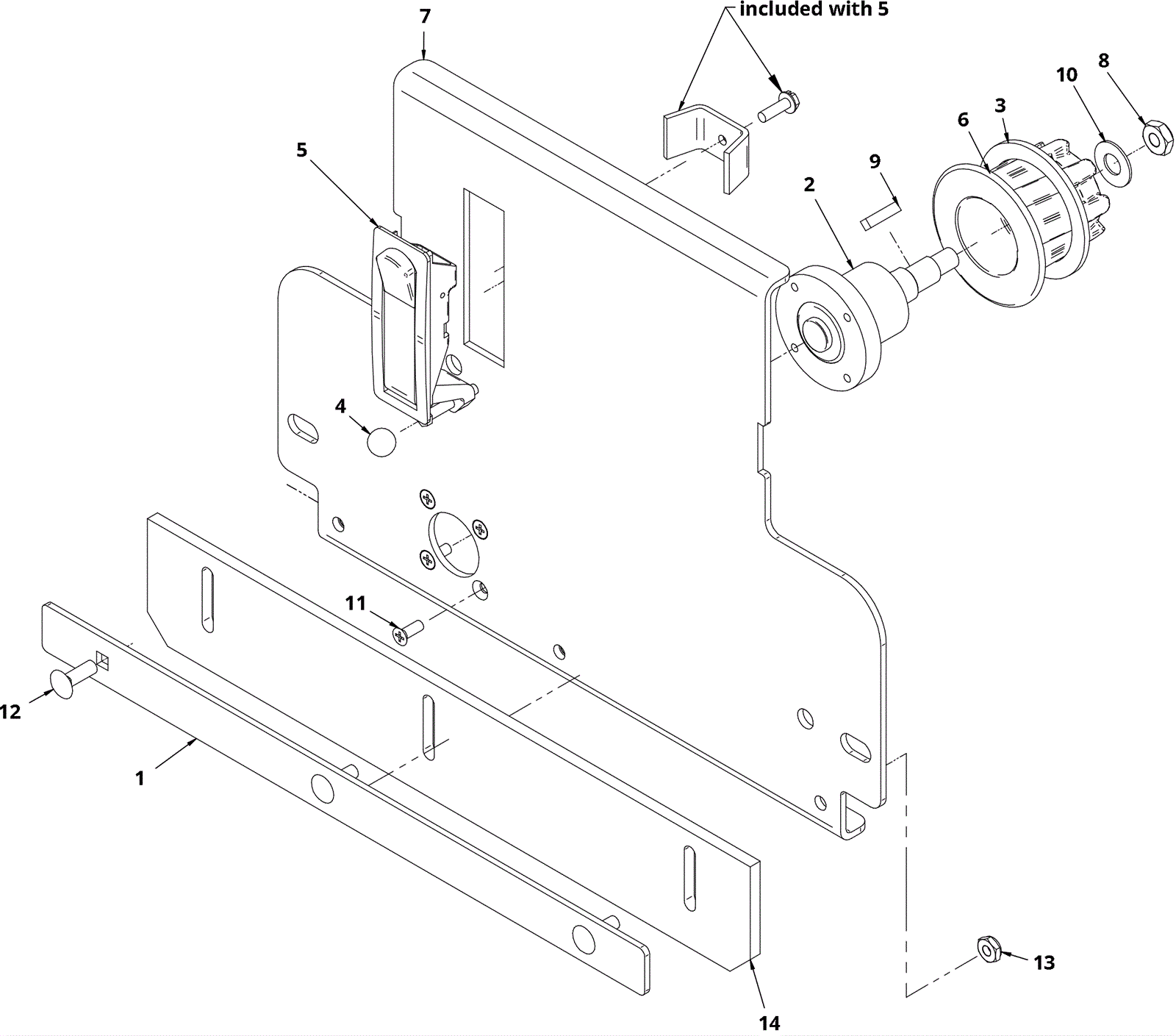

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-7075
|
Band, Wiper |
1 |
|
|
2 |
202-3168
|
Idler drive bearing |
1 |
|
|
3 |
202-7788
|
Seal,Cylindrical Driver |
1 |
|
|
4 |
202-3170
|
Grommet |
1 |
|
|
5 |
202-0404
|
Latch |
1 |
|
|
6 |
202-8374
|
Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket |
1 |
|
|
7 |
202-2176
|
Drive cover |
1 |
|
|
8 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
|
9 |
202-3153
|
Square keyway |
1 |
|
|
10 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
11 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
4 |
|
|
12 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
3 |
|
|
13 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
3 |
|
|
14a |
202-7073
|
Wiper, Cylindrical, linatex |
1 |
|
|
14b |
202-7072
|
Wiper, Cylindrical, Gum |
1 |
|
|
14c |
202-7074
|
Wiper, Cylindrical, Urethane |
1 |
|
|
