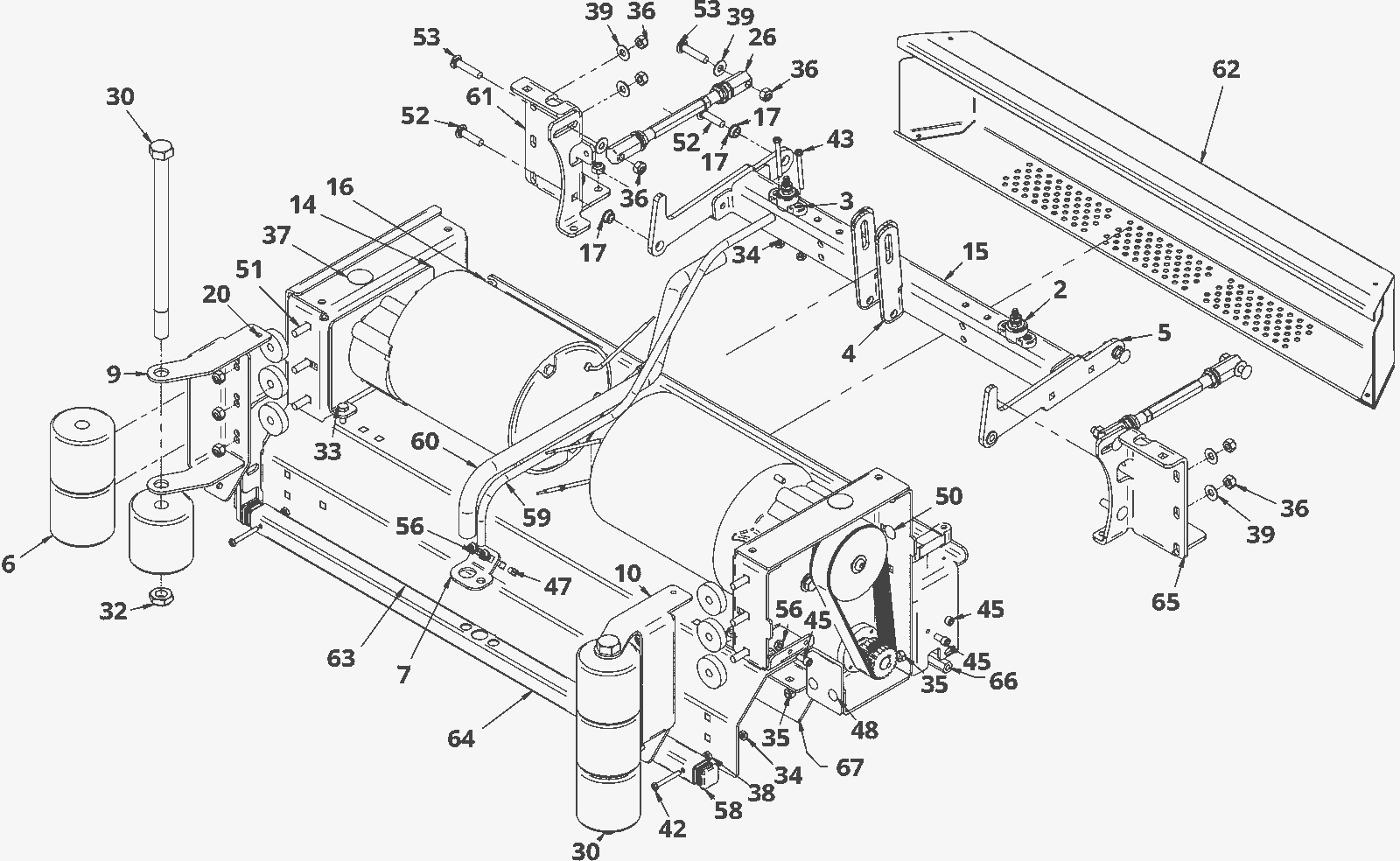

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
3 |
202-6397
|
Power Post, Red, 1/4 Terminal |
1 |
|
|
4 |
202-2161
|
Left arm center bracket |
1 |
|
|
5 |
202-2162
|
Cylindrical lateral arm |
2 |
|
|
6 |
202-0756
|
Guide roller |
6 |
|
|
7 |
202-4022
|
Quick disconnect bracket |
1 |
|
|
9 |
202-6971
|
Bracket, Roller |
1 |
|
|
10 |
202-6971
|
Bracket, Roller |
1 |
|
|
14 |
202-7071
|
Bracket, Motor Adjustment |
2 |
|
|
15 |
202-2163
|
Lift arm cross bar |
1 |
|
|
16 |
202-5098
|
2 inch bolt on level |
2 |
|
|
17 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
20 |
202-0151
|
Grommet |
6 |
|
|
26 |
202-4224
|
Adjustable lateral arm |
2 |
|
|
30 |
202-4038
|
Screw 5/8-11 x 10 hex head |
2 |
|
|
32 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
|
33 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
34 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
6 |
|
|
35 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
24 |
|
|
36 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
22 |
|
|
37 |
202-2244
|
Hole plug 7/8 |
2 |
|
|
38 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
39 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
12 |
|
|
42 |
999-1631
|
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
|
43 |
999-1818
|
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
|
45 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
6 |
|
|
48 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
20 |
|
|
50 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
8 |
|
|
51 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
6 |
|
|
52 |
999-0919
|
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
|
53 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
56 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
7 |
|
|
58 |
202-5471
|
Square plug |
2 |
|
|
59 |
202-4225
|
Hose |
1 |
|
|
60 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
61a |
202-7083
|
Bracket, Cylindrical Lifting, RH, 25 inch |
1 |
|
|
61b |
202-7085
|
Bracket, Cylindrical Lifting, RH, 29 inch |
1 |
|
|
61c |
202-7087
|
Bracket, Cylindrical Lifting, RH, 33 inch |
1 |
|
|
62a |
202-7044
|
Hopper, 25 inch, SS |
1 |
|
|
62b |
202-7045
|
Hopper, 29 inch, SS |
1 |
|
|
62c |
202-7046
|
Hopper, 33 inch, SS |
1 |
|
|
63a |
202-7041
|
Brushhead, Cylindrical, 25 inch, SS |
1 |
|
|
63b |
202-7042
|
Brushhead, Cylindrical, 29 inch, SS |
1 |
|
|
63c |
202-7043
|
Brushhead, Cylindrical, 33 inch, SS |
1 |
|
|
64a |
202-2164
|
25 inch cylindrical feed tube |
1 |
|
|
64b |
202-2165
|
29 inch cylindrical feed tube |
1 |
|
|
64c |
202-2166
|
33 inch cylindrical feed tube |
1 |
|
|
65a |
202-7082
|
Bracket, Cylindrical Lifting, LH, 25 inch |
1 |
|
|
65b |
202-7084
|
Bracket, Cylindrical Lifting, LH, 29 inch |
1 |
|
|
65c |
202-7086
|
Bracket, Cylindrical Lifting, LH, 33 inch |
1 |
|
|
66a |
202-2167
|
29 inch stiffener stainless steel |
1 |
|
|
66b |
202-2168
|
33 inch stiffener stainless steel |
1 |
|
|
66c |
202-2169
|
37 inch stiffener stainless steel |
1 |
|
|
67a |
202-2170
|
29 inch attinuator |
1 |
|
|
67b |
202-2171
|
33 inch attinuator |
1 |
|
|
67c |
202-2172
|
37 inch attinuator |
1 |
|
|
N/S |
202-2173
|
Side support |
1 |
|
|
N/S |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
